8-3-6 Upper eTower Front Cover Replacement Procedure
8-3-6-1 Tools
Appropriate Phillips screwdriver
8-3-6-2 Time Required
5 min
8-3-6-3 Preparations
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the On/Off power switch is set to Off.
3.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-3-6-4 Upper eTower Front Cover Removal Procedure
1) Remove all accessories.
2) Remove the following covers: RS Probe Cover, Lower Front eTower cover, Right Side eTower
Cover and Left Side eTower Cover:.
3) Remove the Upper eTower Cover.
4.) Release the two Phillips screws and remove the Printer Insert Cover or Printer Frame Cover
(depending on system configuration) to separate it from the Upper eTower Front Cover.
FRU Part #
Refer to Table 9-8 on page 9-7.
• Accessories - Replacement Procedures
• RS Probe Cover Removal Procedure
• Lower Front eTower Cover Removal Procedure
• Right Side eTower Cover Removal Procedure
• Left Side eTower Cover Removal Procedure

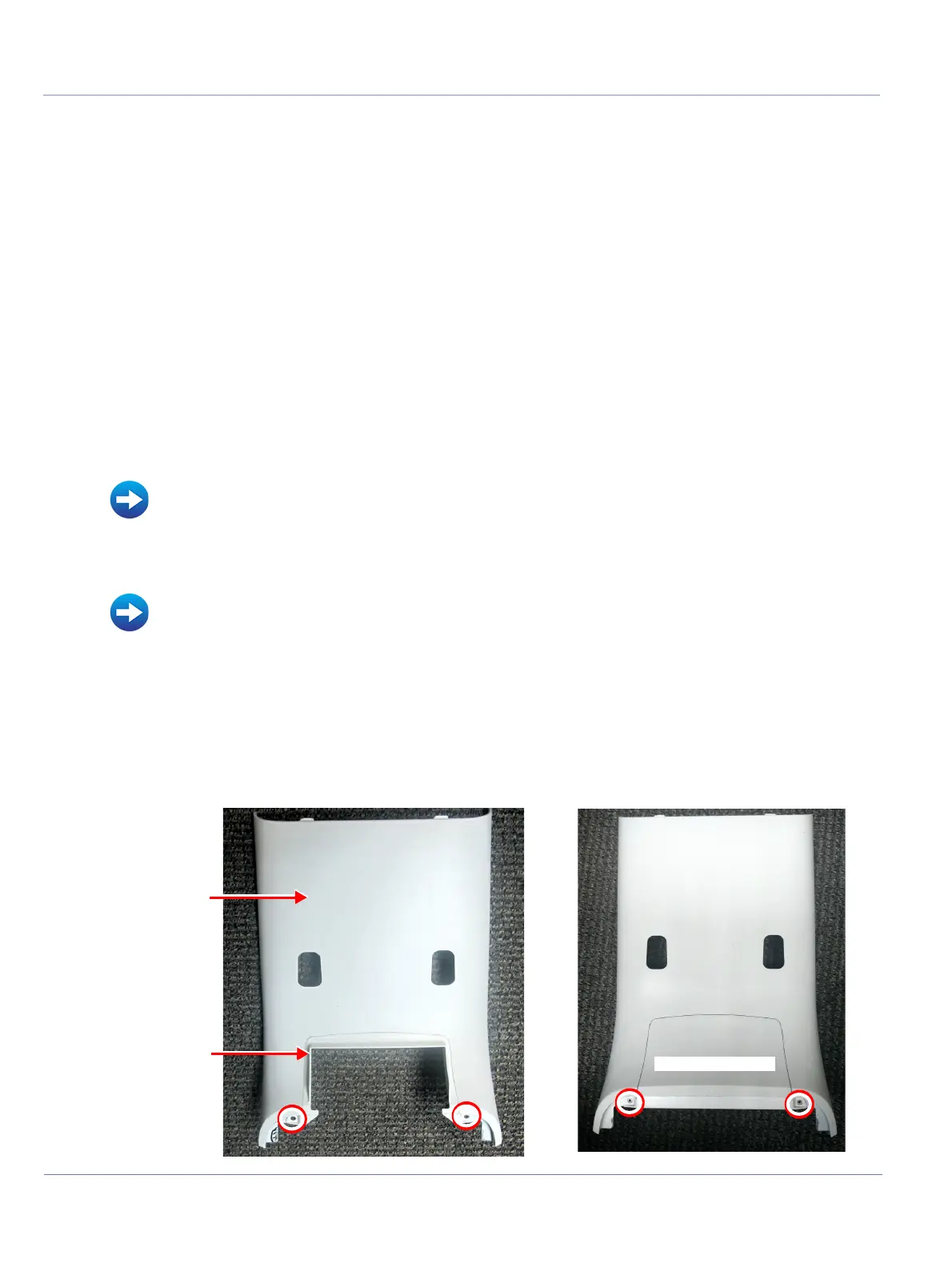

Figure 8-6 Removing Upper eTower Front Cover
..
Upper eTower Cover
..
Printer Insert Cover
..
Printer Frame Cover
