8-160 Section 8-6 - Mechanical Parts- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-7-12 MPB To Peripherals Harness - FRU Cable Replacement Procedure
8-7-12-1 Tools
• Appropriate Phillips screwdriver
• Flat-head screwdriver
8-7-12-2 Time Required
15 min
8-7-12-3 Preparations
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the On/Off power switch is set to Off.
3.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-7-12-4 MPB To Peripherals Harness - FRU Cable Removal Procedure
1.) Perform MPB removal procedure.
2.) Release the cable from the plastic cable clips using a screwdriver
• MPB Module Removal Procedure

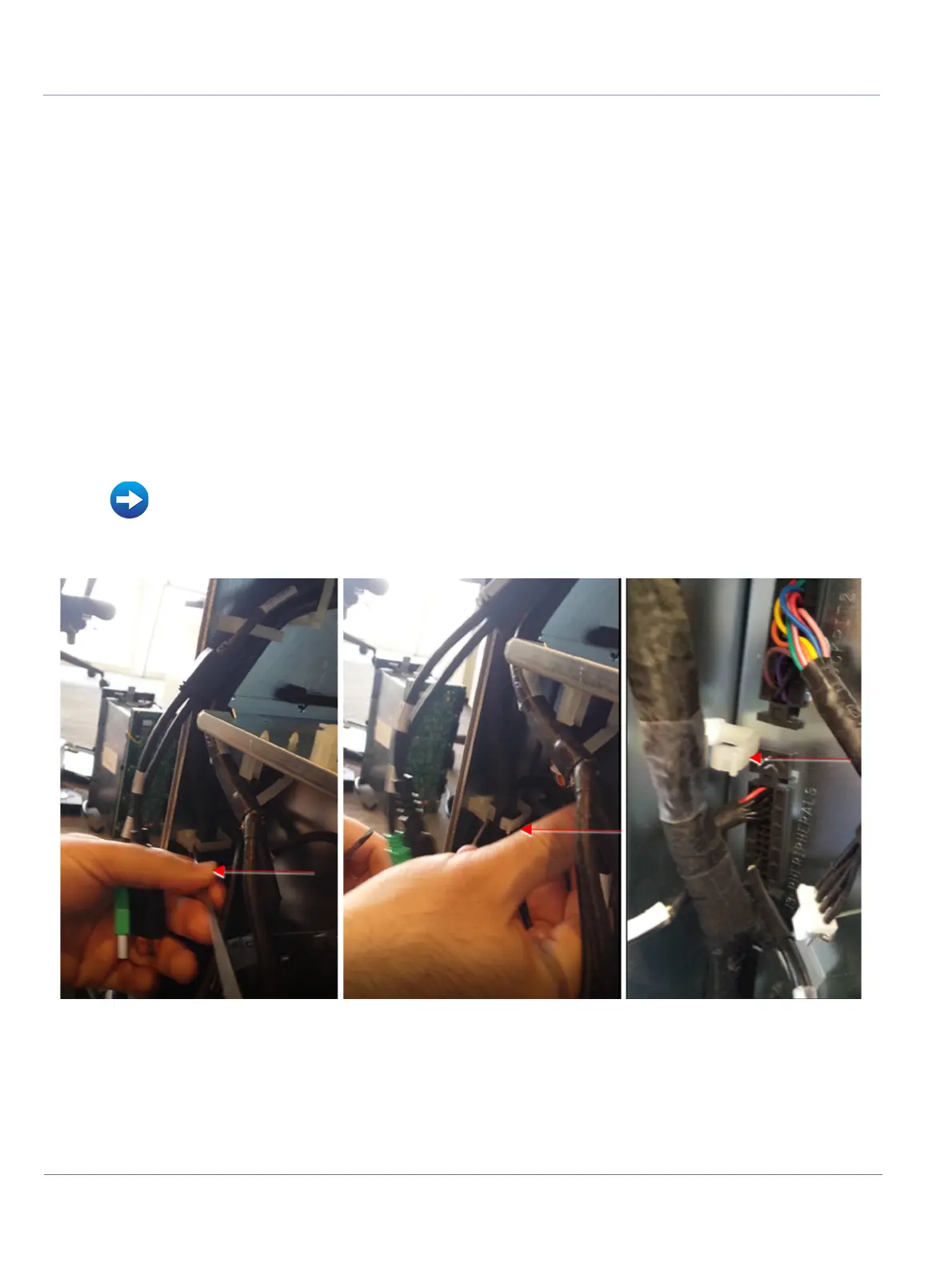

Figure 8-166 Disconnecting Cable Clips
