8-100 Section 8-6 - Mechanical Parts- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-6-8 MPB Blower (Fan) Replacement Procedure
8-6-8-1 Tools
Appropriate Phillips screwdriver
8-6-8-2 Time Required
10 min
8-6-8-3 Preparations
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the On/Off power switch is set to Off.
3.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-6-8-4 MPB Blower (Fan) Removal Procedure
1.) Remove all accessories.
2.) Remove the following covers: Lower Front eTower, Left side eTower, and Right Side eTower,
3) Remove MPB Front Metal Door.
4.) Disconnect MPB to BIB Control Cable from the fan cable connector.
FRU Part #
Refer to Table 9-7 on page 9-6.
• Accessories - Replacement Procedures
• RS Probe Cover Removal Procedure
• Lower Front eTower Cover Removal Procedure
• Left Side eTower Cover Removal Procedure
• Right Side eTower Cover Removal Procedure
• MPB Front Metal Door Removal Procedure

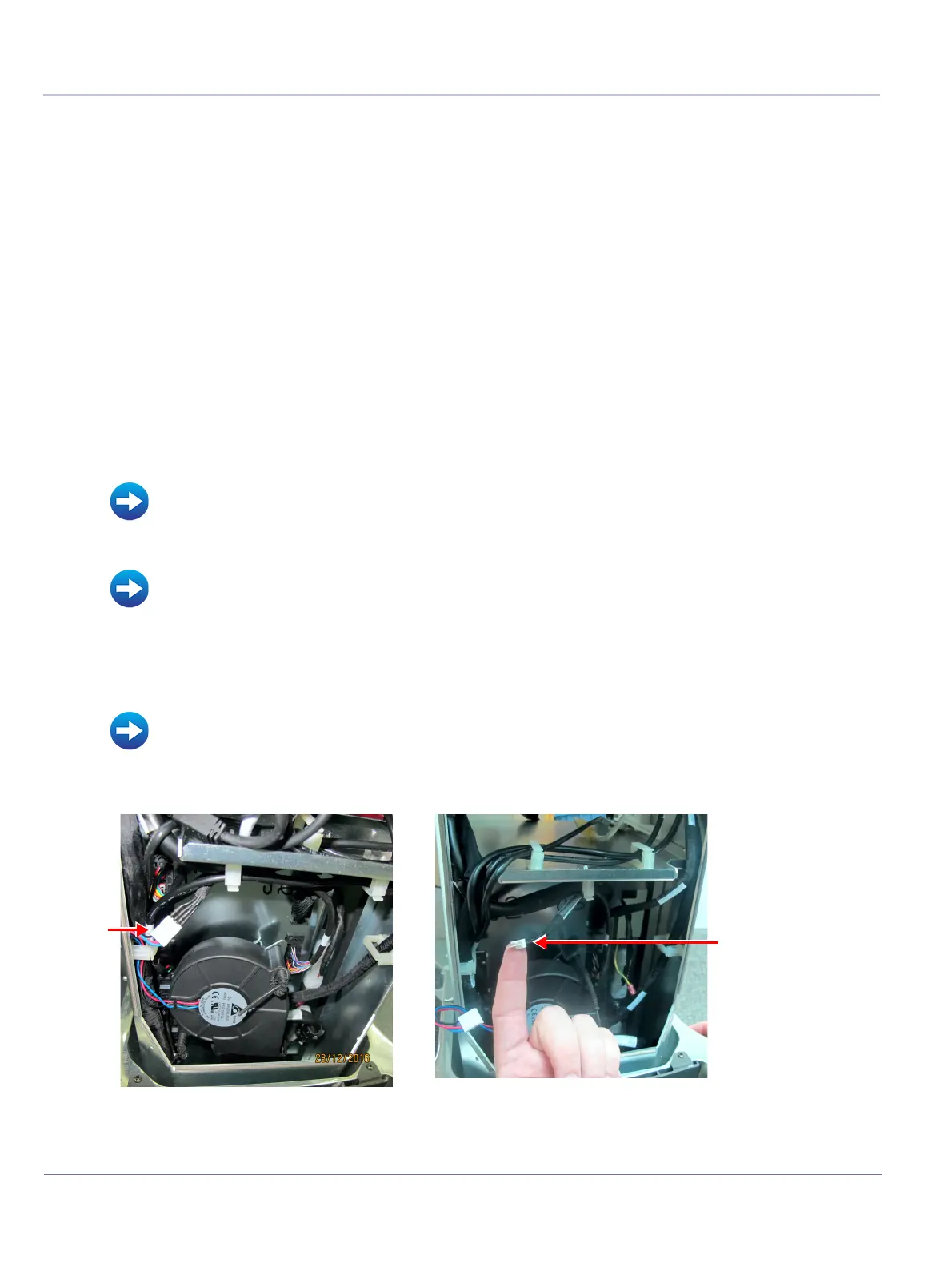

Figure 8-85 Disconnecting Fan Cable Connector
MPB to BIB
Control Cable
