Chapter 8 - Replacement Procedures 8-101

IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL

PRELIMINARY

5.) Loosen the elastic spring slings that hold the fan and carefully remove the MPB fan.

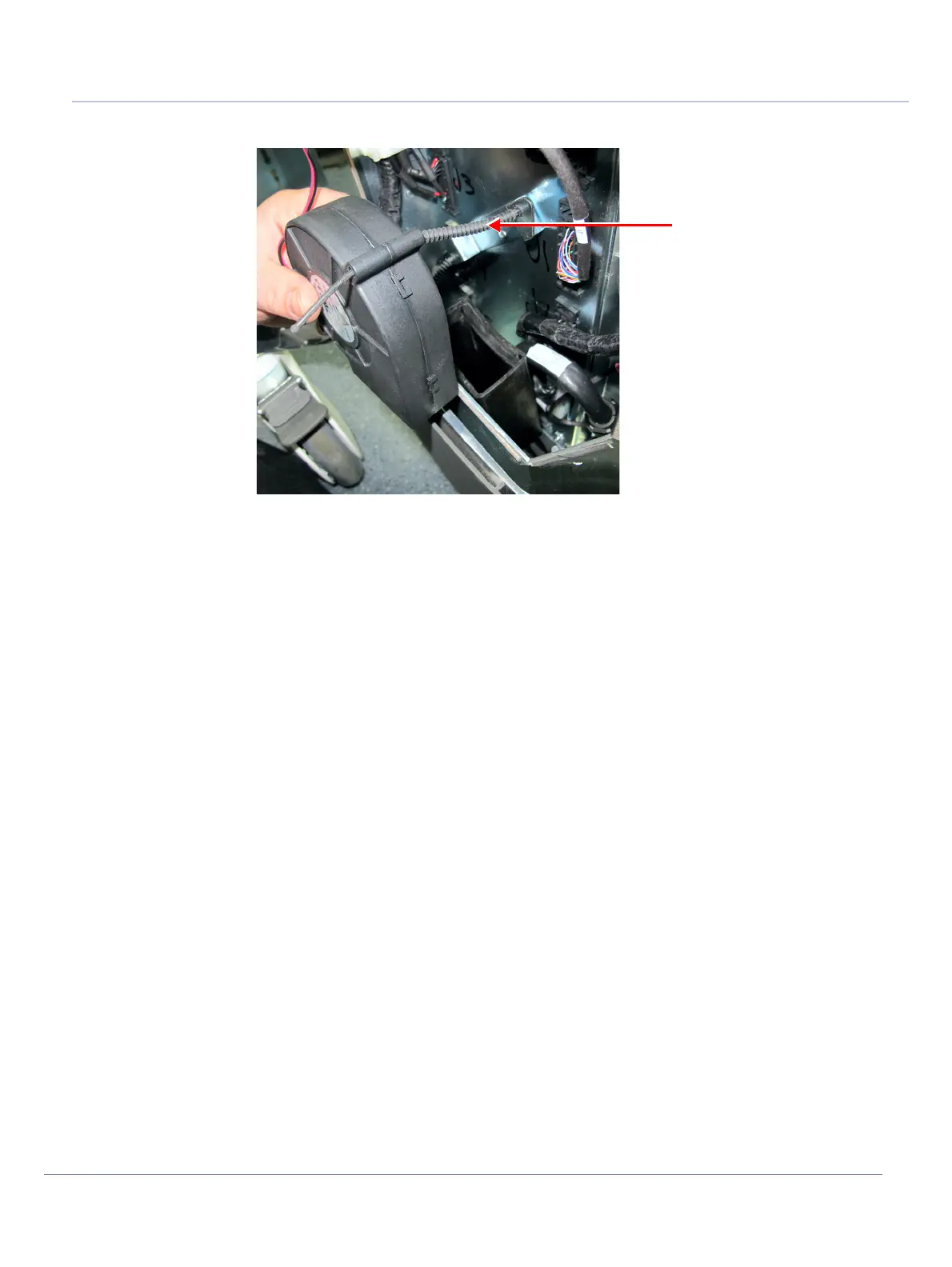

Figure 8-86 Removing the MPB Fan

Elastic

spring sling
