IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
3-24 Section 3-5 - Completing the Setup
PRELIMINARY
3-5-5 Connecting Probes
3-5-5-1 Introduction to Connecting Probes
Probes can be connected or changed any time, as described below, regardless of whether the system
is powered ON or OFF.
The Venue™ has four RS connectors.

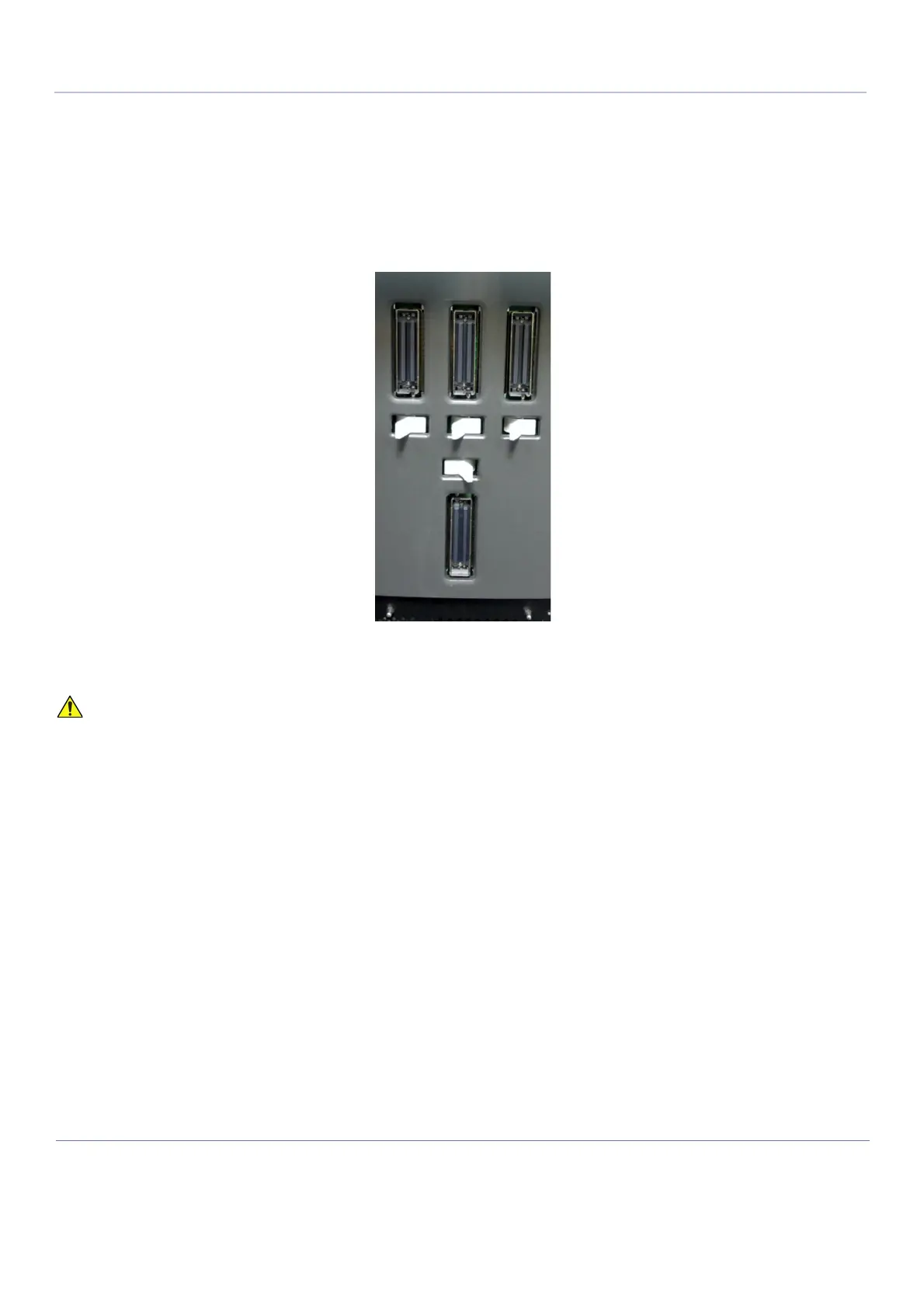

Figure 3-25 Probe Connectors on Venue™ Front End Door
HANDLE THE PROBE GENTLY WHILE CONNECTING AND DISCONNECTING.
DO NOT TOUCH THE PATIENT AND ANY OF THE CONNECTORS ON THE ULTRASOUND UNIT
SIMULTANEOUSLY, INCLUDING ULTRASOUND PROBE CONNECTORS.
