8-7-4 PSU to MPB DC Docking Cable Replacement Procedure
8-7-4-1 Tools
• Appropriate Phillips screwdriver
• Flat screwdriver.
8-7-4-2 Time Required
15 min
8-7-4-3 Preparations
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the On/Off power switch is set to Off.
3.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-7-4-4 PSU to MPB DC Docking Cable Removal Procedure
1.) Remove all accessories.
2.) Remove the MPB module.
3.) Remove the fan.
4.) Disconnect J8 to lower PSU connectors (see connectors' diagram below):
Refer to Table 9-14 on page 9-14.
• Accessories - Replacement Procedures
• MPB Module Removal Procedure
• MPB Blower (Fan) Removal Procedure

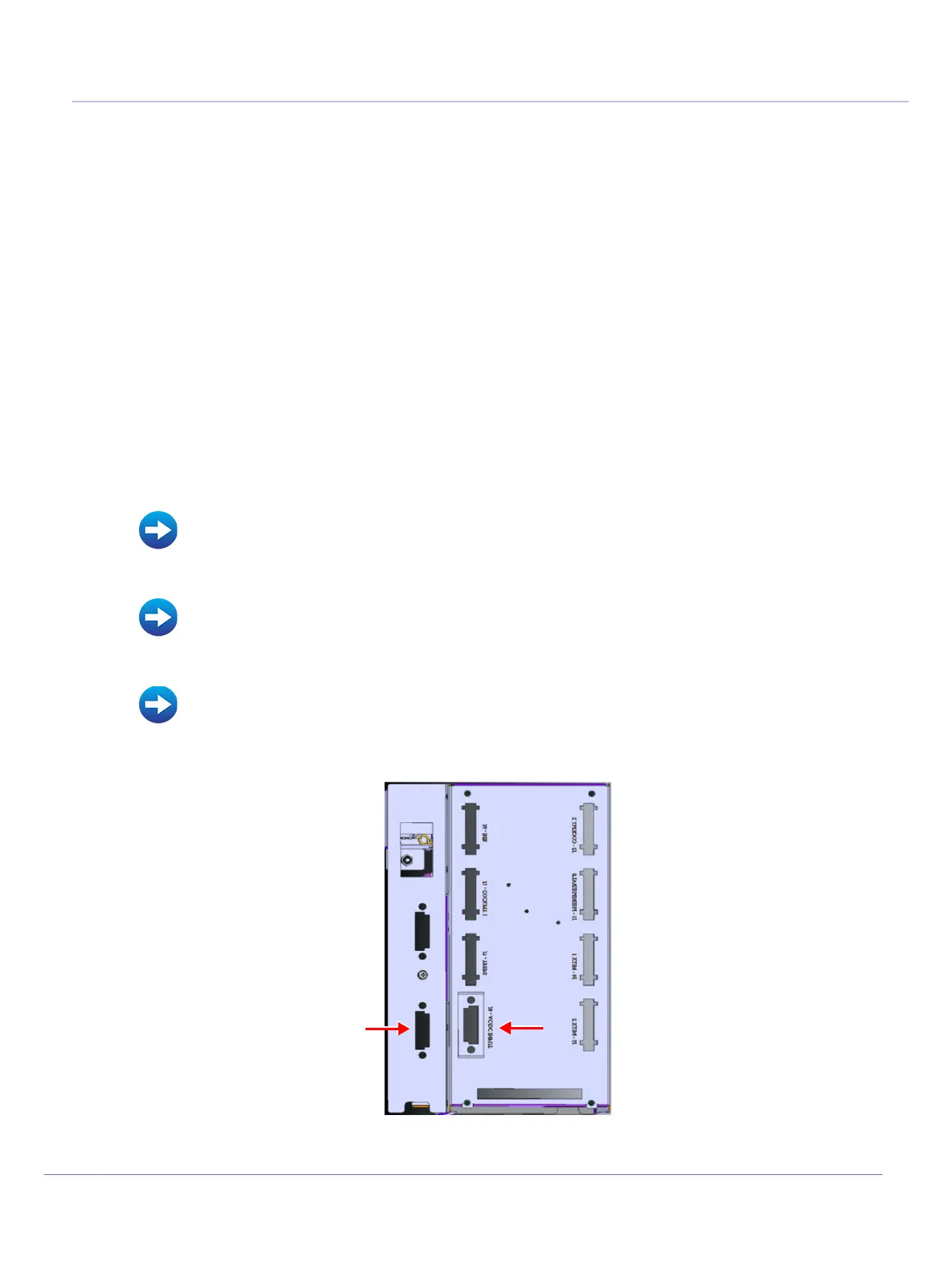

Figure 8-134 Connectors Diagram
