8-78 Section 8-6 - Mechanical Parts- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
Section 8-6
Mechanical Parts- Replacement Procedures
8-6-1 MPB Front Metal Door Replacement Procedure
8-6-1-1 Tools
Appropriate Phillips screwdriver.
8-6-1-2 Time Required
5 min
8-6-1-3 Preparations
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the On/Off power switch is set to Off.
3.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-6-1-4 MPB Front Metal Door Removal Procedure
1.) Remove all accessories.
2.) Remove the Lower Front eTower cover.
3.) Release four captive screws and remove the MPB Front Metal Door.
Refer to Table 9-9 on page 9-8.
• Accessories - Replacement Procedures
• Lower Front eTower Cover Removal Procedure

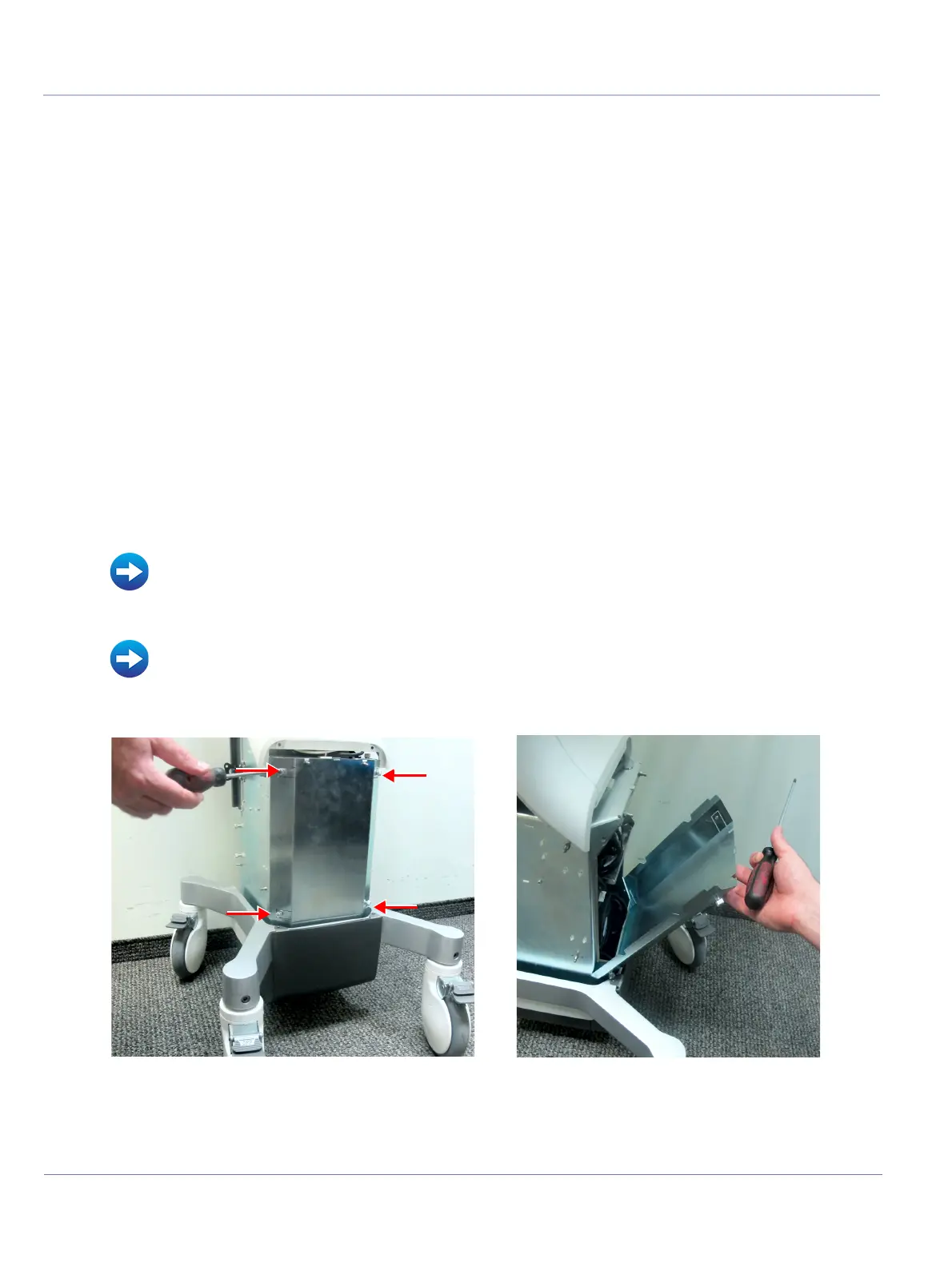

Figure 8-63 Removing MPB Front Metal Door
