Chapter 8 - Replacement Procedures 8-11
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-3-5 Mid Thermal Baffle Cover Replacement Procedure
8-3-5-1 Tools
None
8-3-5-2 Time Required
5 min
8-3-5-3 Preparations
Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
8-3-5-4 Mid Thermal Baffle Cover Removal Procedure
1) Grip the cover at its bottom and pull the cover toward you to remove it from the system.
8-3-5-5 Mid Thermal Baffle Cover Installation Procedure
1.) Reinstall the cover.
Refer to Table 9-8 on page 9-7.

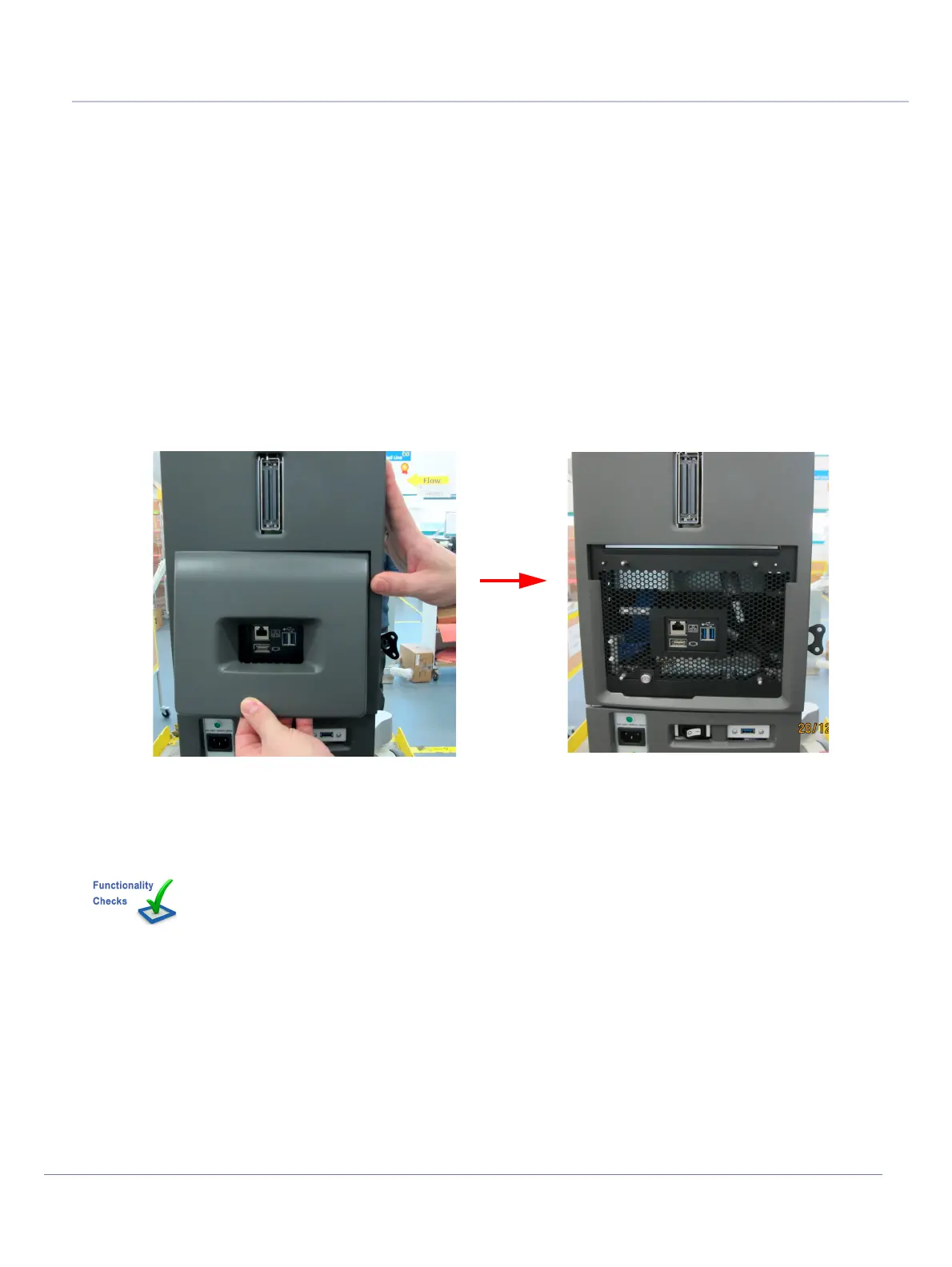

Figure 8-5 Removing the Mid Baffle Thermal Cover
Perform the checks listed in Mid Thermal Baffle Cover Replacement Procedure on page 8-216
