4-3-10 Mechanical Functions Checks
4-3-10-1 Monitor Articulated Arm Movement Check

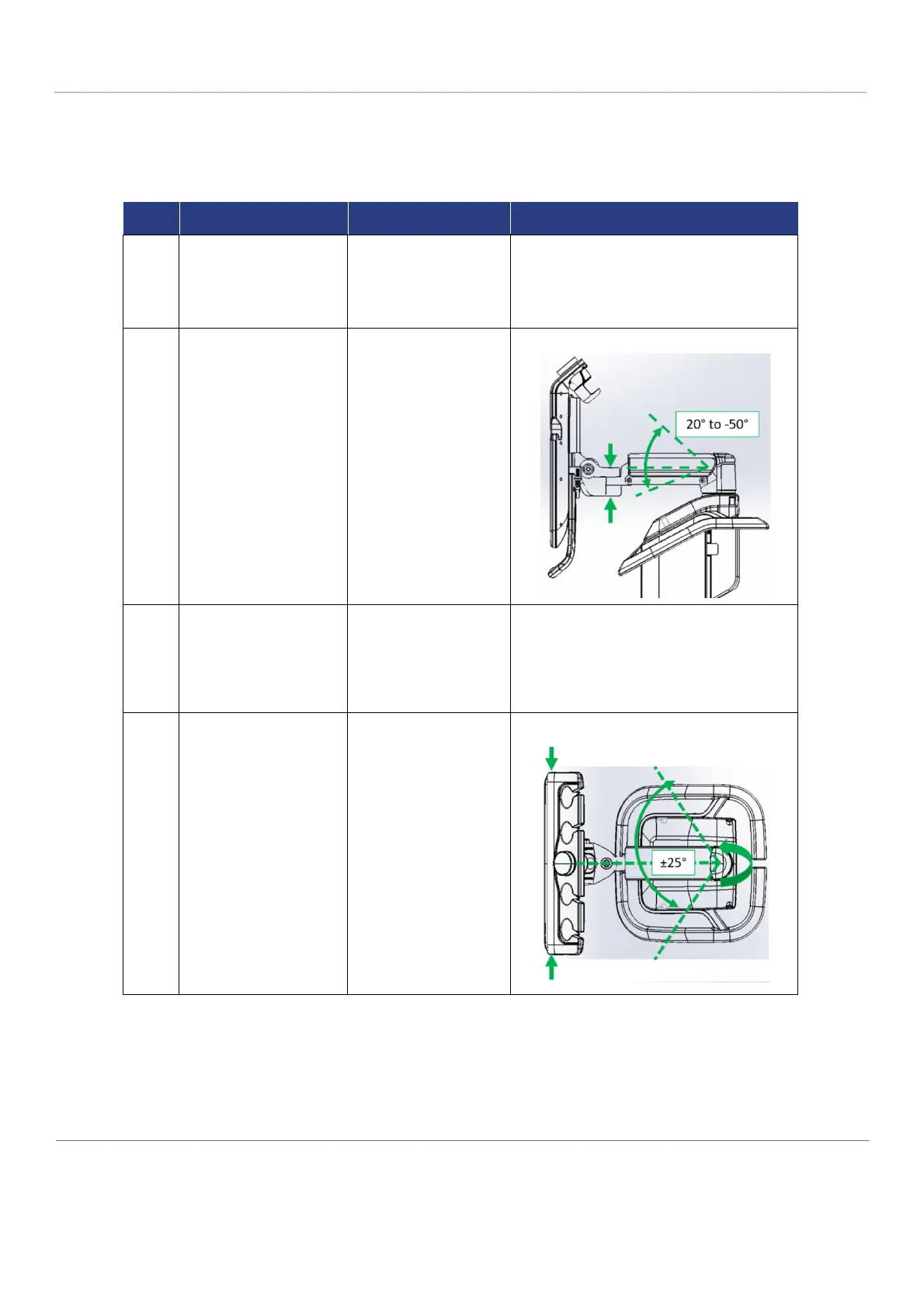

Step Task Expected Result(s) Illustration
1
Pull down the tilt and
locking black handle (it is
located under the cockpit
on the front of the Venue™
system).
The up and down
movement locking
mechanism is released,
allowing the arm to be
raised or lowered.
2
Hold the cockpit handle and
raise the cockpit upwards,
then downwards and make
sure it is able to reach its
maximum lowest and
maximum highest
positions.
Ensure that you do not
apply too much force to
move the cockpit and that
the movement is smooth.
During the movement up
and down, make sure the
image displayed on the
monitor does not present
any disturbance.
3
Move down the cockpit to
its maximum lowest
position, until it is locked in
place.
Make sure the arm is
locked and no movement
is observed when
moderate force is applied
to the cockpit (upwards
and downwards).
4
Check the swivel as
follows:
Hold the cockpit monitor
and move it to its maximum
left and then to its
maximum right positions.
Ensure that you do not
apply too much force to
move the cockpit and that
the movement is smooth.
During the movement left
and right, make sure the
image displayed on the
monitor does not present
any disturbance.
Table 4-21 Monitor Articulated Arm Movement Check
