Chapter 8 - Replacement Procedures 8-19
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-3-10 Riser Thermal Cover Replacement Procedure
8-3-10-1 Tools
Appropriate Phillips screwdriver
8-3-10-2 Time Required
5 min
8-3-10-3 Preparations
Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-3-10-4 Riser Thermal Cover Removal Procedure
1.) Remove the following covers: Lower Front eTower, Right Side and Left Side eTower covers:
2.) Open the door.
3.) Hold the cover and pull it down.
4.) Remove the cover.
8-3-10-5 Riser Thermal Cover Installation Procedure
Attach the Riser Thermal Cover to scanner and secure with two Phillips screws.
Refer to Table 9-9 on page 9-8.
• Lower Front eTower Cover Removal Procedure
• Left Side eTower Cover Removal Procedure
• Right Side eTower Cover Removal Procedure

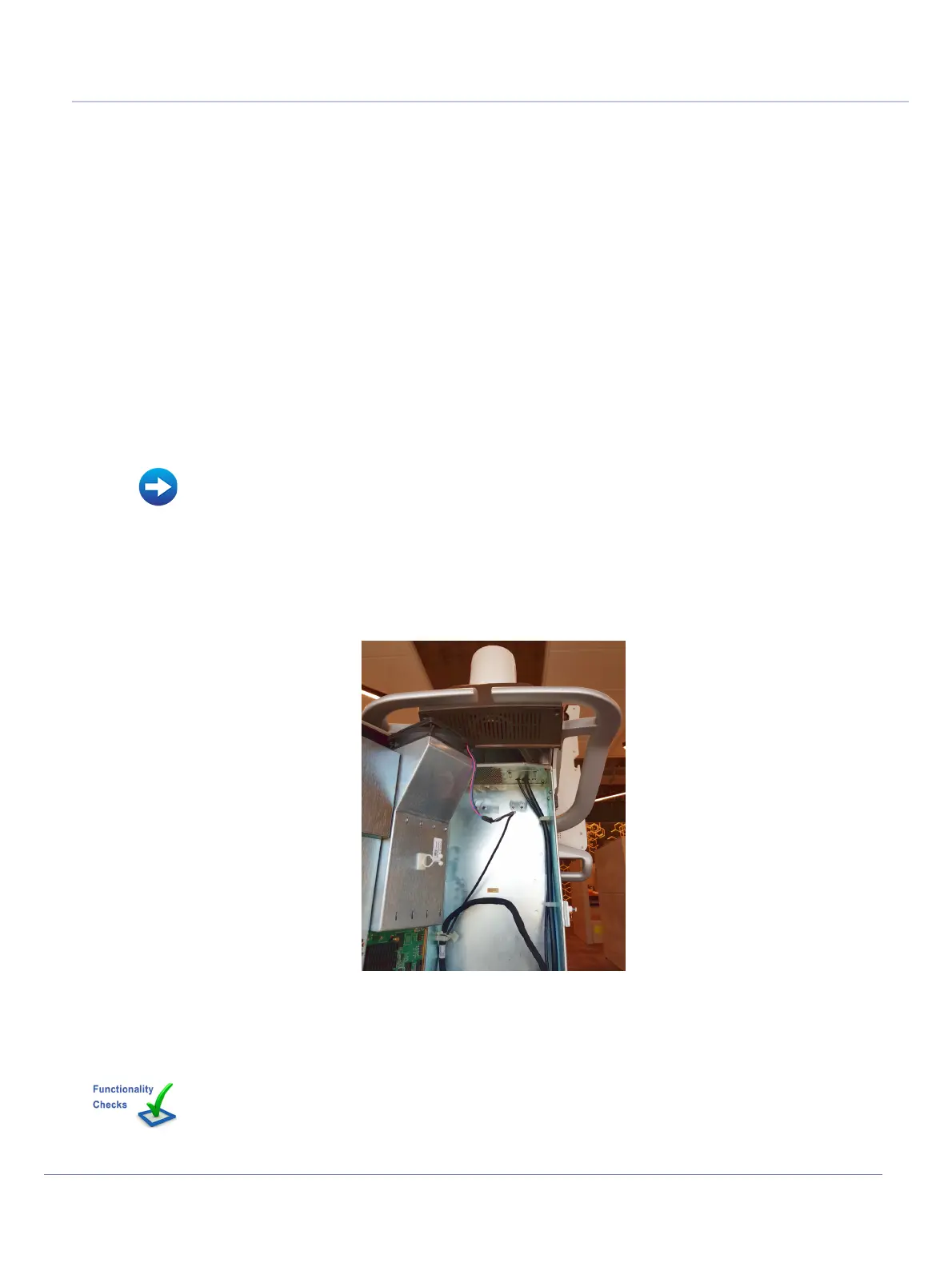

Figure 8-10 Removing Riser Thermal Cover
Perform the checks listed in Riser Thermal Cover Replacement Procedure on page 8-216
