GE Venue R1 Service Manual

Chapter 8 - Replacement Procedures 8-9
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-3-3-5 Left Side eTower Cover Installation Procedure
1) Return the left side eTower cover and make sure the eTower pins go inside the dedicated holes on
the inner side of the cover
2) Install the RS Probe Cover.
3.) Install all accessories.

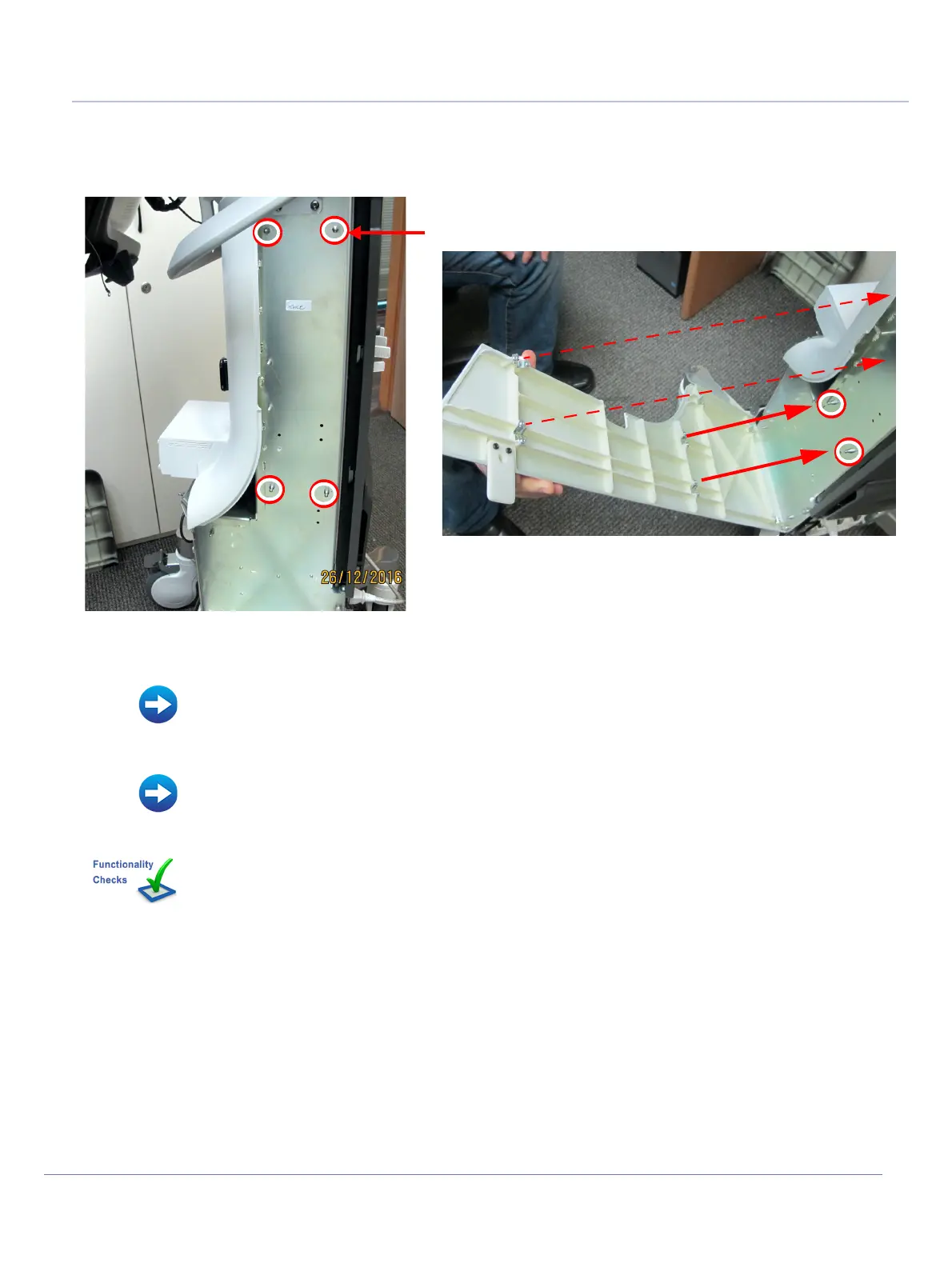

Figure 8-4 Installing the Left Side eTower Cover
• RS Probe Cover Installation Procedure
• Accessories - Replacement Procedures
Perform the checks listed in Lower Front eTower Cover Replacement Procedure on page 8-216
eTower pin

GE Venue R1 Specifications

General

Type	Ultrasound System
Imaging Modes	Color Doppler
Connectivity	DICOM, USB, Ethernet
Power Supply	100-240 VAC, 50/60 Hz
Ports	Ethernet, USB
Supported Probes	Linear, Convex, Phased Array
