6.) Remove the riser cover.
7.) Remove the Teflon sliding top ring.
Note: Ensure the pressure pin is not dropped (if exists)

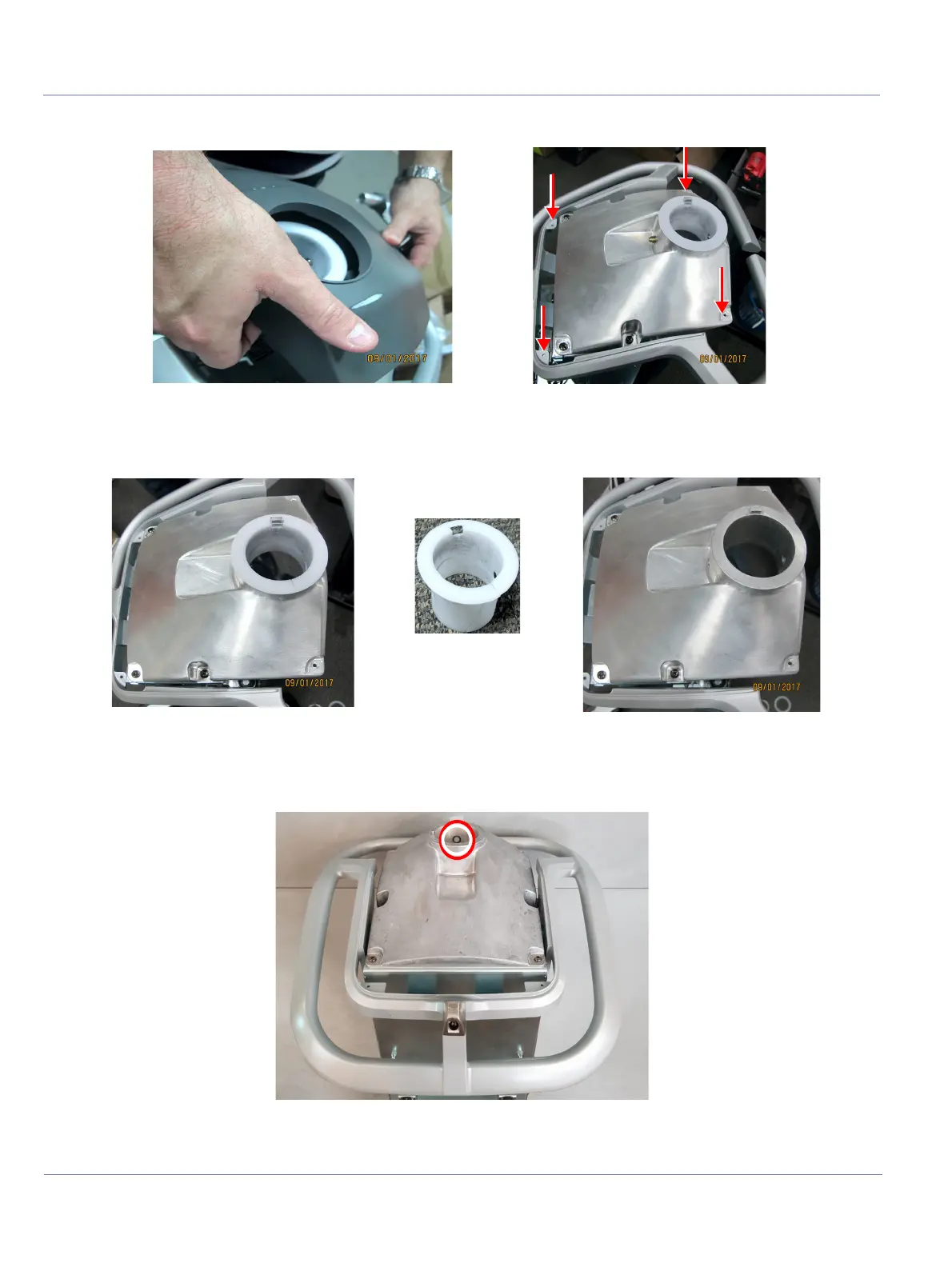

Figure 8-75 Removing Riser Cover
Figure 8-76 Removing Teflon Sliding Top Ring
Figure 8-77 Pressure Pin
