4.) Disconnect the two lower cable connectors J4, J5 by sliding them upwards (see J-connectors map
that follows).
5.) Release the cable from the two plastic cable clips.
The cable is released.

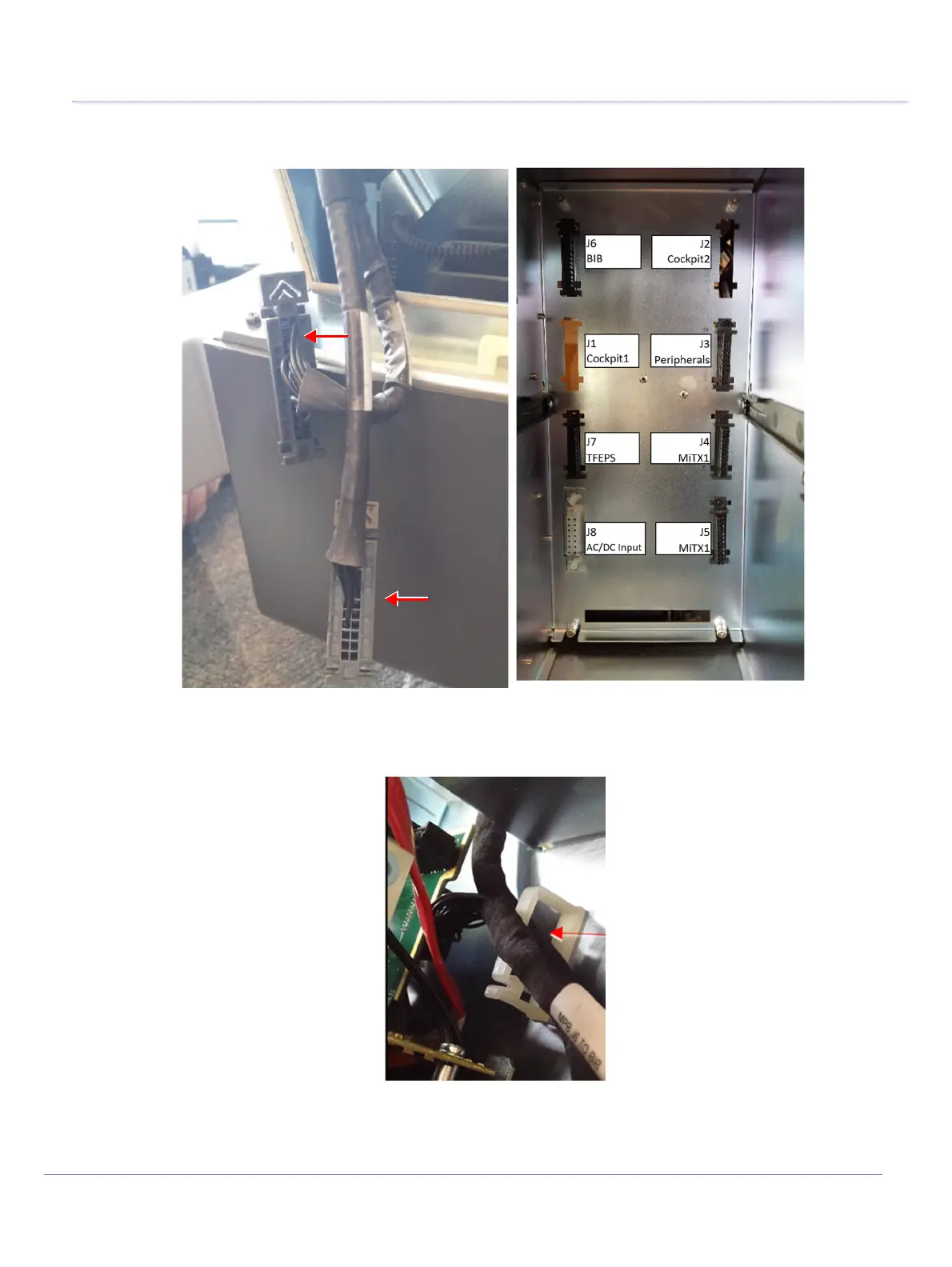

Figure 8-139 Disconnecting Two Lower Connectors
Figure 8-140 Releasing Cable from Plastic Cable Clips
