8-172 Section 8-8 - Peripherals Replacement/Installation Procedures

IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL

PRELIMINARY

Note: The barcode device is detected by the system as a COM Port under windows device manager:.

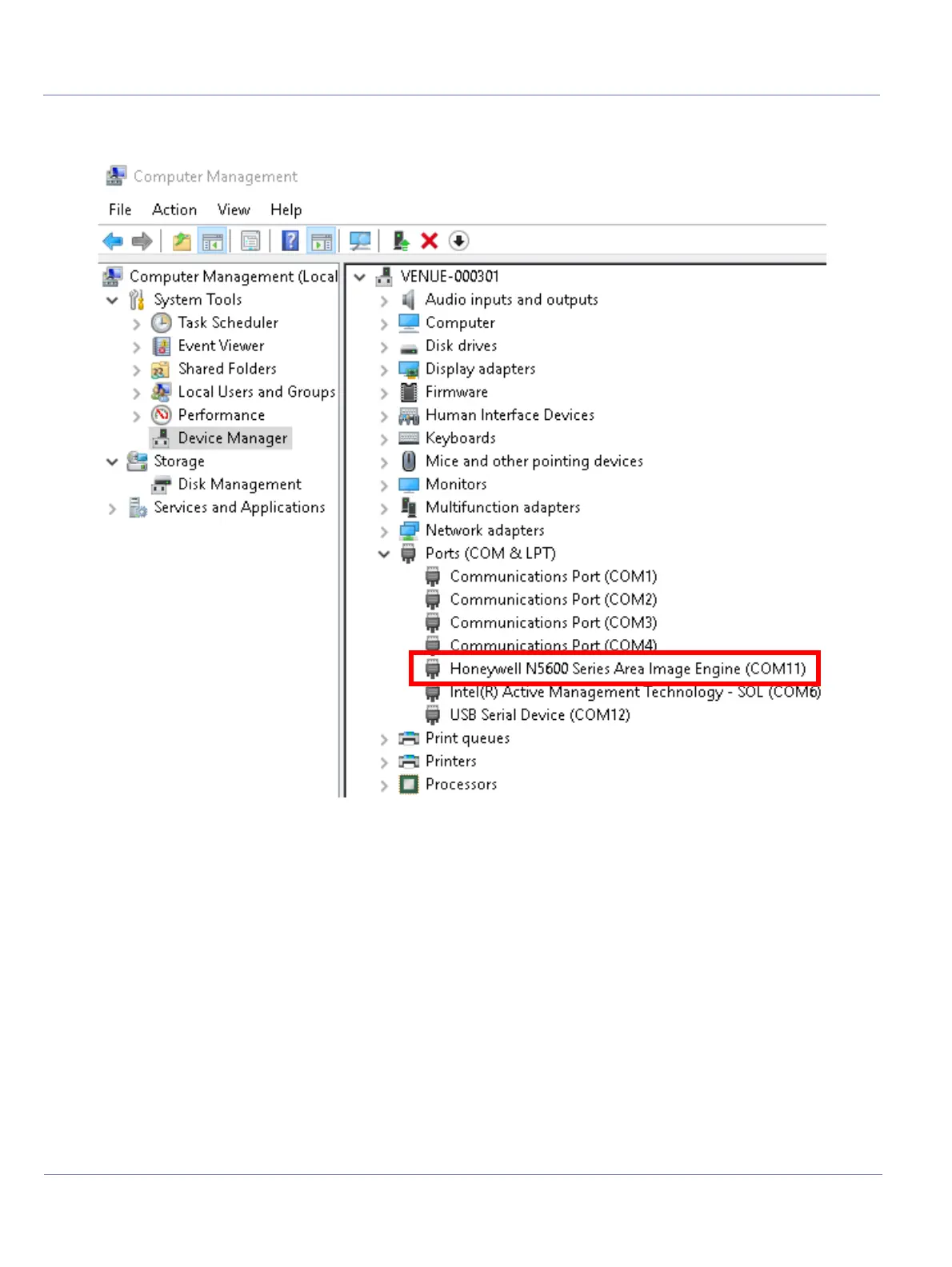

Figure 8-184 Barcode detection in Device manager
