8-96 Section 8-6 - Mechanical Parts- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
4.) Return and fasten the Allen screw, making sure the screw is tightened sufficiently to secure the
wheel on the chassis. Do not over-tighten the screw!
NOTE: When installing wheels, make sure you install the correct type of the wheel. The wheels position is
crossover.
5.) Carefully position the system on the ground.

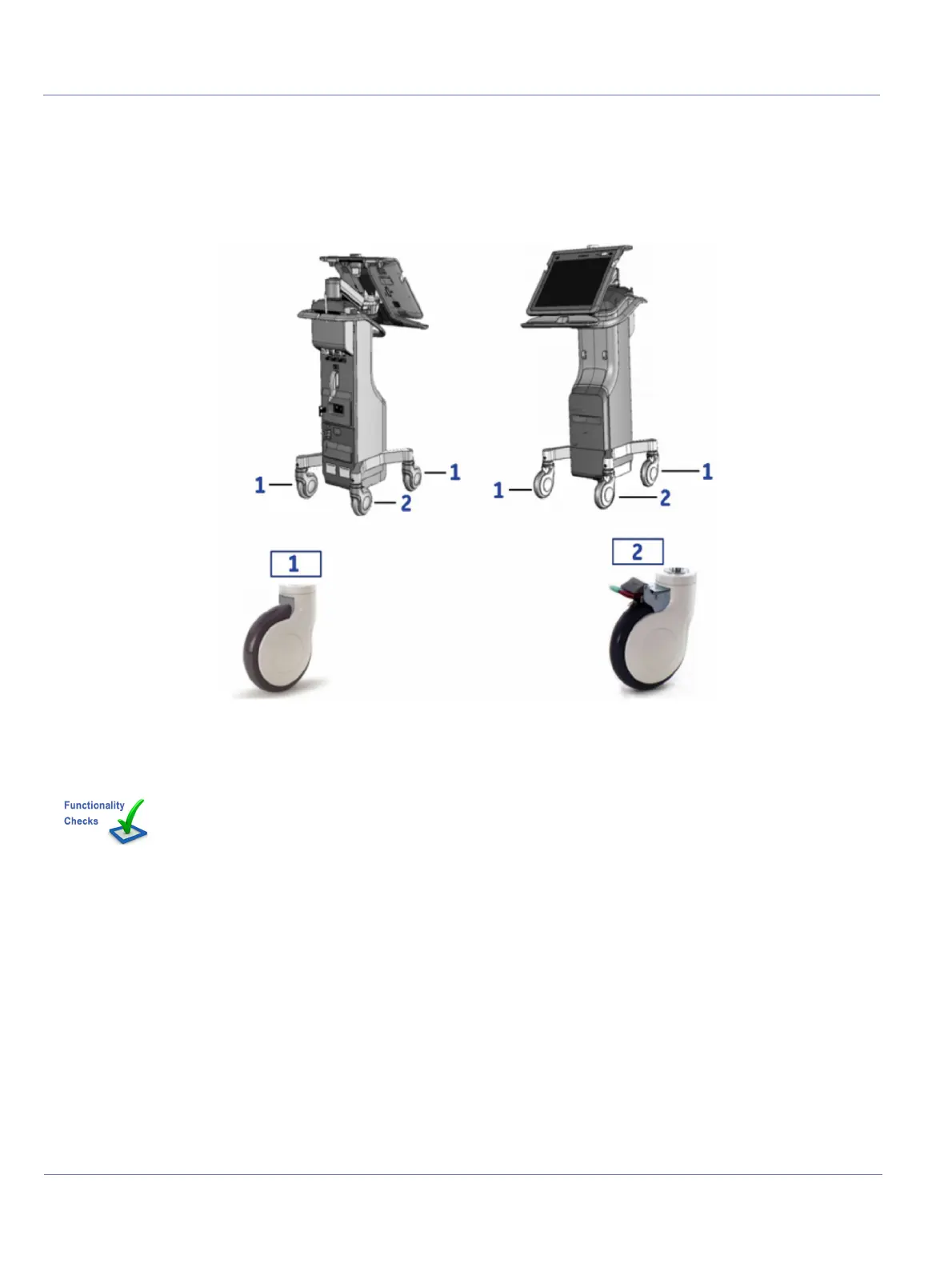

Figure 8-82 Wheels Position in the System
Perform the checks listed in Casters Replacement Procedure on page 8-218
