• Gently pull down the Plastic Cable Guide for CFE and disconnect the cable connector:
6.) Loosen and remove the two screws securing the cable guide to CFE board and remove it.

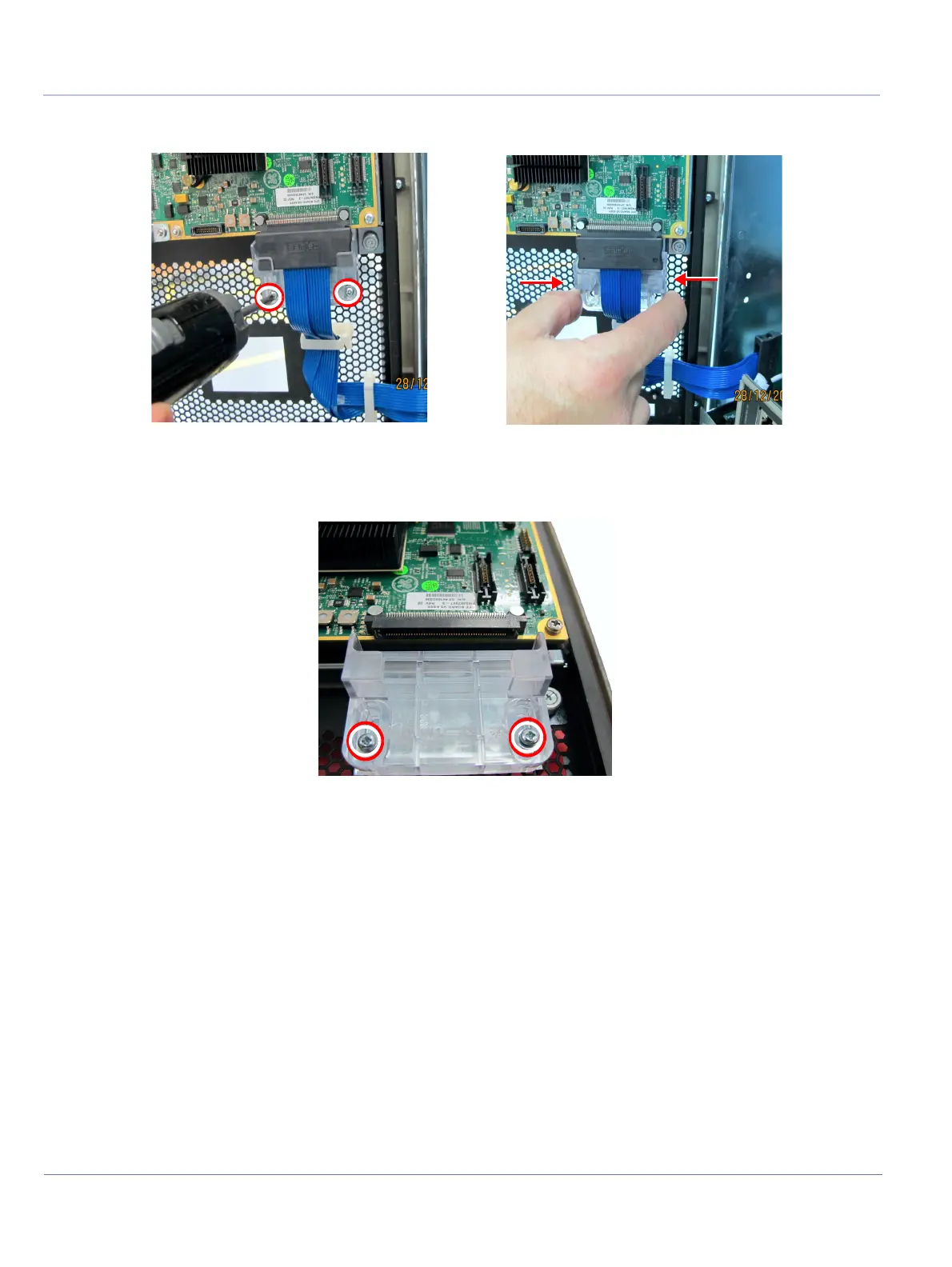

Figure 8-83 Disconnecting the PCIe Cable
Figure 8-84 Removing Plastic Cable Guide for CFE
