8-8-1-5 Printer Installation Procedure (For Systems with No Existing Printer)
1.) Remove the Printer Insert Cover from the Upper eTower Cover.
2.) Install the Printer Frame Cover and secure with two Phillips screws.
3.) Remove the metal bracket. Use Phillips screwdriver.
• Printer Insert Cover Removal Procedure

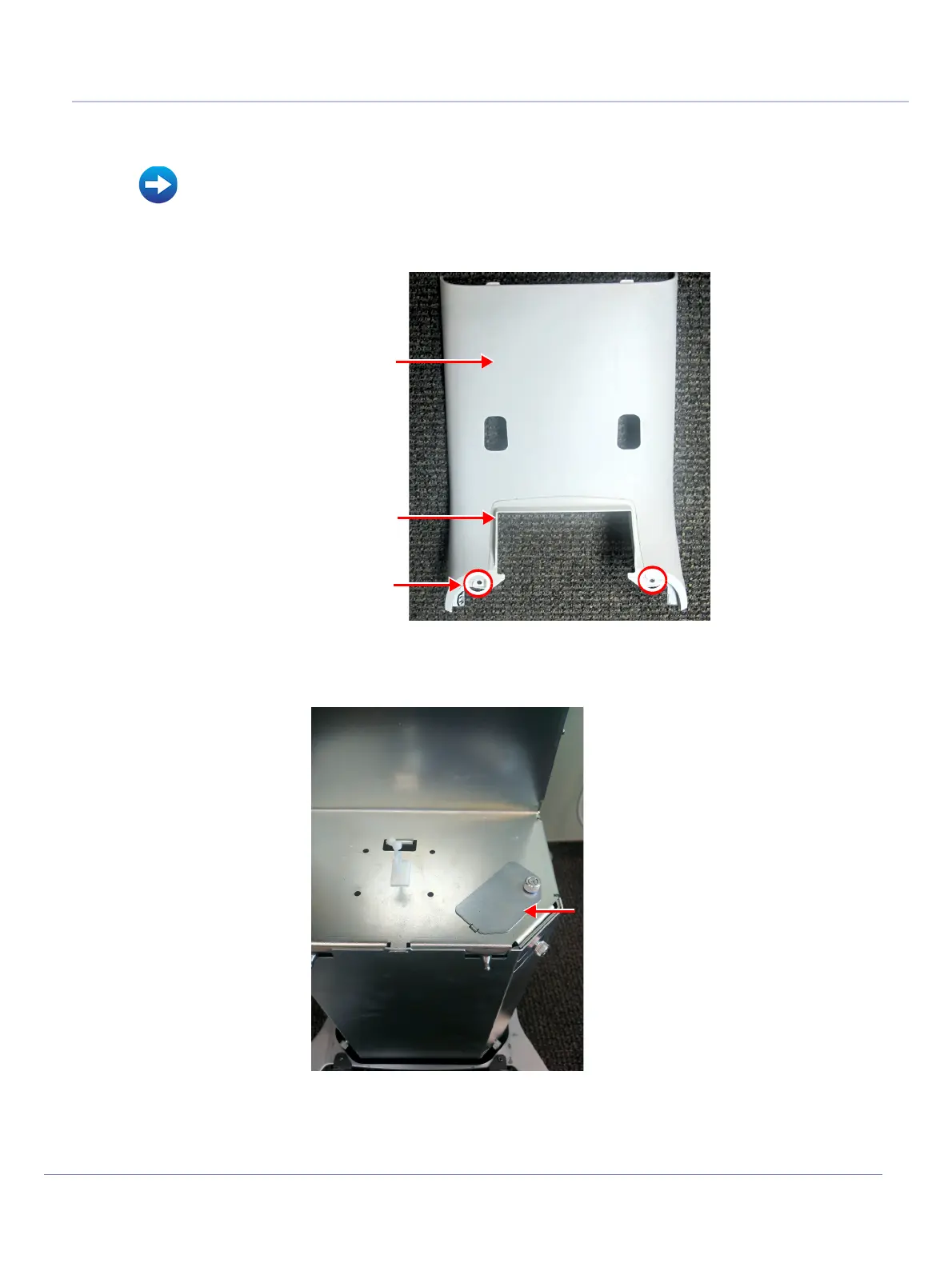

Figure 8-173 Installing Printer Frame Cover
Figure 8-174 Removing Metal Bracket
..
Upper eTower Cover
..
Printer Frame Cover
Phillips screws
