Chapter 8 - Replacement Procedures 8-179
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY

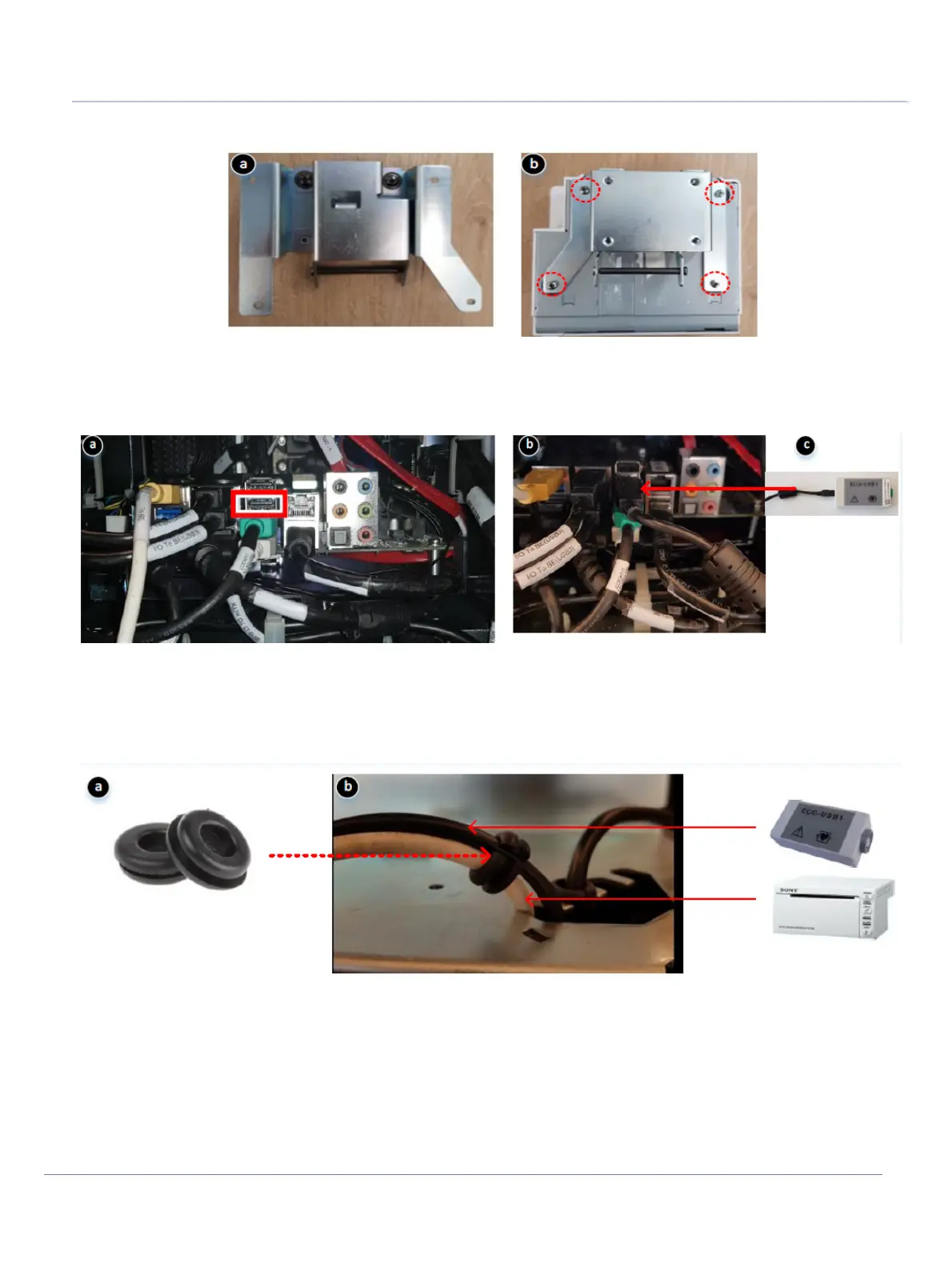

6.) Attach the bracket to the printer using four screws.
7.) Connect ECG USB cable to the USB 2.0 port on the BEP on top of the green connector.
8.) Route the USB cable through the dedicated opening in the eTower and affix it along with the printer
USB cable.
Figure 8-197 Attaching Bracket to Printer
Figure 8-198 Connecting ECG USB Cable
Figure 8-199 Connecting ECG USB Cable
