8-204 Section 8-9 - Operating System and Application Software Loading Procedures

IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL

PRELIMINARY

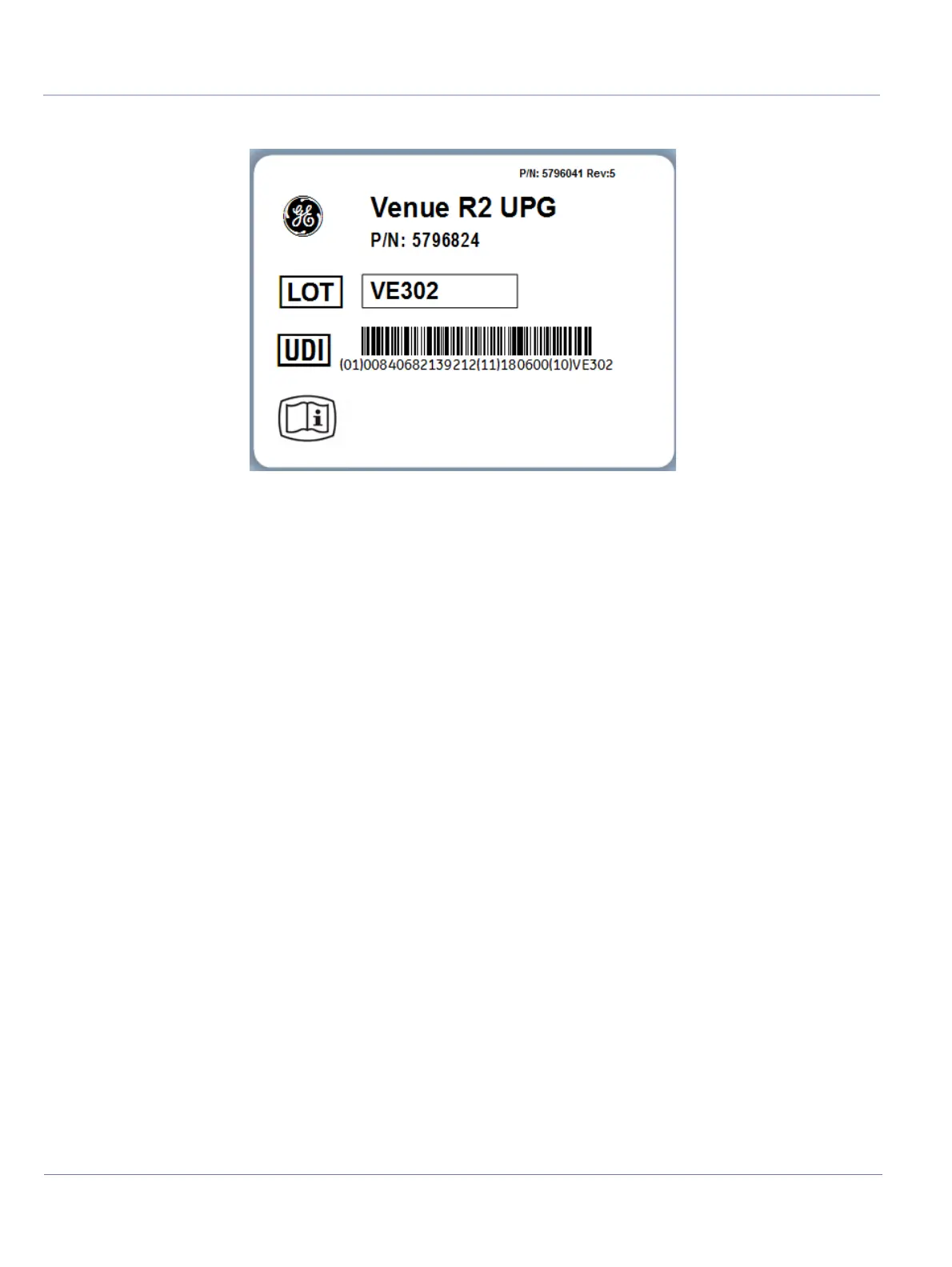

Figure 8-247 Example of UDI label attached to Software installation media Label
