22 ADV100 • Functions description and parameters list
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
5.12 636 Ramprefbottomlim rpm INT32 0 0 CALCI ERWZ FVS

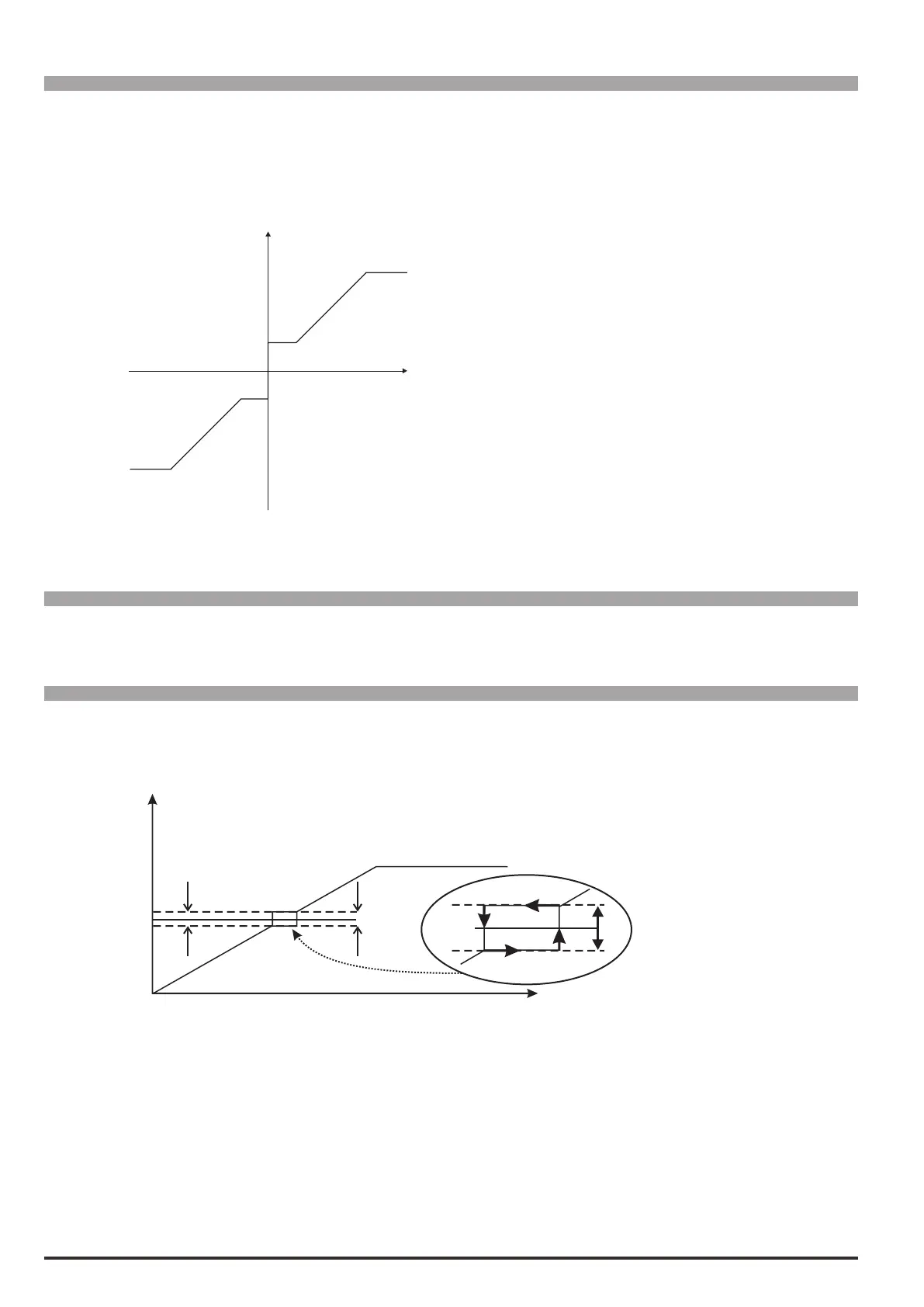

It denes the minimum value of the output of the ramp reference block, regardless of the signal that is present. The ramp
block output remains at the value set with this parameter until the analog signal exceeds this threshold: the ramp output
value then starts to follow the reference up to the value set in parameter PAR 634 Rampreftoplim. The limit is valid for
both directions of rotation.
- 100 %
- 10V
100 %
10V
Par 636
Par 636
Par 634
Par 634
Analog
input
100 %
- 100 %
Ramp
output
0
In a system comprising a drive and motor, vibrations may be generated at certain frequencies, due to mechanical
resonance. This phenomenon can be limited by entering a prohibited speed at which the drive cannot operate
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
5.13 630 Referenceskipset rpm INT16 0 0 CALCI ERW FVS
Setting of the prohibited speed threshold at which the drive cannot operate.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
5.14 632 Referenceskipband rpm INT16 0 0 CALCI ERW FVS
Setting of the prohibited bandwidth.
Par. 630
Reference out
Reference in
Par 632
Par. 630
Par. 632 Par. 632
Example:
A) Increase in the reference by values of less than Par. 630
Par. 630 = 300 rpm (prohibited speed threshold)
Par. 632 = 10 rpm (thus prohibited band: 290rpm.310rpm)
Set speed reference = 295 rpmHz
Output speed = 290 rpm
Set speed reference = 305 rpm
Output speed = 290 rpm
