ADV100 • Functions description and parameters list 27
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
6.12 726 Multirampselmon UINT16 0 0 3 ER FVS
The set of acceleration/deceleration ramps selected using the digital inputs is displayed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
6.13 730 Acceljerktime0 s FLOAT 1.0 0.02 10.0 ERW FVS
6.14 732 Deceljerktime0 s FLOAT 1.0 0.02 10.0 ERW FVS
6.15 734 Acceljerktime1 s FLOAT 1.0 0.02 10.0 ERW FVS
6.16 736 Deceljerktime1 s FLOAT 1.0 0.02 10.0 ERW FVS
6.17 738 Acceljerktime2 s FLOAT 1.0 0.02 10.0 ERW FVS
6.18 740 Deceljerktime2 s FLOAT 1.0 0.02 10.0 ERW FVS
6.19 742 Acceljerktime3 s FLOAT 1.0 0.02 10.0 ERW FVS
6.20 744 Deceljerktime3 s FLOAT 1.0 0.02 10.0 ERW FVS

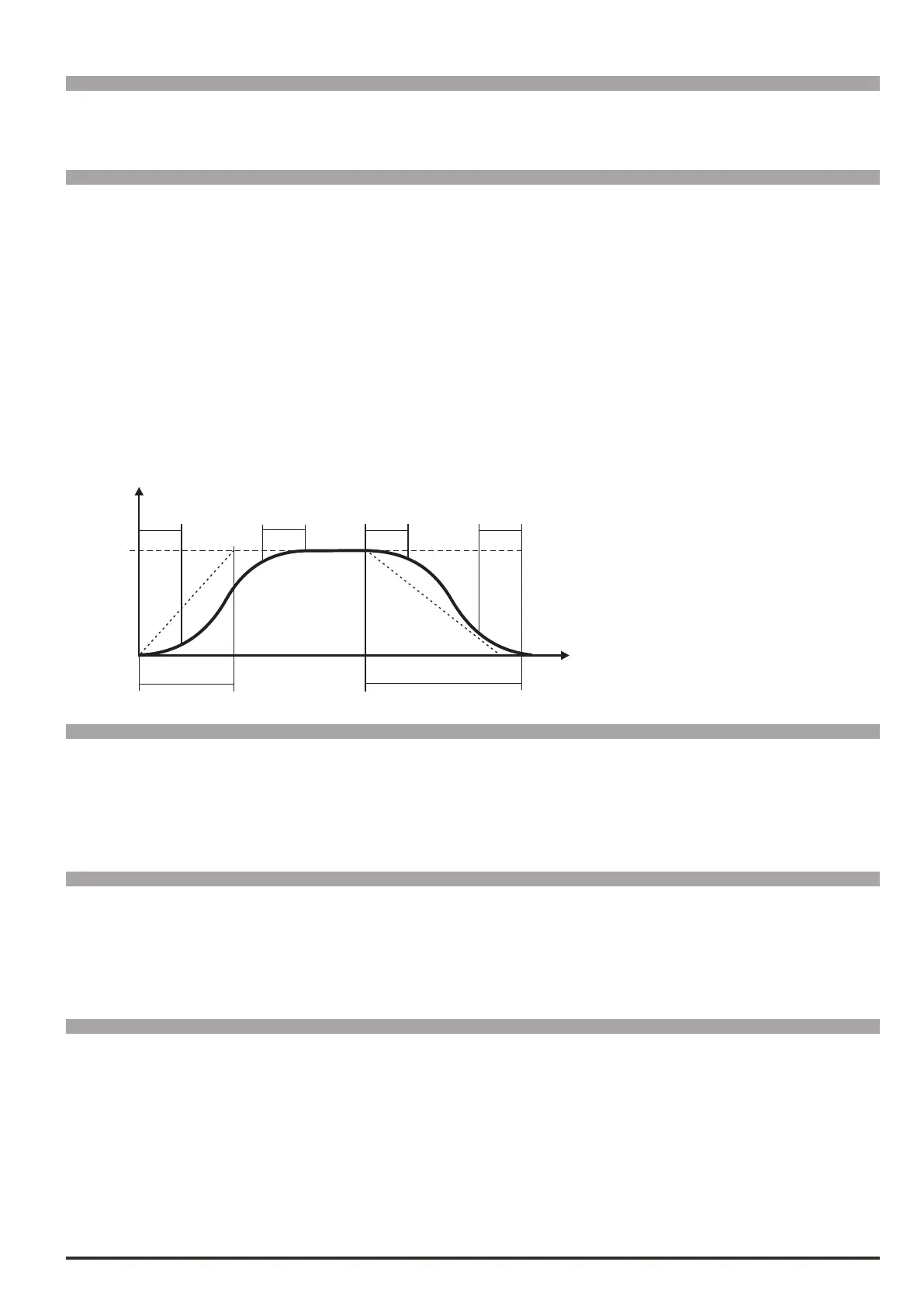

Jerks are variations of acceleration in time. They are used when there is a need to dampen the beginning and end of
the ramp. The Jerk value is added, regardless of the variation in speed, to the linear ramp time.
f
t
ACC TIME DEC TIME
6.13 6.13 6.14 6.14
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
6.21 750 Rampinzerosrc LINK 16 6000 0 16384 ERW FVS
Selection of the origin (source) of the signal that blocks the ramp input and moves the reference to zero. If the ramp
input is enabled, the Rampref parameter corresponds to the set reference. If the ramp input is blocked, the drive
slows down with the set deceleration time until reaching zero speed. The terminal to be associated with this function
can be selected from the “L_DIGSEL2” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
6.22 752 Rampoutzerosrc LINK 16 6000 0 16384 ERW FVS
Selection of the origin (source) of the signal that brings the ramp to 0 (Rampref1/Rampref2=0). When the ramp
output is set to zero using Rampoutzero, the drive brakes with the maximum available torque; in this case the
ramp is disabled. The terminal to be associated with this function can be selected from the “L_DIGSEL2” selection
list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
6.23 754 Rampfreezesrc LINK 16 3480 0 16384 ERW FVS
Selection of the origin (source) of the signal that temporarily freezes the ramp output value, regardless of any
changes in the input reference. The terminal to be associated with this function can be selected from the “L_DIG-
SEL2” selection list.
