gefran SIEIDrive ADV100 User Manual

ADV100 • Functions description and parameters list 31
Activespeedref Multirefsel0src Multirefsel1src Multirefsel2src Multirefsel3src
Multi reference 14 0 1 1 1
Multi reference 15 1 1 1 1

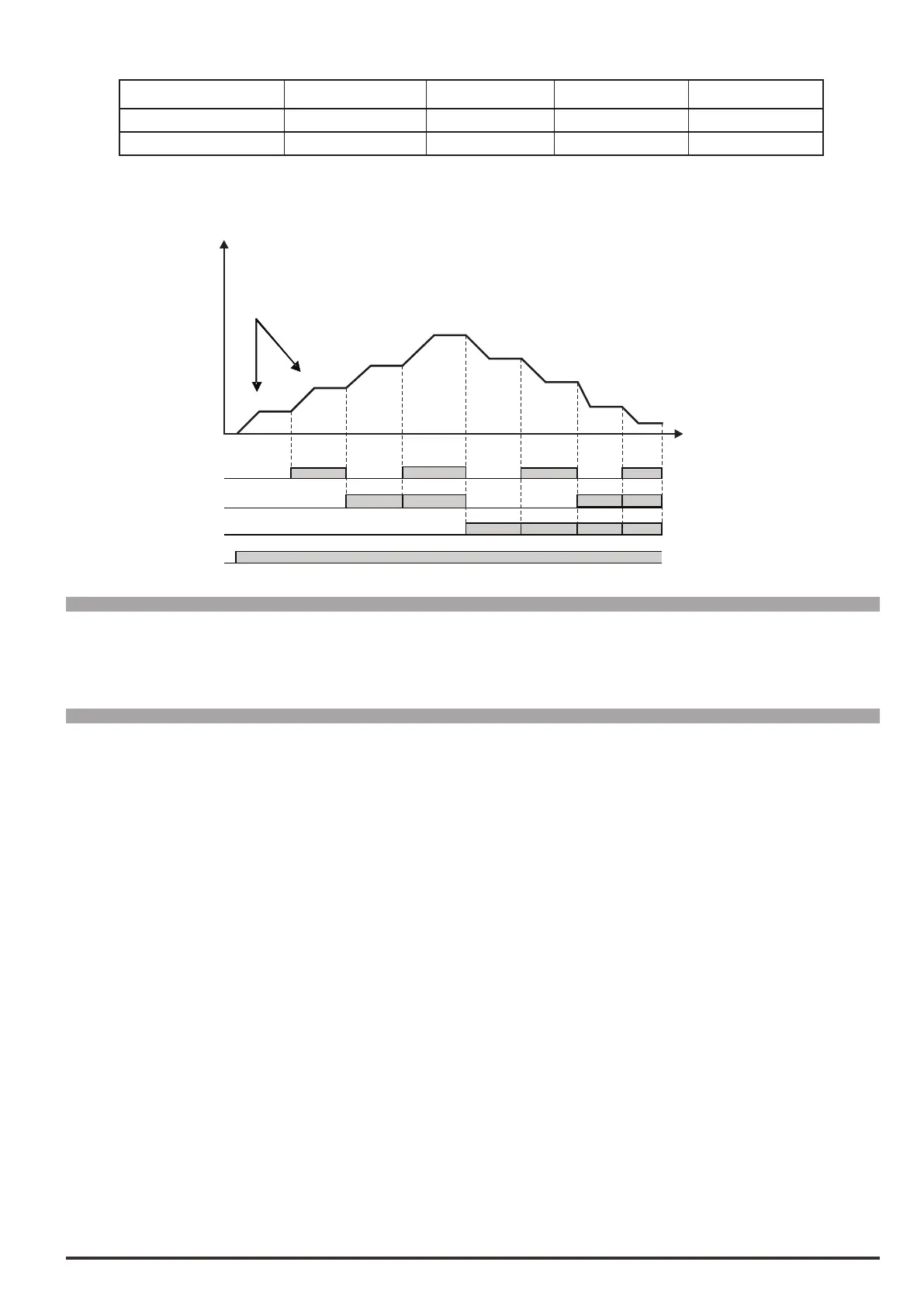

The following gure describes the selection of a control for 8 Multispeeds.
Multi ref sel 0src
Multi ref sel1 src
Multi ref sel 2src
Start
Speed
t
Multi ref 0
Multi ref 1
Multi ref2
Multi ref 3
Multi ref 4
Multi ref 5
Multi ref 6
Multi ref 7
Selected by:
Multi ref0 src (par. 832)
Multi ref1 src (par. 834)
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
7.23 850 Multirefselmon UINT16 0 0 15 R FVS
The multispeed that has been selected using the digital commands or by the digital inputs selected in the terminal
strip.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
7.24 852 Multirefoutmon rpm INT16 16/32 0 0 0 R FVS
The selected speed reference on the Multispeed block output is displayed.
