40 ADV100 • Functions description and parameters list
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.5 950 Speedthreshold1 rpm INT32 0 CALCI CALCI RW FVS
Setting of speed threshold 1 (upper). When the threshold is exceeded the Speedthreshold signal is disabled, with
a delay that can be set in Speedthresholddly.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.6 952 Speedthreshold2 rpm INT32 0 CALCI CALCI RW FVS
Setting of speed threshold 2 (lower). When the threshold is exceeded the Speedthreshold signal is disabled, with a
delay that can be set in Speedthresholddly.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.7 954 Speedthresholddly ms UINT16 0 0 50000 RW FVS
Setting of the delay after which the transition from 0 c1 is activated. The transition from 0 c1 occurs when the
speed is within the set limits.TheSpeedthresholdsignaltransitionfrom1c0isalwaysimmediate.
If the motor speed is between Speedthreshold1 and Speedthreshold2, the Speedthresholdsignal is active. If
Speedthreshold1 < Speedthreshold2 the Speedthresholdsignal is not signicant.

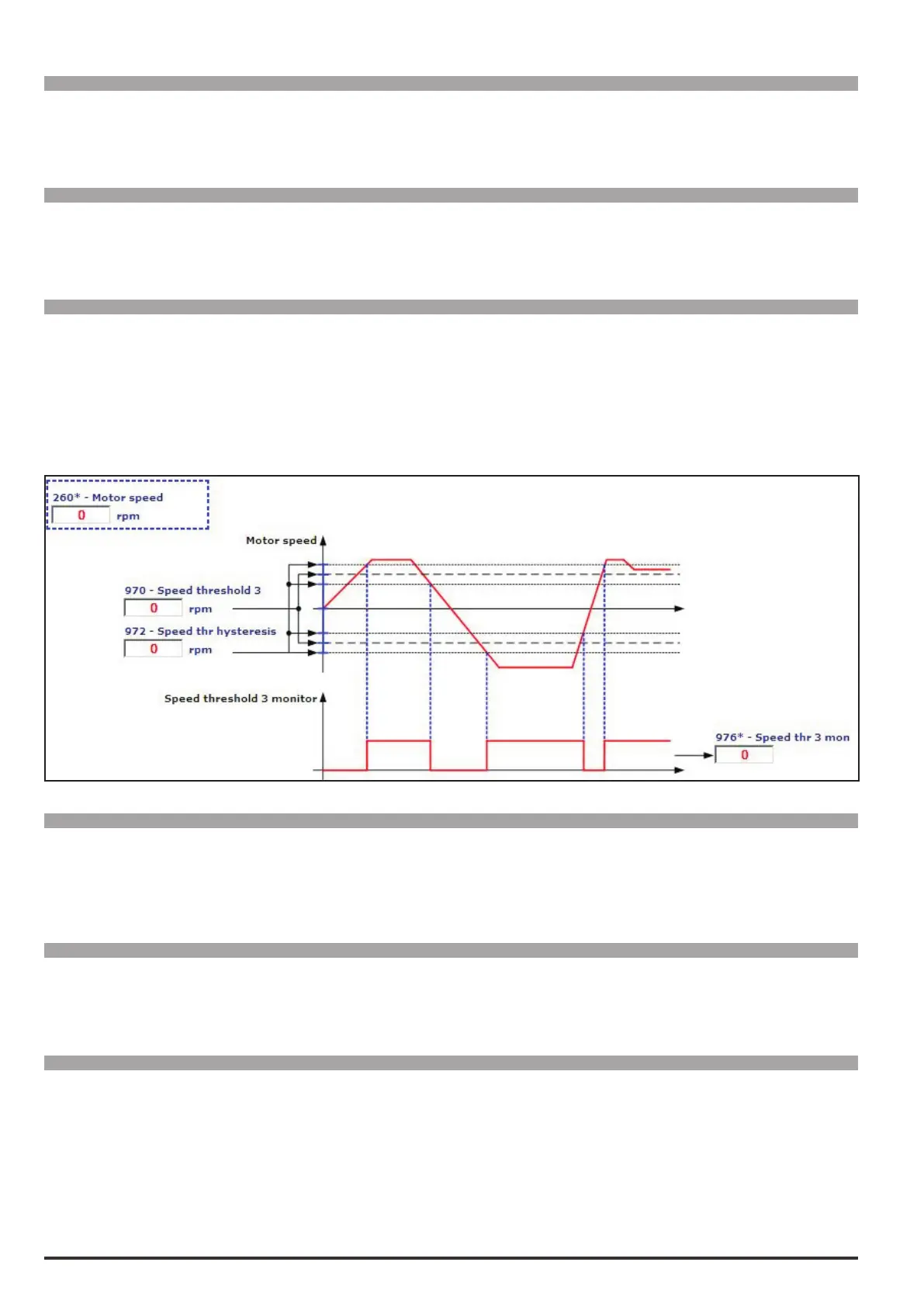

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.8 960 Setspeedrefsrc LINK 16/32 628 0 16384 ERW FVS
Selection of the origin (source) of the signal used as speed reference and on which the speed reached control is per-
formed (for control with ramp, use Rampsetpoint, for control without ramp, use Speedsetpoint). The signal that
can be used as the speed reference can be selected from among those listed in the “L_CMP” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.9 962 Setspeederror rpm INT16 100 0 CALCI RW FVS
Setting of the bandwidth of the tolerance within which, even if the speed is not equal to the reference, the two values
are considered to coincide and the Setspeed signal is enabled.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.10 964 Setspeeddelay ms UINT16 0 0 50000 RW FVS
Setting of a delay in ms before the signal (Setspeed programmed on a digital output), if the speed is within a toler-
ance band dened by the Setspeederror parameter, after which the transition from 0 c1 is enabled.
ThetransitionoftheSetSpeedsignalfrom0c1isalwaysimmediate.
