ADV100 • Functions description and parameters list 55
If the voltage setting on the analog input is less than 1V, the Value too low alarm is generated.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.6 1612 Analoginp1Xtop cnt INT16 16384 -32768 + 32767 ERW FVS
14.21 1662 Analoginp2Xtop cnt INT16 16384 -32768 + 32767 ERW FVS
Setting of the upper speed reference limit as a function of the voltage (or current) of the relative analog reference of
the expansion card.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.7 1614 Analoginp1Xbottom cnt INT16 -16384 -32768 + 32767 ERW FVS
14.22 1664 Analoginp2Xbottom cnt INT16 -16384 -32768 + 32767 ERW FVS
Setting of the lower speed reference limit as a function of the voltage (or current) of the relative analog reference of
the expansion card.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.8 1616 Analoginp1Xoffset cnt INT16 0 -32768 + 32767 ERW FVS
14.23 1666 Analoginp2Xoffset cnt INT16 0 -32768 + 32767 ERW FVS

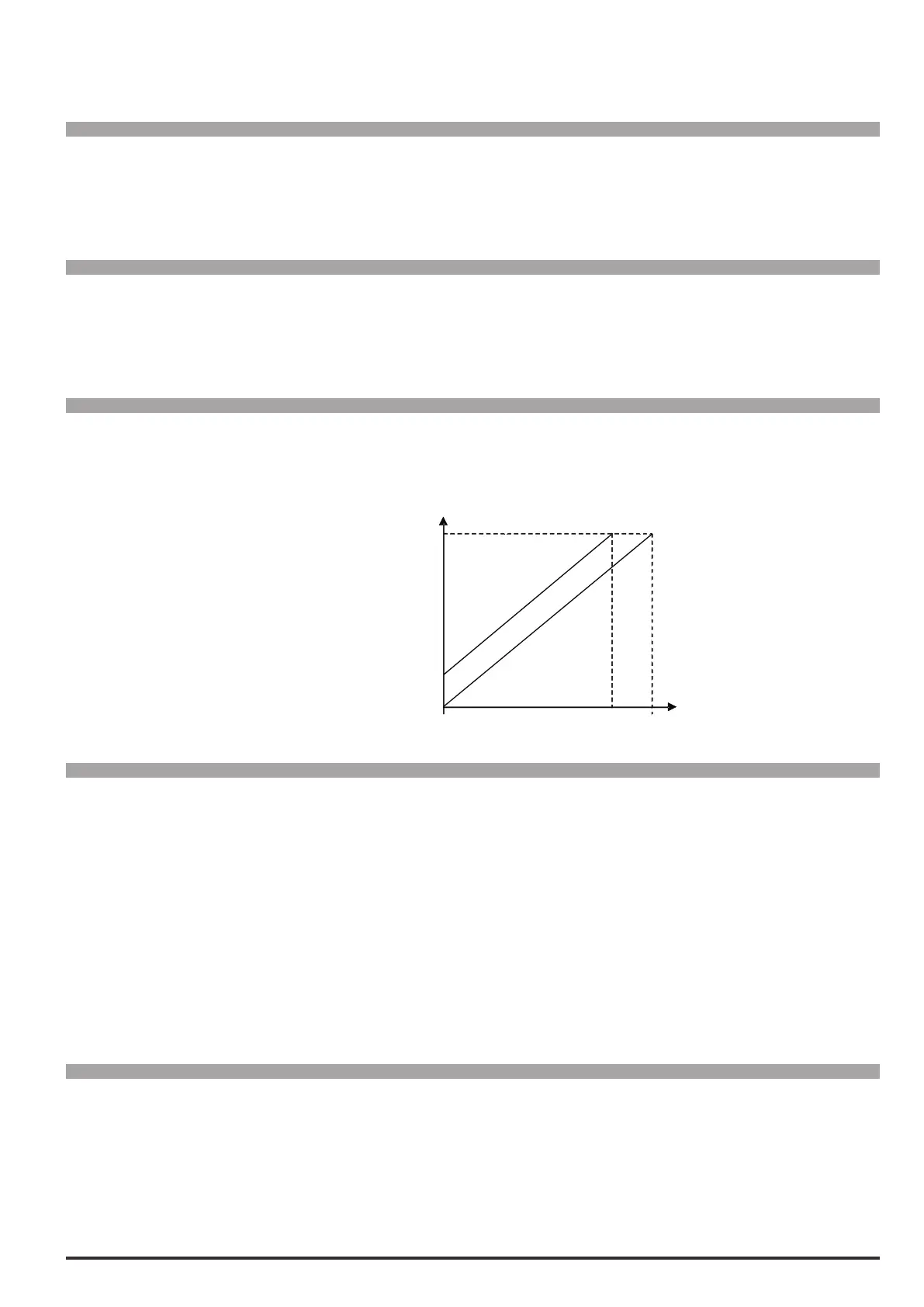

Setting of an offset value to algebrically add to the relative analog input of the expansion card.
100%
Analog inp xX offset
{
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.9 1618 Analoginp1Xgain FLOAT 1.0 -10.0 10.0 ERW FVS
14.24 1668 Analoginp2Xgain FLOAT 1.0 -10.0 10.0 ERW FVS
This parameter contains the value of the multiplier factor to apply to the analog reference of the expansion card
calculated using the Analoginpgaintunefunction.
Example:
An external analog reference only reaches a maximum of 9.8V instead of 10V. 1.020 (10V : 9.8V) is entered as the
Analoginpxgain parameter.
The same result can be achieved using the Analoginpxgaintune function. This parameter can be selected from
the keypad menu. The maximum analog value available (in this case 9.8V) must be present on the terminal, with
positive polarity. Press the Enter key on the keypad to start analog reference self-tuning.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.10 1620 Analoginp1Xthr cnt INT16 0 -16384 +16384 ERW FVS
14.25 1670 Analoginp2Xthr cnt INT16 0 -16384 +16384 ERW FVS
Setting of the analog input threshold for the speed not exceeded signal, which allows enabling of the digital outputs
Analoginp1X(par. 1630) and Analoginp2X (par.1680).
