GERBERplotter MP Series User Manual
English
OVERLAP
PH 1-2
4
3
0
5 13
OVERLAP
PH 2-3
8
0
9 1310
OVERLAP
PH 3-4
6
5
0
7 13

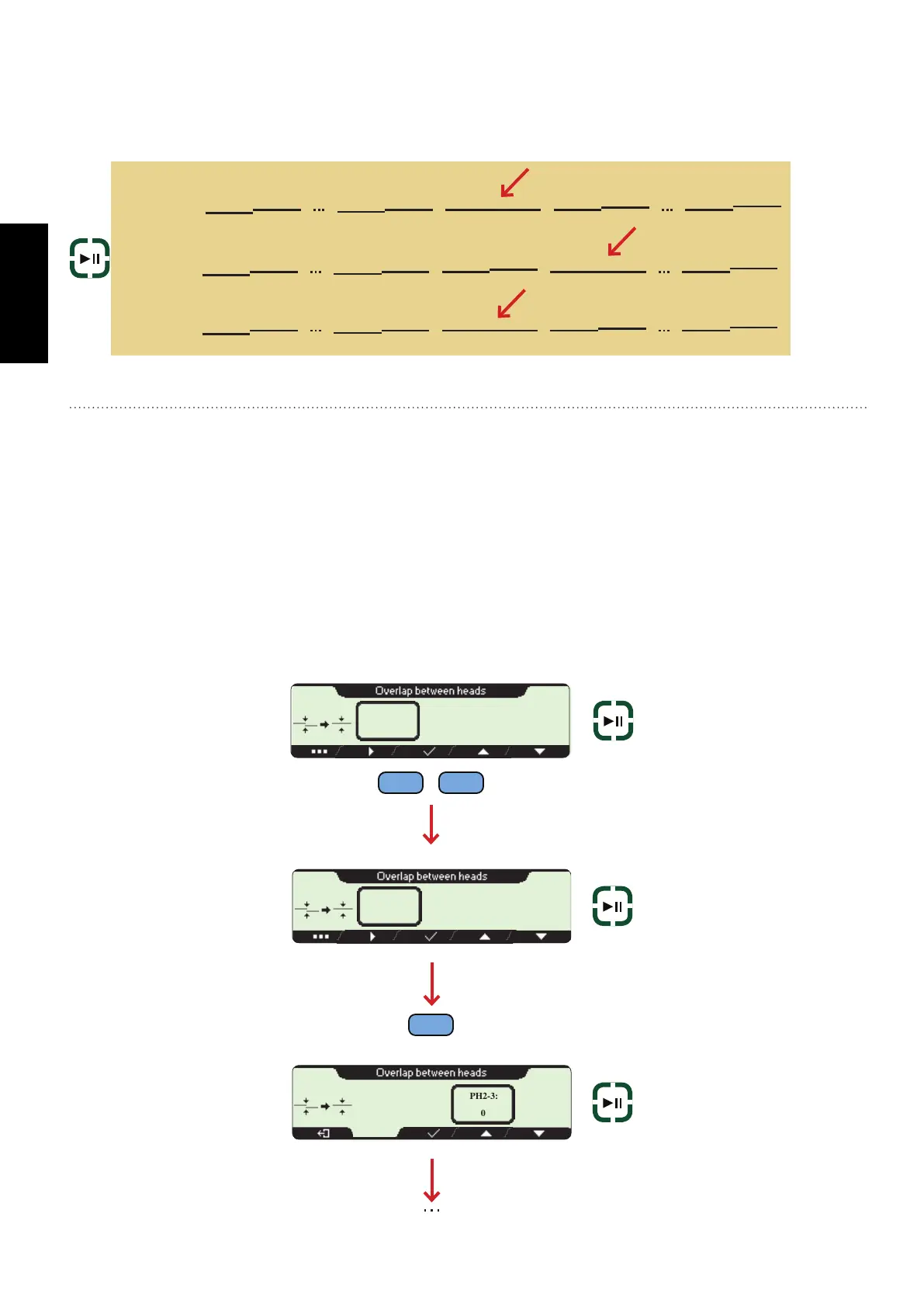

On a plotter with four print heads, OVERLAP shows the values for the paired print heads. This test displays three
sets of results, PH 1-2, PH 2-3, and PH 3-4. Visually determine the adjustment required for each pair of print heads.
Entering the three adjustment values is done as follows:
1
Pressing +/- increases or decreases the adjustment value of the selected pairing (indicated by frame symbol).
Select the most accurate pairing (for example, pairing 6 in PH 3-4).
2
Pressing the arrow button allows you to scroll to the next adjustment value and enter the new value when
appropriate.
3
When all three adjustment values are entered, press PRINT/PAUSE to repeat the print test. Press OK to nish
the adjustment.
PH1-2: PH2-3: PH3-4:
0 04
PH1-2: PH2-3: PH3-4:
0 00
+ -

PH1-2:
4
PH2-3:
0
PH3-4:
0
PRINT
PAUSE
PRINT
PAUSE
PRINT
PAUSE
PRINT
PAUSE
