4
2 way offset
1

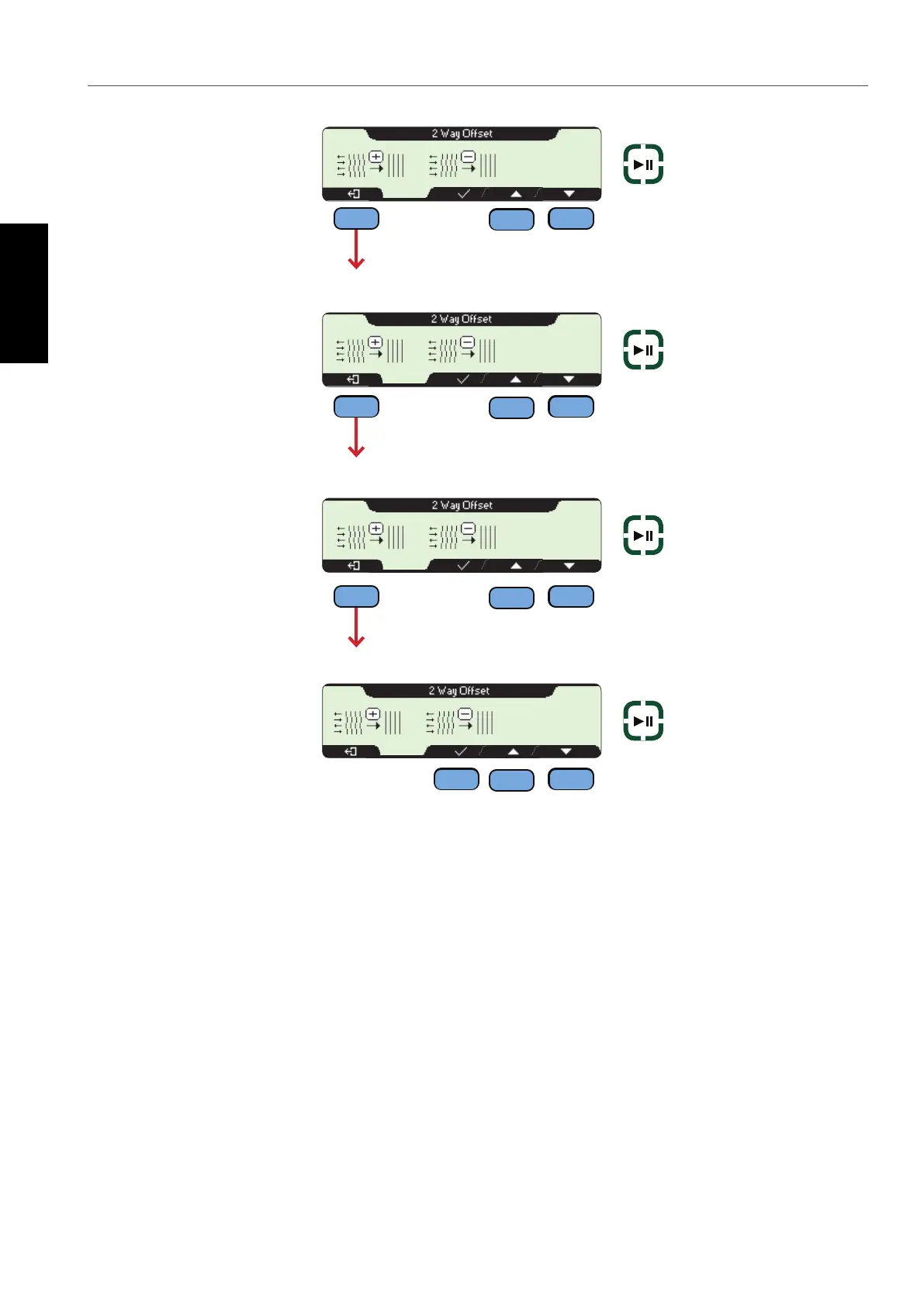

Press PRINT/PAUSE to stop or start printing lines in both directions.
2
The lines should join together perfectly. If not, look at the gaps between the lines produced by the print head
moving in one direction or the other, and increase or decrease the adjustment values accordingly (when the lines
join together).
3
If printing to the left produces more displaced lines compared to printing to the right, then the actual value of 2
WAY OFFSET for the print head is too small.
PH4:
12
PH1:
10
PH2:
11
PH3:
11
OK
OK
OK
PRINT
PAUSE
PRINT
PAUSE
PRINT
PAUSE
PRINT
PAUSE
+
-
+
-
+
-
+
-
OK
