Automatic print options
Markers
Location of automatic marker detection folder.
Patterns
Location of the automatic pattern detection folder.
Wait time
Time that software must wait for le arrival before starting le composition.
Maximum dimen-
sion
Maximum allowed dimension for a valid pattern (in mm).
Maximum pattern
size
Maximum valid le size for a pattern (in KB).
Separate multiple
HPGL
Sometimes a single HPGL le can contain multiple jobs. This option allows you to detect
and separate them automatically.
Composition name
Name that is assigned to the composition generated from the patterns.
Automatic composi-
tion
Determine if the composition of les is automatic upon reception or must be done manu-
ally.
Manual composition
You can check to see if the automatic send function is working by placing les in the specied folder. Within a few
seconds, these les should disappear from the folder, rasterize, and then appear in the job queue ready to be sent to
their corresponding plotter.
Put les in the automatic send folder. By default, these are on the desktop in the INCOMING/PLOTTER-DEFAULT
folder.

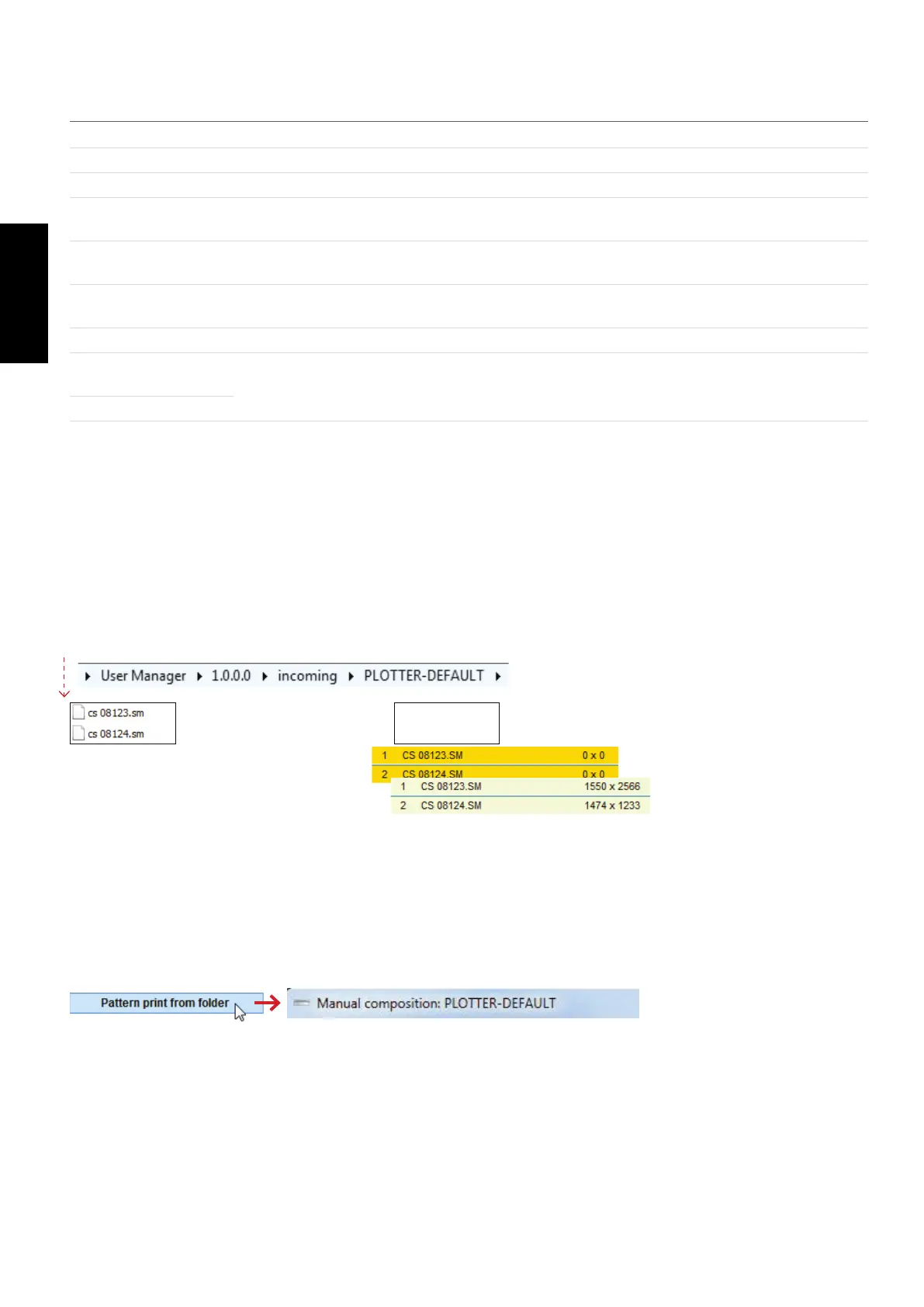

To use the automatic pattern detection folder, follow the procedure as shown.
Remember that when selecting the Manual composition option, detected patterns must be selected using the Manual
composition dialog box. To open the Manual composition dialog box, click Print options / Pattern print from folder.
Thelesarerecognizedandremoved...
..and appear in the User Manager job queue
where they are rasterized and remain ready
for sending.
