GERBERplotter MP Series User Manual
English

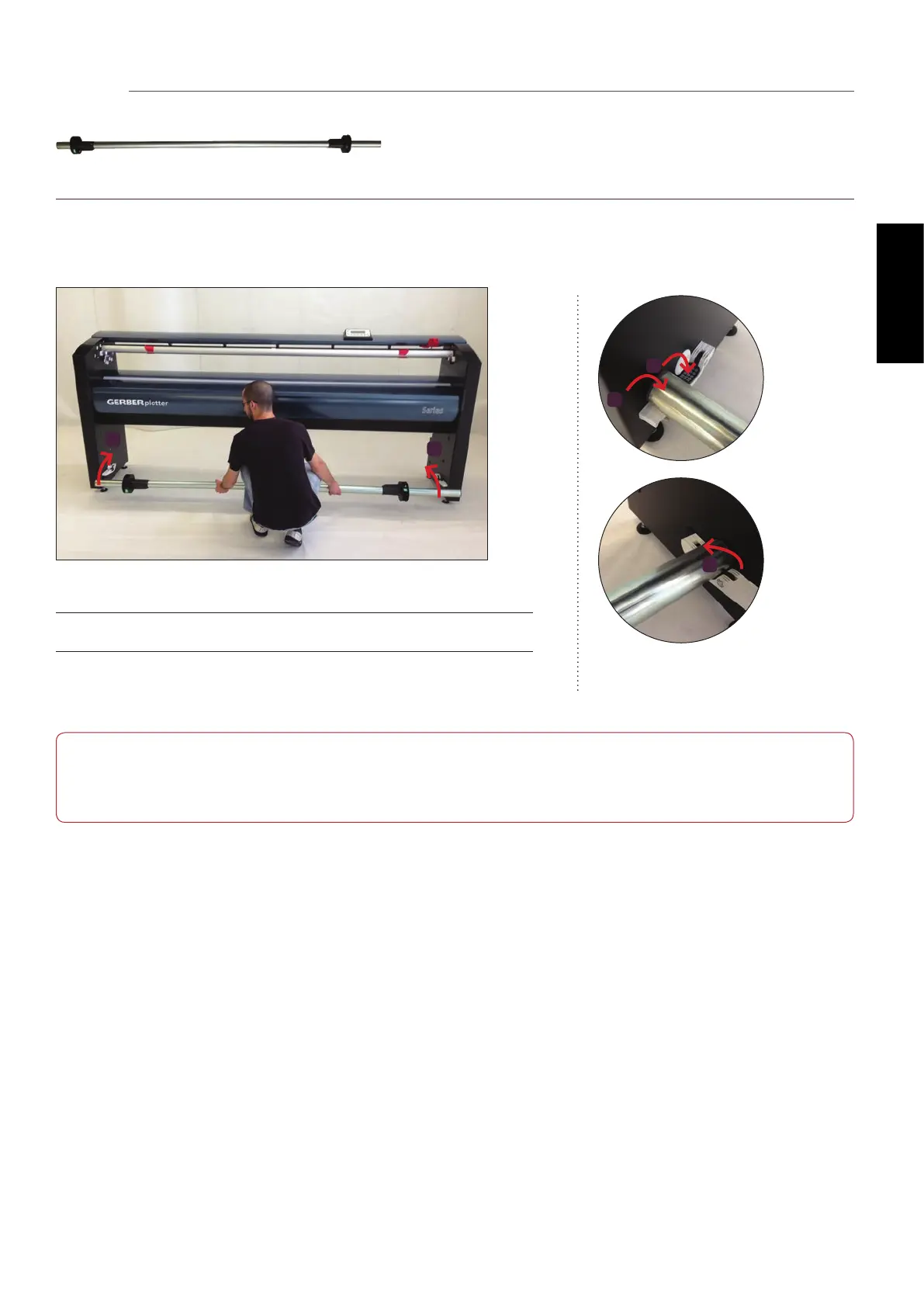

Paper support bar
Step 13 of 17
Fit the support bar for the paper rolls before installing plotter electronics.
1
Place the bar (CN225) onto the at side of the support.
2
Slide the bar into the locations shown.
As an option, you can supply an additional paper support bar that allows the operator to switch between
different types of paper or to have a greater quantity of the same paper readily available. The loading pro-
cedure is identical for both paper support bars.
3
CN225
2
3
2
2
13
