GERBERplotter MP Series User Manual
English
Electronic assembly

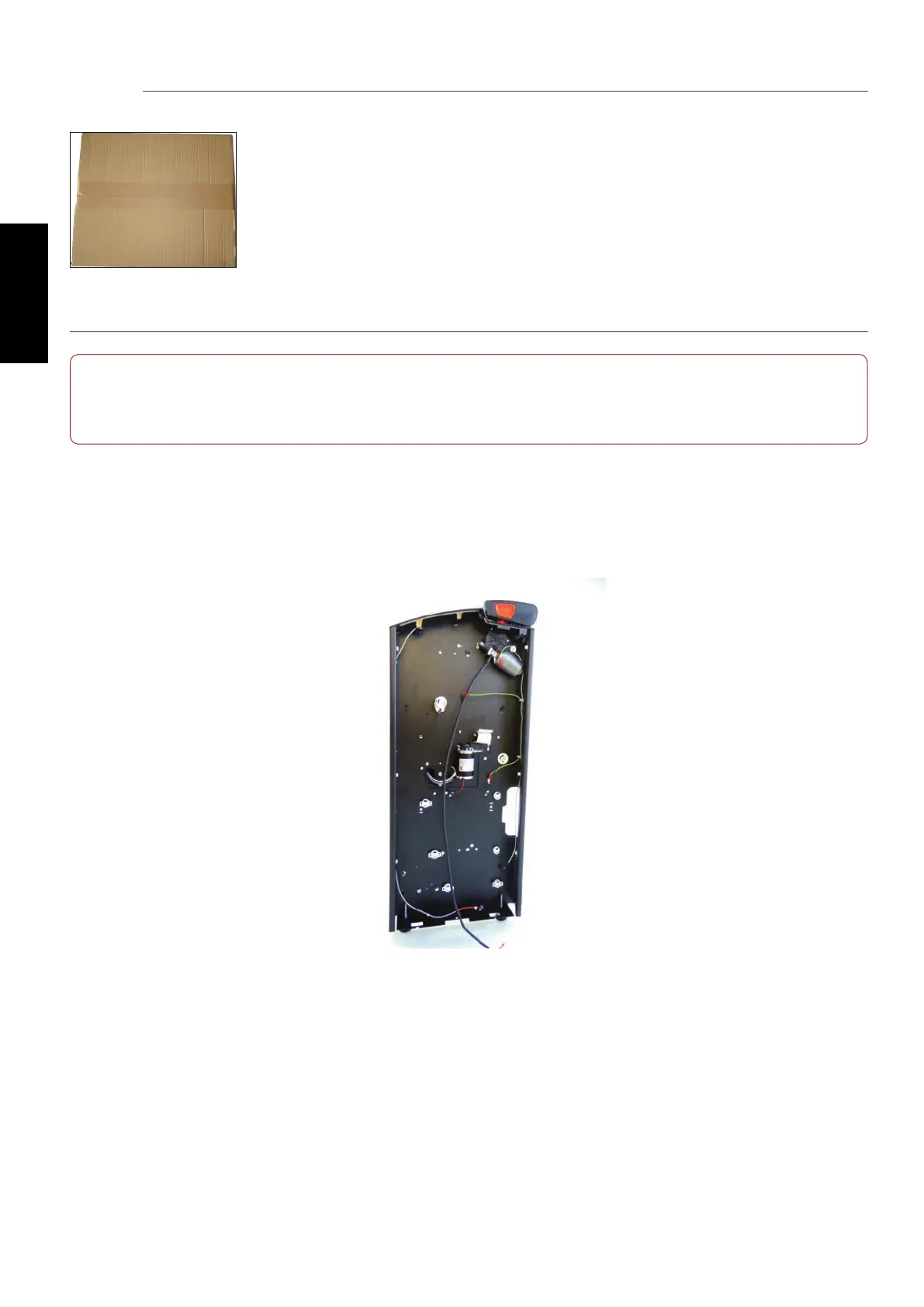

The following steps connect the electronics for the plotter. In the right side panel, there are eleven cables. Connect
these to the electronics that control the plotter.
The electronics in CN319 (box 3) include the plotter display unit, the net lter, the power supply cable, and
the master board. This set is integrated into the right-side panel assembly by connecting the appropriate
cables. Cables for the lower motor, RFID antennas, and top cover are already in the side panel.
Step 14of 17
CN319 (box 3)
14
