GERBERplotter MP Series User Manual
English
·
In the upper part of CN227, coming from the top cover (assembly
CN201) is a green and yellow earth cable and a gray cable labeled
CON43.
·
Coming from the RFID antenna right cover (assembly CN212) is a
cable labeled CON28.
·
The number of ribbon cables depends on the number of print heads
in the plotter: Plotters with two print heads use at cables CON8
and CON9, while plotters with four print heads add cable CON10..
·
Coming from the upper motor (paper tensioner) is a cable labeled
CON3.
·
Connect the green and yellow earth cable from the top cover to the
earth connection of the traction bar motor (top motor, inclined).
2
2
1
1
1
1
Electronic assembly
Step 14 of 17
14

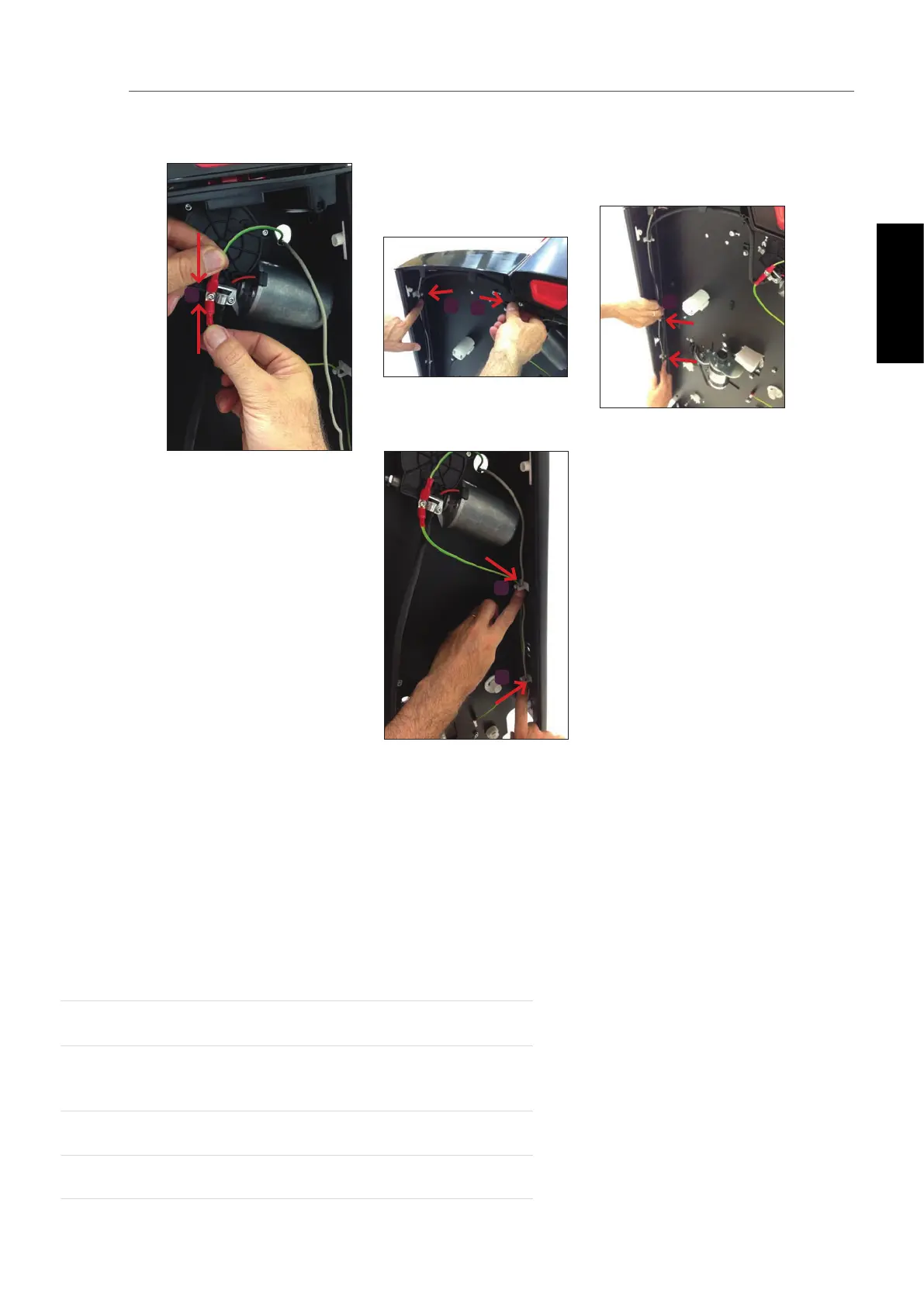

These images show how to adjust the cables to complete the electron-
ics assembly.
