GERBERplotter MP Series User Manual
English

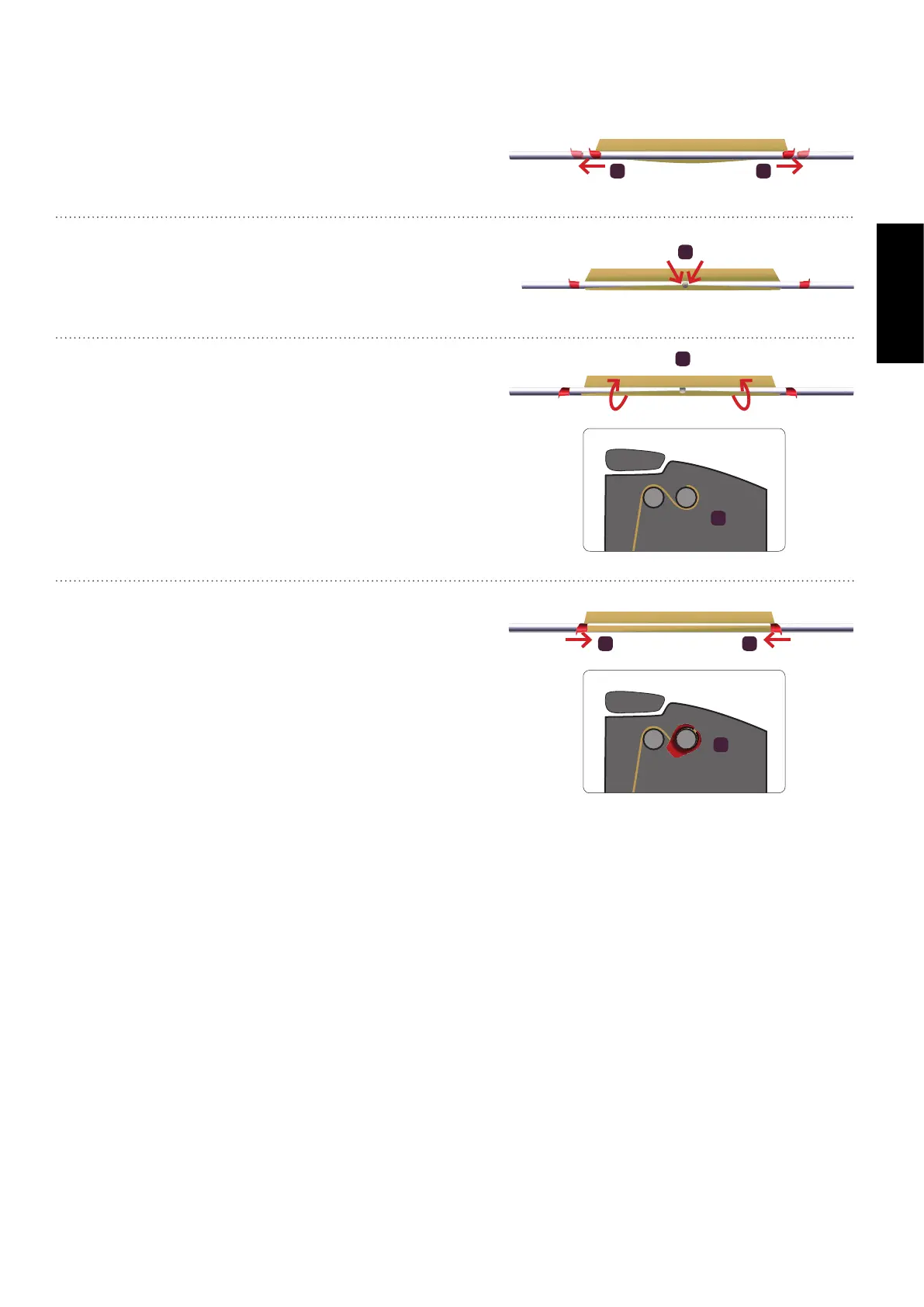

Fastening inverted paper
1
Slide both side clips towards the outside of the take-
up bar, away from the edges of the paper.
1 1
2
Fasten the paper to the center of the paper take-up bar
by tucking it under the center clip. This clip allows
some play between the paper and the bar.
2
4
Fasten the paper on both sides with the side fastening
clips in the vertical position. The paper enter through
the lower gap in the wings of the fastener, run over the
wing on the inside of the paper support bar and pass
underneath the wing on the other side.
4 4
3
Rotate the paper take-up bar in such a way that the pa-
per, which is held in place by the center clip, remains
taut. The leading edge of the paper should be on the
upper part of the take-up bar.
3
3
4
Set the paper to start printing in inverted position.
