GERBERplotter MP Series User Manual
English
Putting the inverter (see the picture in the right side of page) in the inverted position results in a change of direction
of rotation of the paper take-up bar, so that the printed side of the paper remains visible.

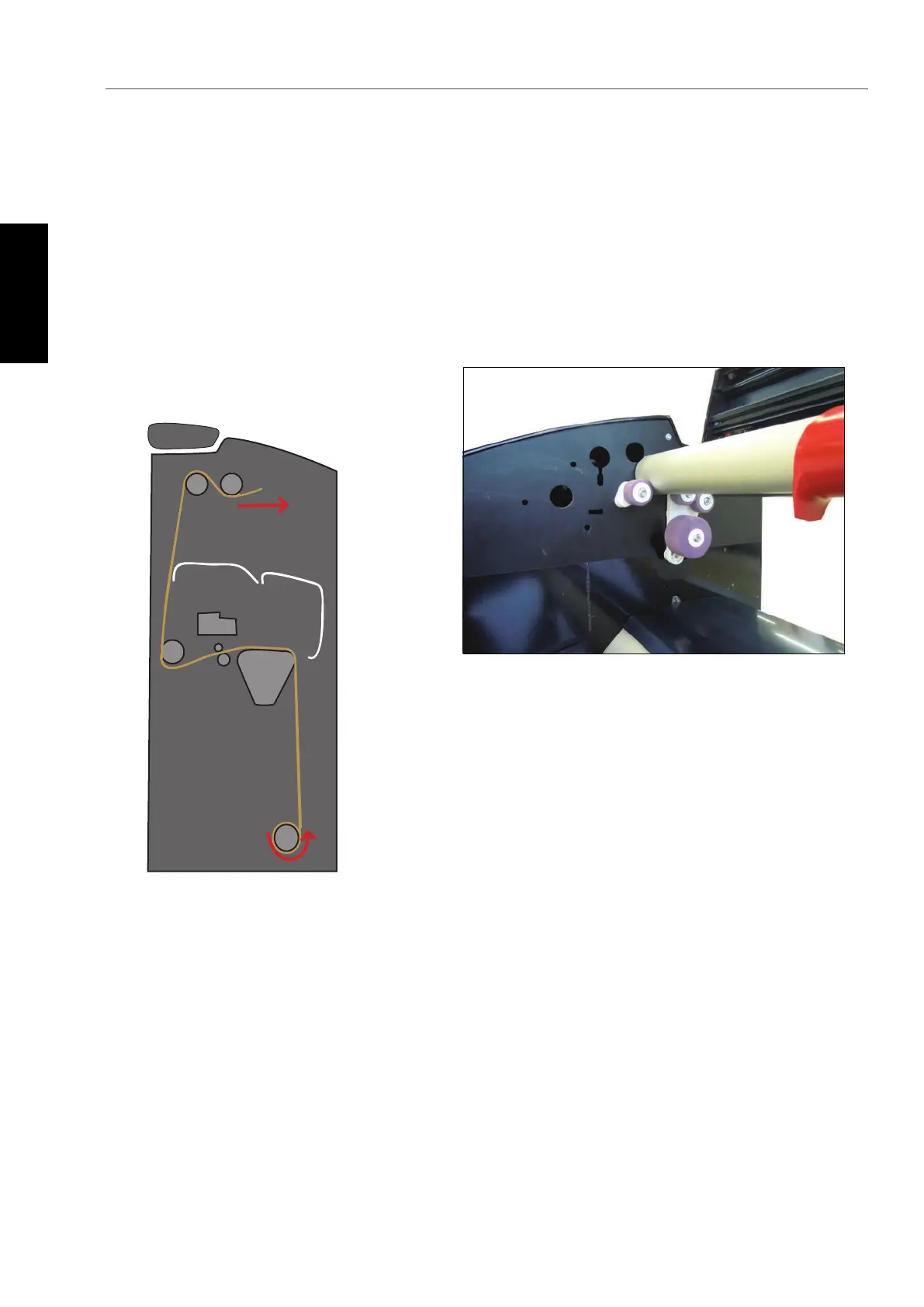

In the pictures, you can see the inverter in the inverted position (see the picture in the right side of page) and the
paper path from paper pull to the take-up bar (see the picture in the left side of page).
Step 5 of 5
5b
Paper collection (inverted position)
When the inverter is in the inverted position, the steps for loading the paper take-up bar are similar to those previ-
ously detailed. However, the paper must be fed underneath the take-up bar, and consequently the side fastening clips
must be tted upside down.
Inverter in inverted position.
