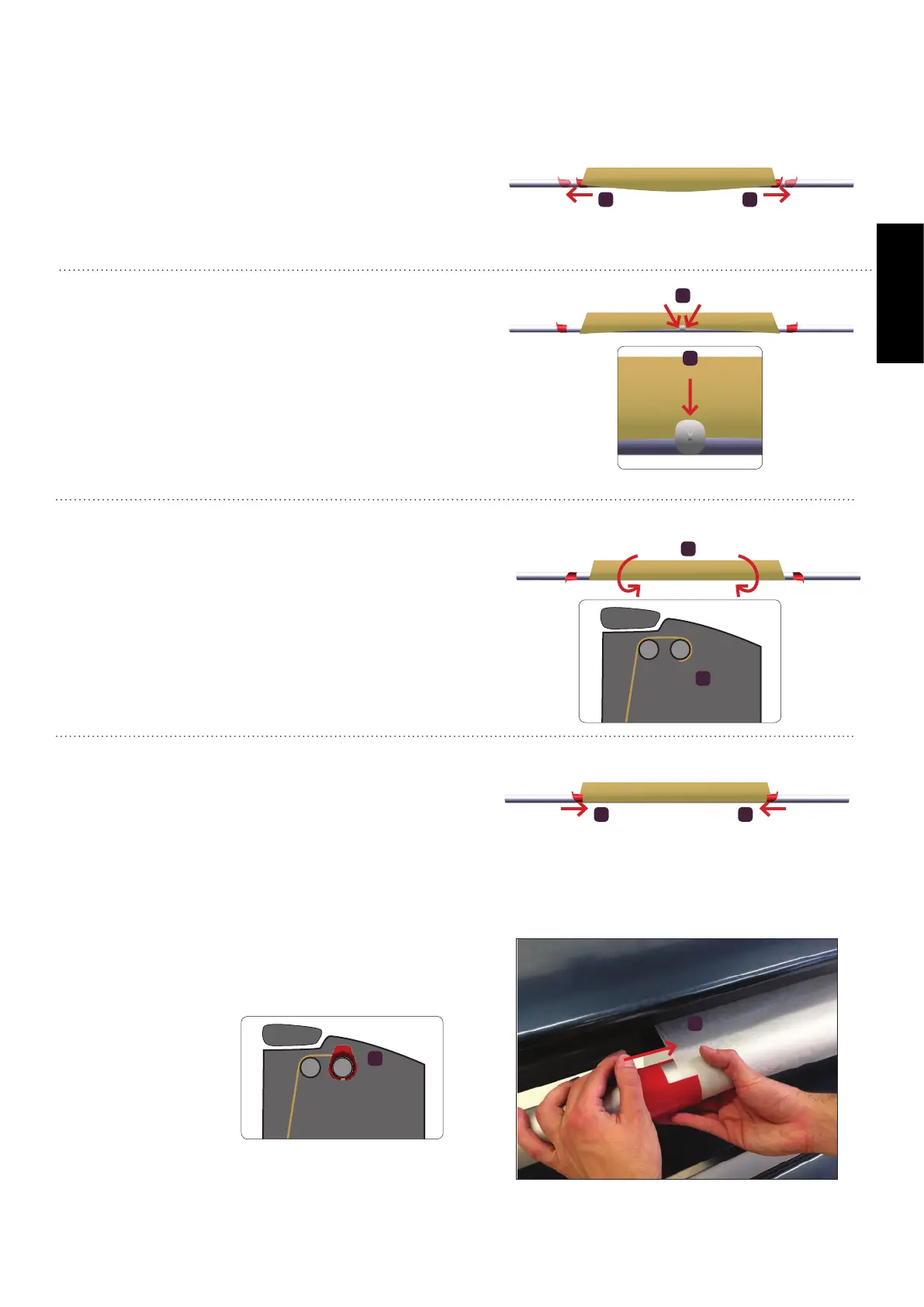

Fitting paper (standard position)
1
Slide both side clips towards the outside of the take-up
bar, away from the edges of the paper.
1 1
2
Fasten the paper to the center of the take-up bar by
inserting it under the center clip.
2
2
4
Fasten both sides of the paper using the side clips in
the vertical position. The paper enters through the up-
per gap in the wing of the fastener, running over the
wing on the inside of the paper support bar, and passes
underneath the wing on the other side.
4 4
3
Rotate the paper take-up bar in such a way that the pa-
per, which is held in place by the center clip, remains
taut. The leading edge of the paper should be on the
underside of the take-up bar.
3
4
3
4
Set the paper to start printing.
