To replace and adjust the swivel knife blade
WARNING: Blades are sharp. Take care when installing a new
blade
.
CAUTION: Do not handle the blade with other tools. It is fragile
and subject to breakage if mishandled
.
1. Remove the plastic adjustment
shoe from the base of the tool
holder by rotating it
counterclockwise until it comes
completely off the tool holder.
Leave the rubber O ring in
place.
With the shoe removed,
carefully remove the old blade
by grasping it with needle nose
pliers and pulling gently.
Install a new blade in the hole
provided, pushing the blade in
gently until completely seated.
Carefully thread the shoe onto
the knife holder, turning it
clockwise until it is fully
seated. This will fully expose
the knife blade.
Rotate the shoe counter-
clockwise until approximately
.005 inches (about the thickness
of two sheets of
paper) of the
knife is showing.

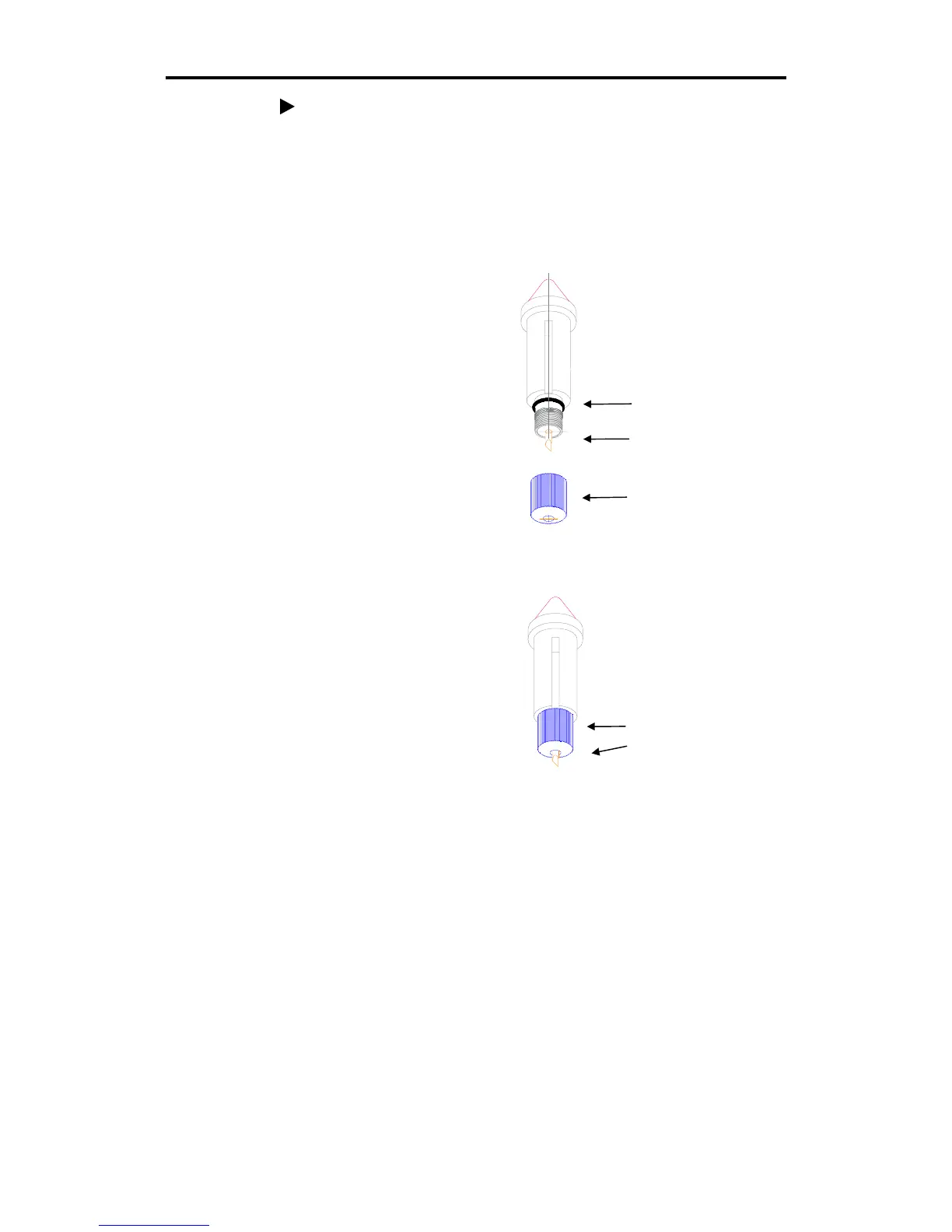

1. Remove shoe
3. Thread shoe
4. Adjust for proper cut
Rubber O ring
2. Insert and adjust
blade
