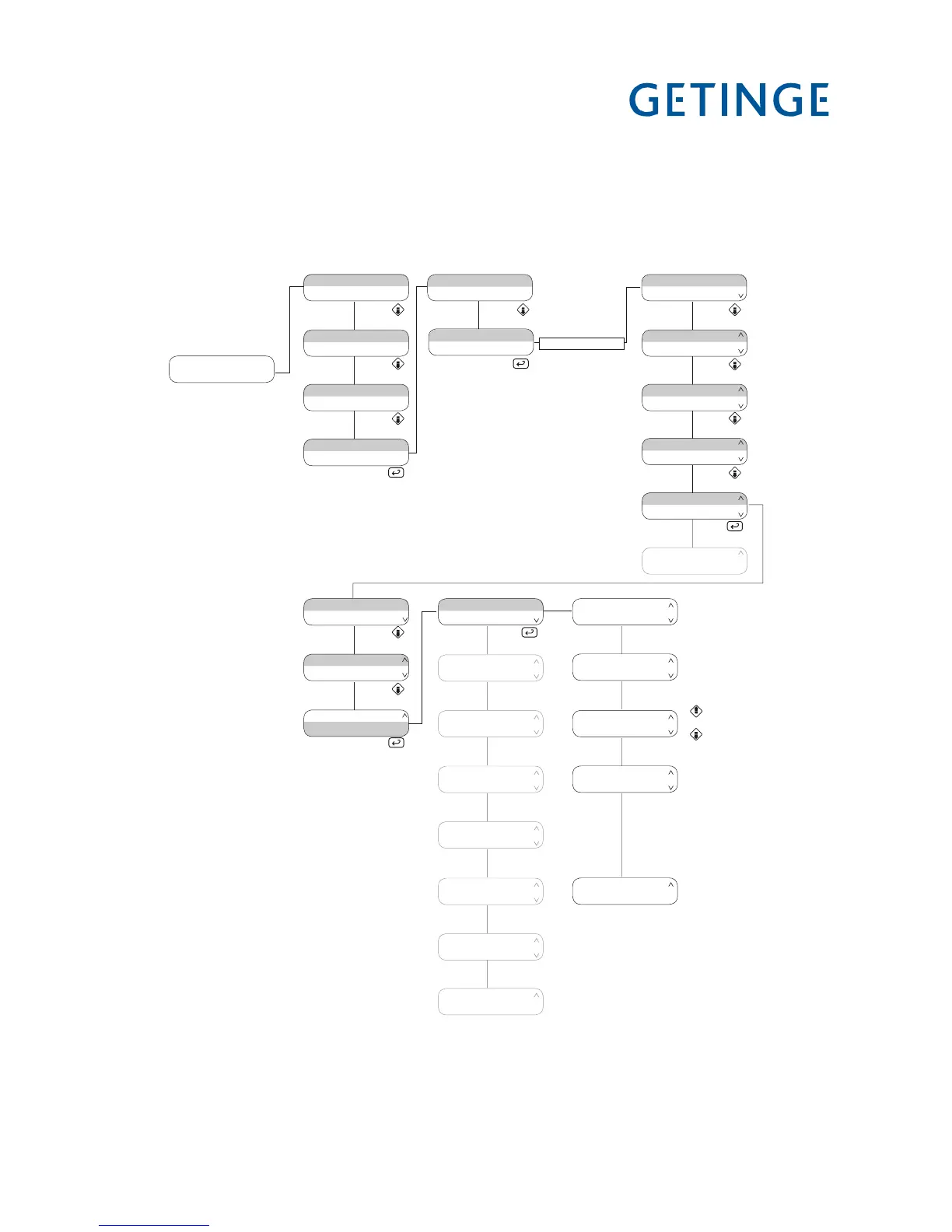

Test analog in menu (1.4.2.5.3.1)
These values are read-only. The status of various input data is displayed. The
various input data are pre-configured in the program. To see the various analog
input data, see Electrical diagram.
1.1
1.2
1.4.1
1.3
1.4
GETINGE PACS 300
VERSION 3.51 (0283)
P01 PROGRAM NAME
PARAM1 PARAM2
MACHINE NAME
PHASE NAME
CYCLE COUNTER
00000
SETTINGS
PRINT LAST CYCLE
SYSTEM
1.4.2.1
CALENDAR
CALIBRATION
1.4.2.2
1.4.2.3
CALIBRATION
CONFIGURATION
CONFIGURATION
DIP SWITCHES
1.4.2.4
1.4.2.5
1.4.2.6
DIP SWITCHES
SERVICE
SERVICE
SAVE RAM IN FLASH
SERVICE
SAVE RAM IN FLASH
1.4.2
SYSTEM
ABOUT
ENTER PASSWORD*
1.4.2.5.1
1.4.2.5.2
FAULT LOG
SERVICE MESSAGE
1.4.2.5.3.1
TEST ANALOG IN
TEST ANALOG UT
SERVICE MESSAGE
DIAGNOSTICS
1.4.2.5.3
SERVICE MESSAGE
DIAGNOSTICS
1.4.2.5.3.2
TEST ANALOG OUT
TEST DIGITAL IN
1.4.2.5.3.3
TEST DIGITAL IN
TEST DIGITAL OUT
1.4.2.5.3.4
TEST DIGITAL OUT
TEST USER FLAG
1.4.2.5.3.5
TEST USER FLAG
TEST SYS. FLAG
1.4.2.5.3.6
TEST SYS. FLAG
TEST PRINTER
1.4.2.5.3.7
TEST PRINTER
TEST LED & BUZZER
1.4.2.5.3.8
TEST PRINTER
TEST LED AND BUZZER
1.4.2.5.3.1.1
00 XXXXXXXXXX
XXX.X
1.4.2.5.3.1.2
01 XXXXXXXXXX
XXX.X
1.4.2.5.3.1.3
02 XXXXXXXXXX
XXX.X
1.4.2.5.3.1.4
03 XXXXXXXXXX
XXX.X
1.4.2.5.3.1.32
31 XXXXXXXXXX
XXX.X
* Service personnel password required
