Getinge 86 SERIES Technical Manual

<Doc_TEC><Doc_502606900><Rel_B><Lang_GB>
Page 90 of 174
V1452
Door switch
DOOR
UNLOCKED
Door switch
DOOR LOCKED
Door switch
DOOR CLOSED
Door

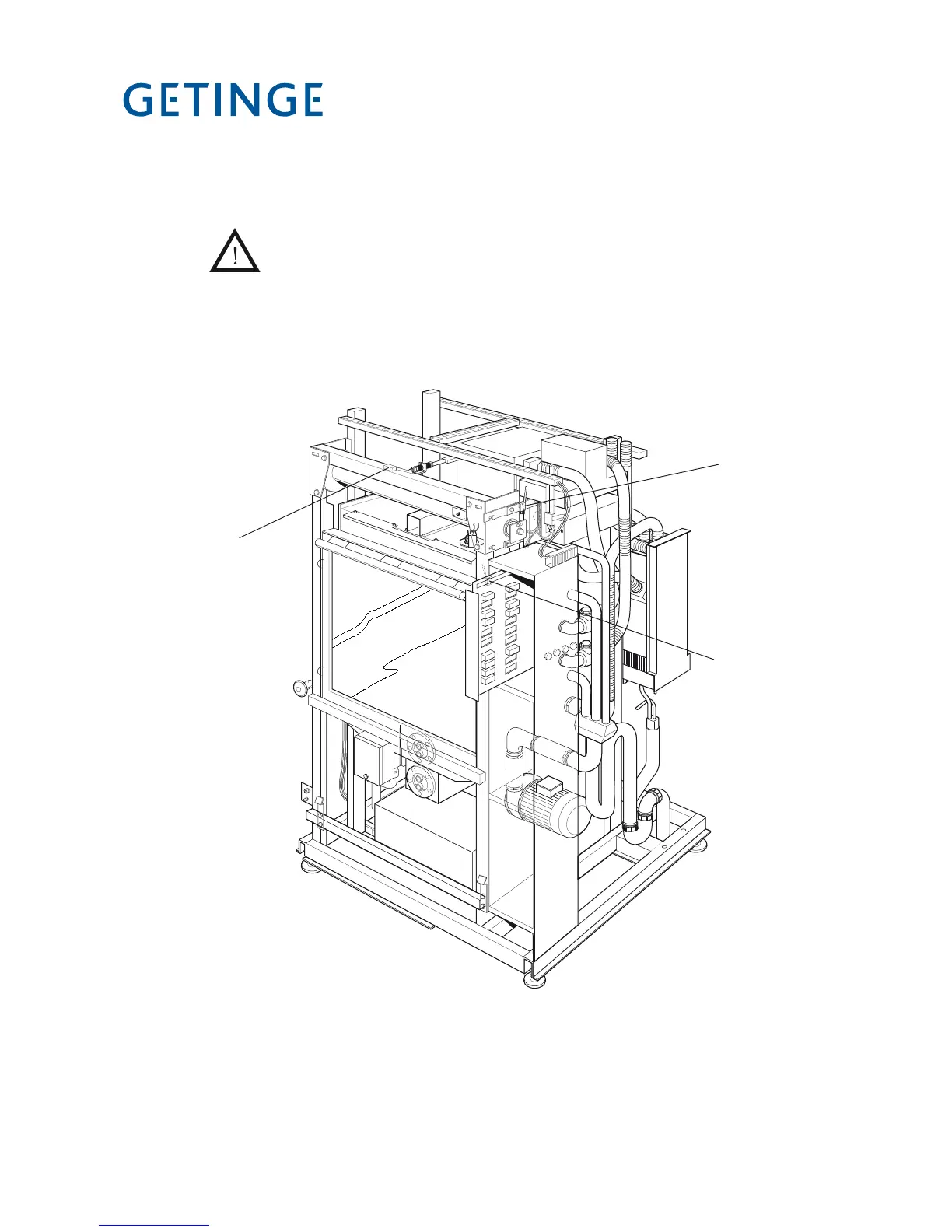

Position and operation, door switches
This may only be done by authorized personnel.
Before starting work, make sure that the machine is isolated from the electric
power supply.
Do not use magnetic material when adjusting the “Door locked” switch.
Theillustrationsshowwhichdoorswitchesarettedtoamachinewithmanualorauto-
matic door.
Manual door:
When the door is at its top position, the DOOR CLOSED and DOOR UNLOCKED
switches are activated. When the motor has pulled the door into its inner position, the
DOOR LOCKED switch is activated.
