GETINGE PACS 300
VERSION 3.51 (0283)
P01 PROGRAM NAME
PARAM1 PARAM2
MACHINE NAME
PHASE NAME
CYCLE COUNTER
00000
SETTINGS
PRINT LAST CYCLE
SYSTEM
1.4.2.1
CALENDAR
CALIBRATION
1.4.2.2
1.4.2.3
CALIBRATION
CONFIGURATION
CONFIGURATION
DIP SWITCHES
1.4.2.4
1.4.2.5
1.4.2.6
DIP SWITCHES
SERVICE
SERVICE
SAVE RAM IN FLASH
SERVICE
SAVE RAM IN FLASH
1.4.2
SYSTEM
ABOUT
ENTER PASSWORD *
1.4.2.5.1
1.4.2.5.2
FAULT LOG
SERVICE MESSAGE
1.4.2.5.3.1
TEST ANALOG IN
TEST ANALOG UT
SERVICE MESSAGE
DIAGNOSTICS
1.4.2.5.3
SERVICE MESSAGE
DIAGNOSTICS
1.4.2.5.3.2
TEST ANALOG UT
TEST DIGITAL IN
1.4.2.5.3.3
TEST DIGITAL IN
TEST DIGITAL OUT
1.4.2.5.3.4
TEST DIGITAL OUT
TEST USER FLAG
1.4.2.5.3.5
TEST USER FLAG
TEST SYS. FLAG
1.4.2.5.3.6
TEST SYS. FLAG
TEST PRINTER
1.4.2.5.3.7
TEST PRINTER
TEST LED AND BUZZER
1.4.2.5.3.8
TEST PRINTER
TEST LED AND BUZZER
1.4.2.5.3.2.1
00 XXXXXXXXXX
XXX.X
1.4.2.5.3.2.2
01 XXXXXXXXXX
XXX.X
1.4.2.5.3.2.3
02 XXXXXXXXXX
XXX.X
1.4.2.5.3.2.4
03 XXXXXXXXXX
XXX.X
1.4.2.5.3.2.8
07 XXXXXXXXXX
XXX.X

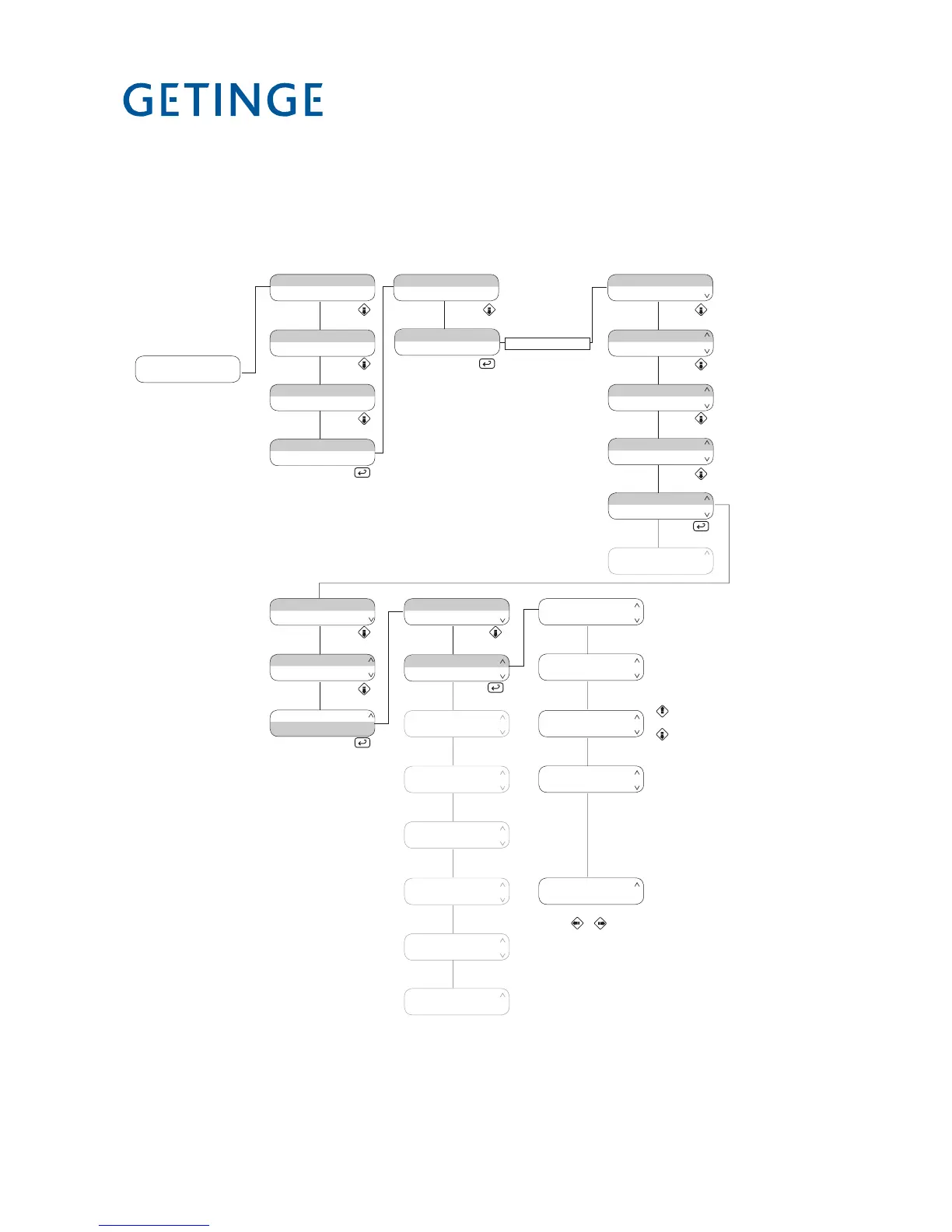

Test analog out menu (1.4.2.5.3.2)
These values can be read and written. The status of various input data is
displayed. Every item of output data can be set to the manual mode and a value
can be set for output. The various items of output data are pre-configured in the
program. To see the various items of analog output data, see Electrical diagram.
Fan
0% speed 0
25% speed 1
50% speed 2
100% speed 3
* Service personnel password required
