V1561
Repair and adjustment
Connecting a PC
An RS-232 cable is needed to connect a PC to the washer-disinfector.
Proceed as follows:

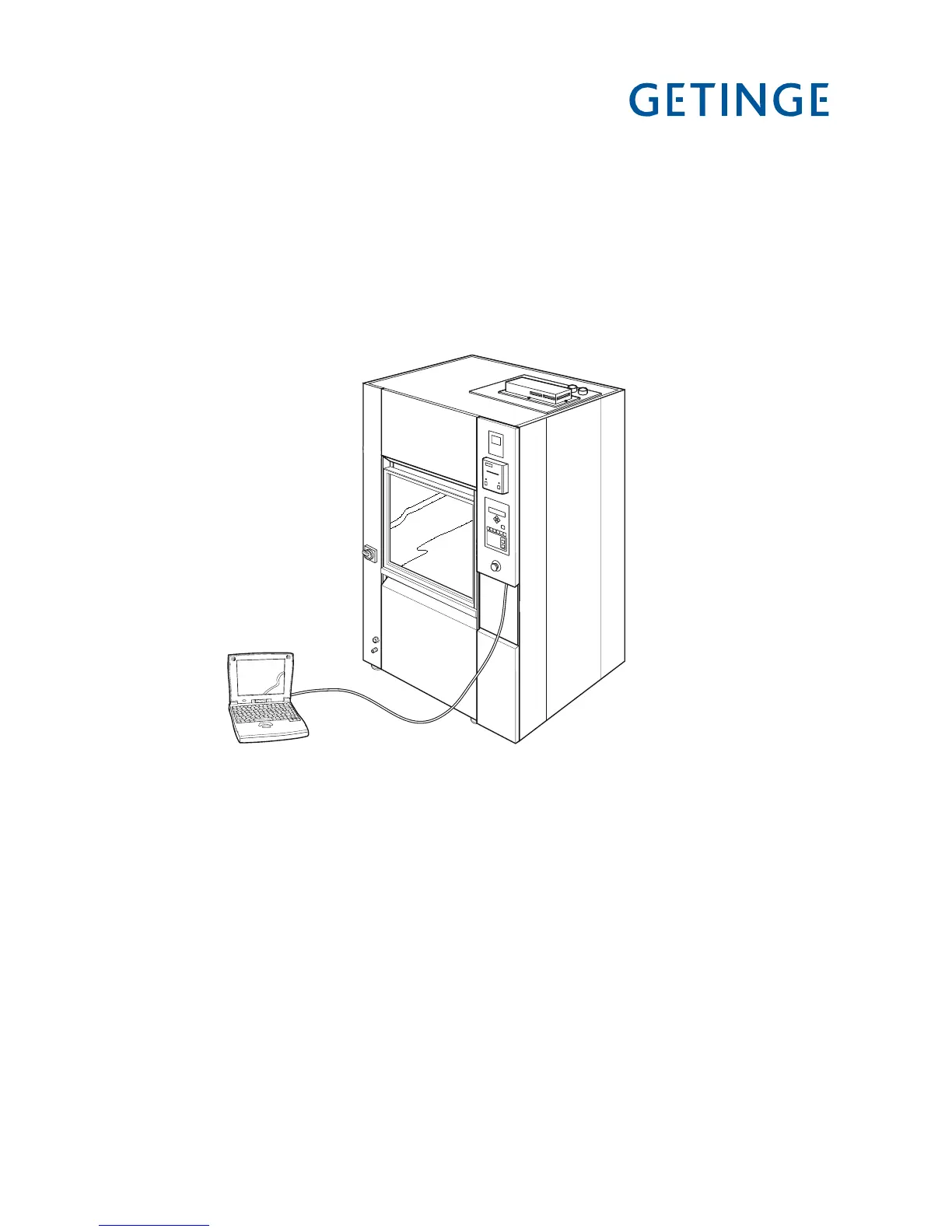

1. Connect a cable between the PC and port X24 or X25 as shown below.
- X24 is mainly used for a PC and (for example) a scanner.
- X25 is used mainly for T-doc (RS485) and printer (RS232 or RS485).
2. Set type of communication. The communication settings are done in the service pro-
gram; see under tab 5 Software description and settings.
Proceed as follows if the PC is:
...connected to port X24
- Go into Communication setup COM 0 (1.4.2.3.5.1); see tab 5 Software descrip-
tion and settings.
- Choose COMLI PROTOCOL and press S. Exit the service program.
...connected to port X25
- Go into Communication setup COM 1 (1.4.2.3.5.2); see tab 5 Software descrip-
tion and settings.
- Choose COMLI PROTOCOL and press S.
- Go into Communication setup COM 1 (1.4.2.3.5.3); see tab 5 Software descrip-
tion and settings.
- Depending on the distance between the computer and the washer-disinfector,
choose communication speed RS232 (<5 meters) or RS485 (> 5 meters) and press
S. Exit the service program.
