Temperature sensor - with ice bath and oil bath
Proceed as follows to calibrate the temperature sensors with the aid of an ice bath and
an oil bath:
1. Connect a PC with the CS 1000 program installed to the disinfector. (If the machine
isequippedwithamonitoringsystem,thePCmustbeconnectedtothatasdescribed
in Chapter 9.)
2. Prepare an ice bath and an oil bath.
The ice bath must consist of crushed ice in a bowl of cold water. The bath must stand
for at least 20 minutes so that the temperature can stabilize.
The oil bath must be switched on for at least 45 minutes at the set temperature
(100 ºC) to stabilize the temperature.
3. Remove the temperature sensors from the disinfector. Tape the sensors together.
4. Lower the temperature sensors into the ice bath together with an external thermometer.

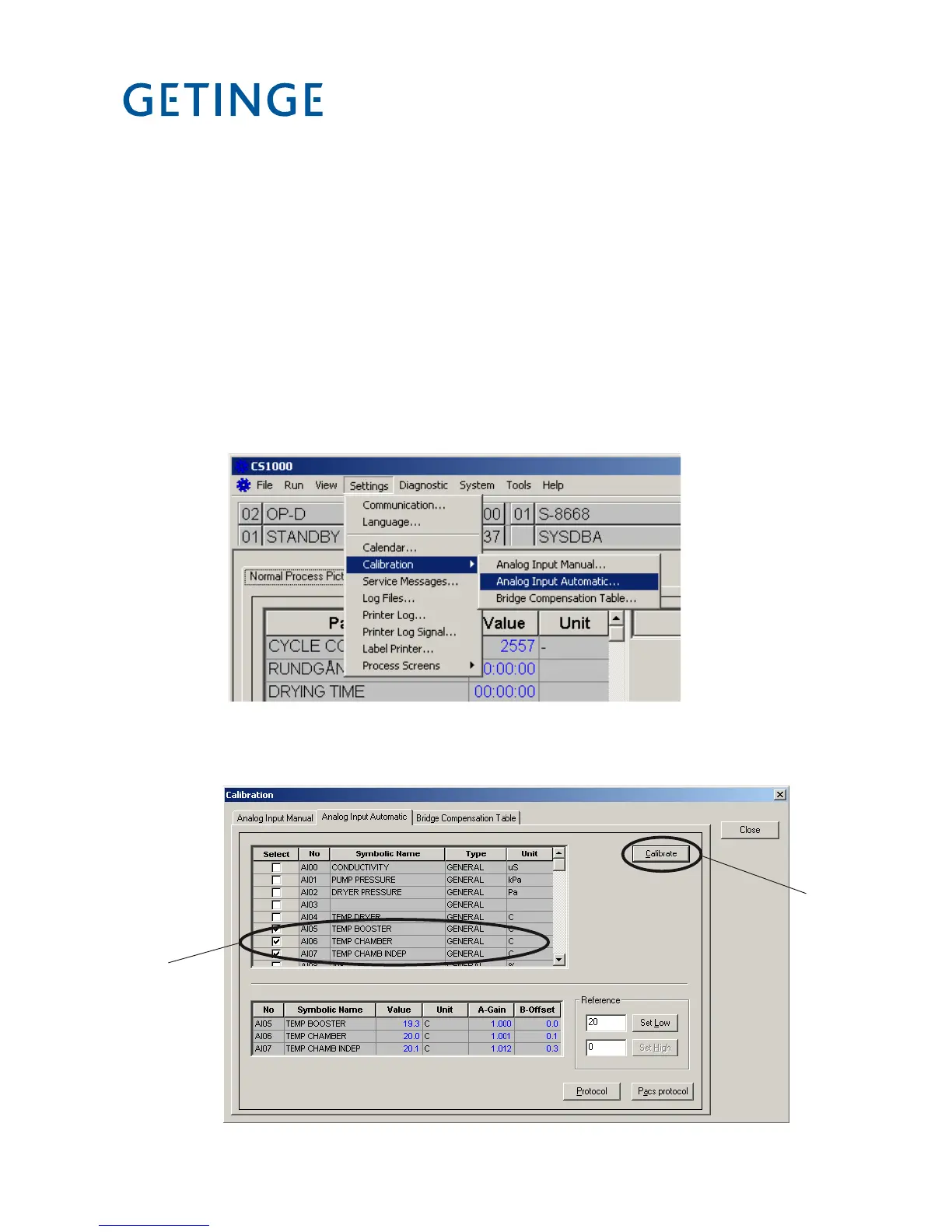

5. Start CS 1000 and choose Settings/Calibration/Analog Input Automatic...
6. Click Temp booster, Temp chamber and Temp chamb indep (A), then click
Calibrate (B).
V1563
A
B
