GM Energy V2H Bundle Installation Manual 87

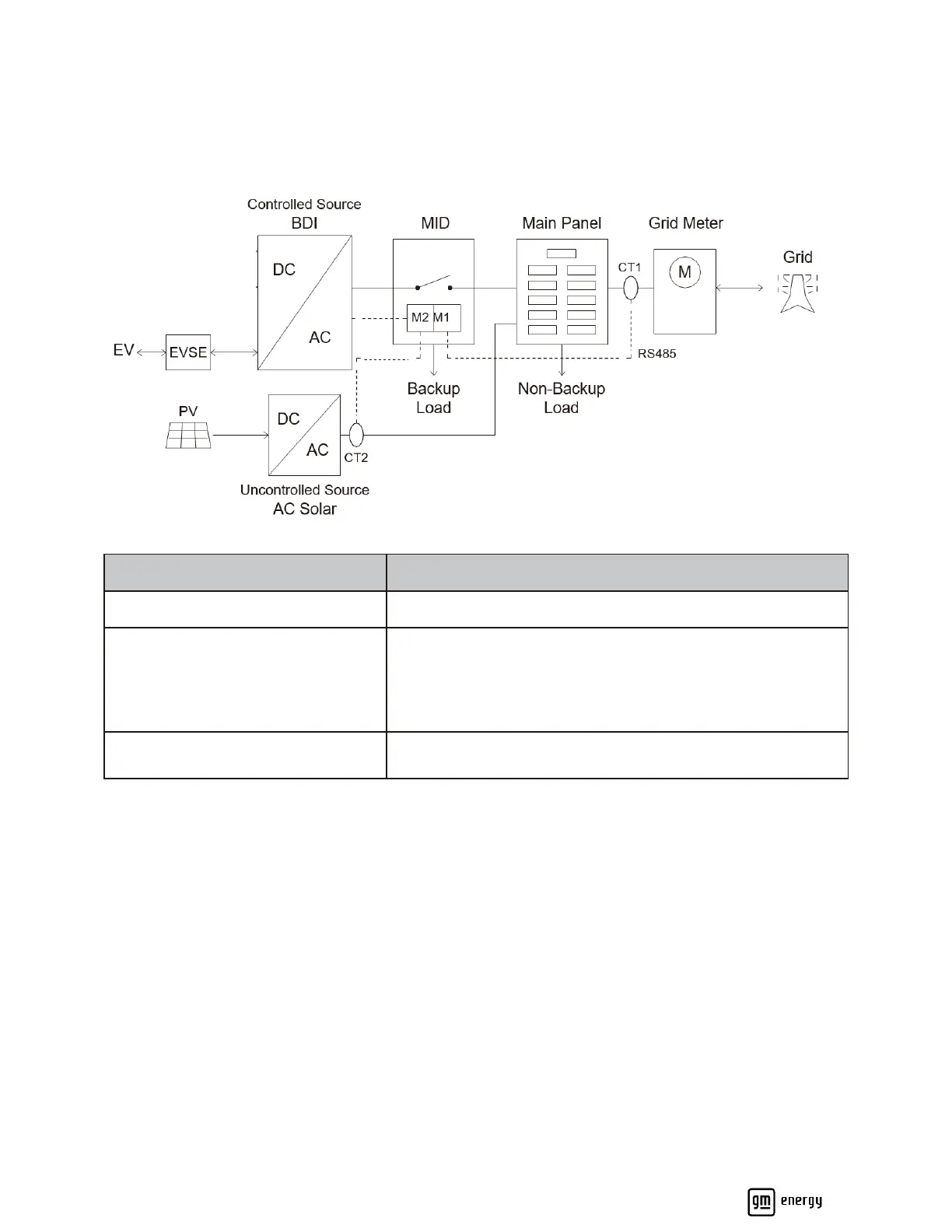

Partial Home Backup With Existing AC Solar at the Main Service Panel (or non-backup panel)
For this setup, CT1 is placed at the grid meter and CT2 is placed at the existing solar. The existing solar will stay on the non-
backup load part of the system. The installer will need to calculate an export limit by utilizing the busbar capacity, main breaker
rating, and existing AC solar rating.
Commissioning App PCS Settings
Input
CT location
CT(1) at grid meter
Export Limit Current
Perform the following calculation for this input:
1.2 x Busbar Capacity – Main Breaker Rating – AC Solar
Rating
(Default can be set to 0 A for V2H Installs)
AC Solar
Enabled
