RCS User Manual
26
1.2.- Input/Output
This feature allows to enable all the inputs/outputs that the user wants to, both RF and ASI or IP
(option 902518).
This window depends on the RCS model: RCS50 has 1 RF input and 1 ASI output (option 902554),
RCS100 has 1 RF input, 1 ASI input and up to 8 IP stream input (option 902518), and the RCS400
has 4 RF inputs, 4 ASI inputs, and up to 8 IP stream input (option 902518).

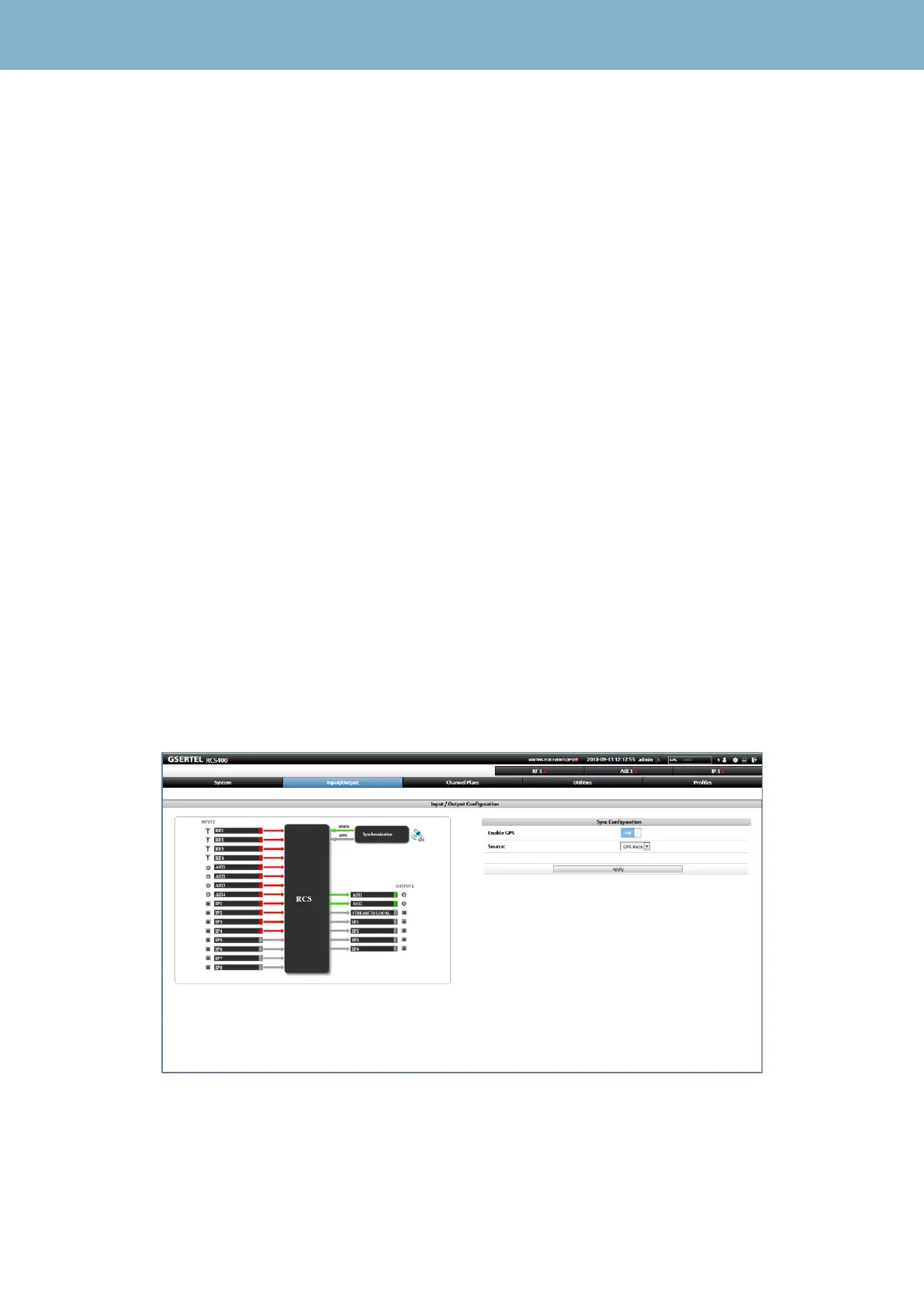

To setup the RCS inputs and outputs the web application has an inputs/outputs matrix. The inputs
are placed on the left side of the matrix, and the outputs on the right side.
The grey color indicates that the input is disabled.
The red color indicates that the input is enabled, but the signal is not locked.
The blue color indicates that the input is enabled, the signal is locked and operating in polling mode.
The yellow color indicates that the input is enabled, the signal is locked and operating in spectrum
mode.
The green color indicates that the input is enabled, the signal is locked and operating in a mode
different from polling and spectrum.
The RCS 400 has the capability to operate with 12 signals at the same time, so if it has the option
902518 (IP inputs), the user will select the inputs he wants to operate with. So, if a RCS400 has 12
enabled inputs, the user must disable one of them if he wants to enable a new one.
On the right side of the matrix, you can see a panel with the parameters needed to set up that input
or output.
Note: The GPS synchronization block is shown only in the RCS with the external GPS option
