7.- Polling
Using this feature, the RCS is able to monitor sequentially all the channels that the user has
selected in the channel plan.
Polling feature is available only for RF and IP inputs (IP inputs only for option 902518 for RCS100
and RCS400).
When the user selects another window of the application, the RCS displays a warning notifying you
that is going to stop the polling mode.
The Polling window has three sheets, explained bellow:
7.1.- Polling
This is the window where measurements are displayed. But there are some differences between RF
input and IP input.

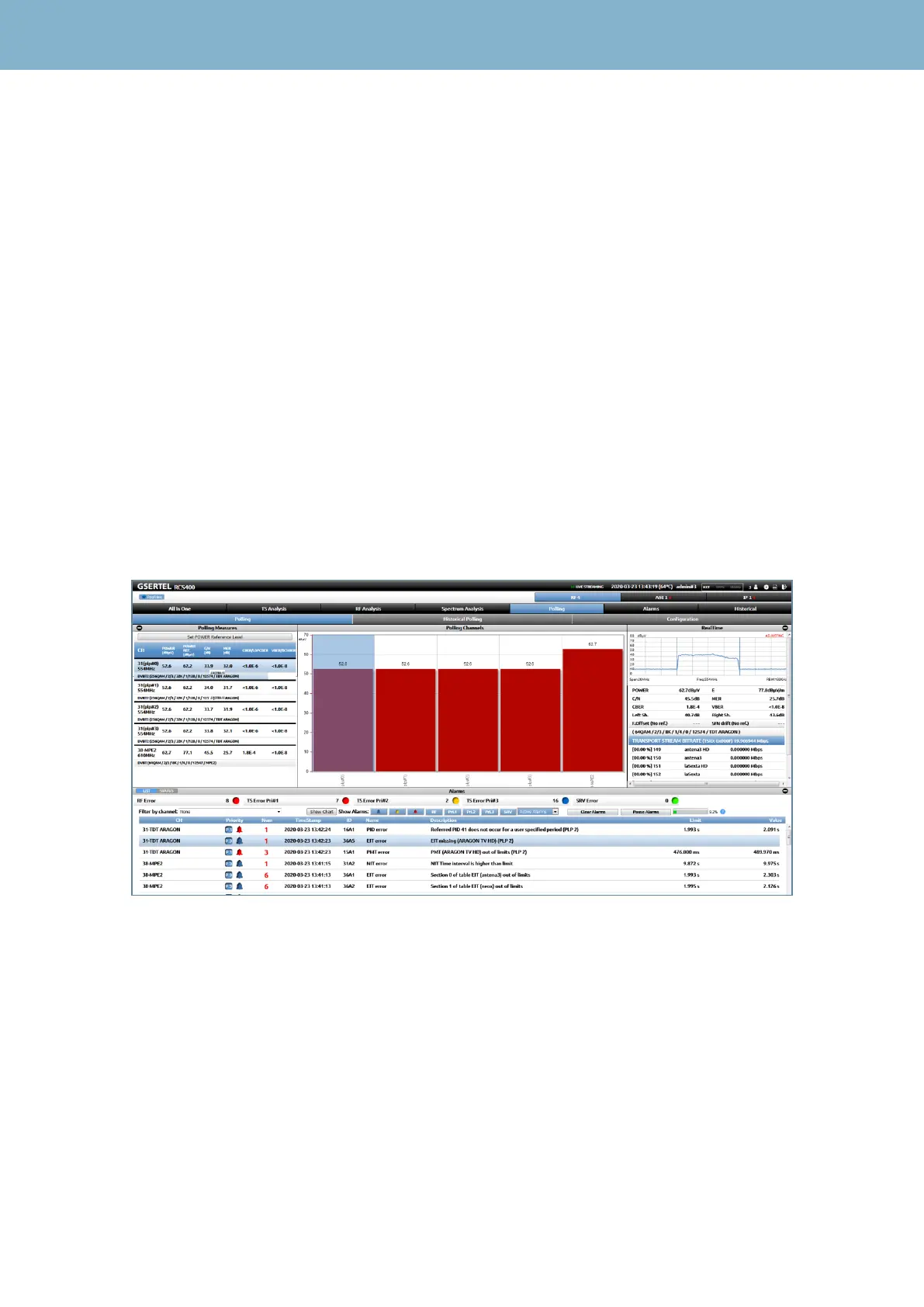

If it is selected a RF input, the polling window looks like this:
As you can see in the image above, if one of the channels included in the polling is a multi-PLP
channel, all the PLP will monitored sequentially and will be included in the Polling Channels Window
separately.
On the center of the window, there is a bars graph where the height represents the power
measurement. The colors of the bars depend on the alarms: if a channel has an active alarm, the
bar shows the color of the alarm (red, yellow or blue). If the channel doesn’t have any active alarm,
the bar may have two colors:
Green: there wasn’t any active alarm since the last time the alarms cache was deleted.
Purple: there isn’t any active alarm currently, but there was one active alarm at least, since the last
time the alarm cache was deleted.
