RCS User Manual
87
10.- Network Delay -Option 902512 only for RCS100 and RCS400-
This function measures the transmission delay from the distribution center of the transport stream to
the RCS ASI input.
This feature is available only when an ASI or IP input is selected. The equipment must have a
synchronization signal 1PPS, 10 MHz (See section Description of the Equipment Components).
By using this feature, you can verify that the network delay in not higher than the maximum delay
fixed by the operator.

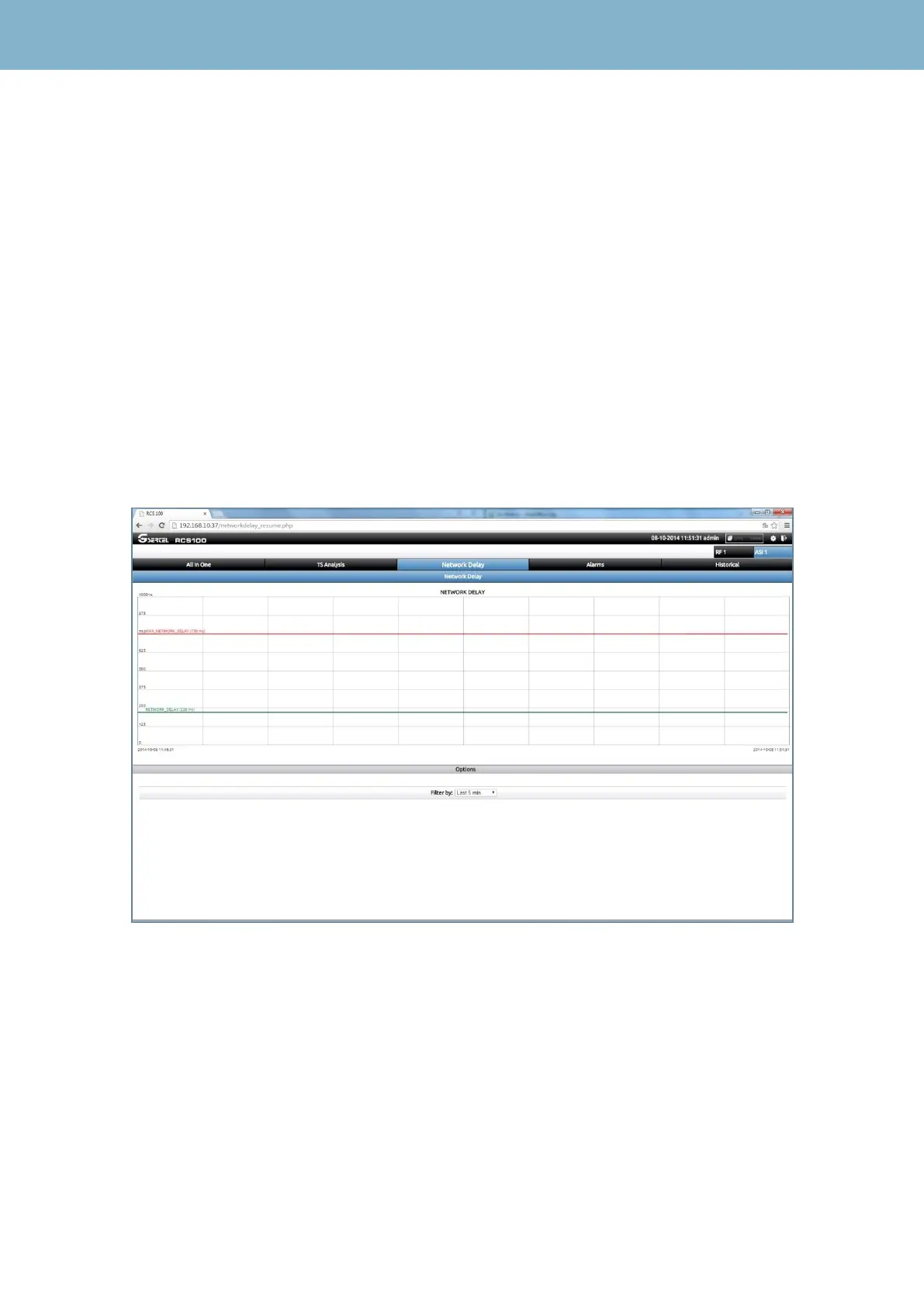

The maximum network delay is shown in the graph with a red line. This value is set by the operator.
The network delay measured by the RCS is shown as a green line. This value should never be
higher than the maximum network delay.
