RCS User Manual
43

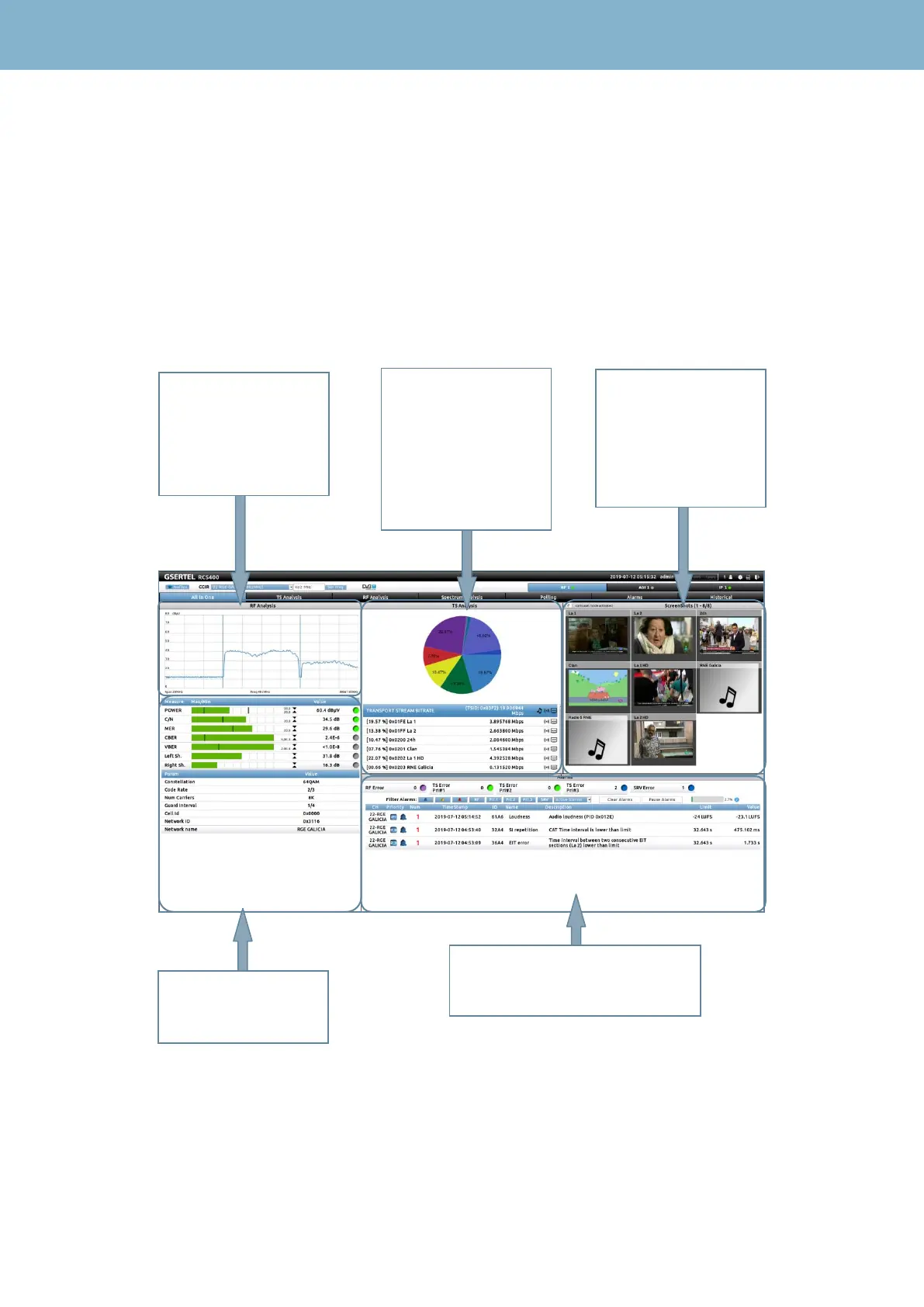

2. All in One –Option 902553 for RCS50-
This feature allows the user to have a global vision of the status of the selected input in a single
screen.
This feature is available for RF, ASI and IP inputs, but there are some differences depending on the
type of the selected input (RF, ASI or IP).
The user can select the channel he wants to analyze by clicking on the drop down list placed at the
top left corner of the screen.
List of measurements in
the selected channel.
Bellow you can see the
parameters of the signal.
List of alarms generated by the system,
grouped by ID. Clicking on an alarm of
the list, a window with detailed
information will be open
Spectrum of the selected
cannel –only available if RF
input is selected-
Span 20 MHz and
reference selected
automatically, according to
the signal
Distribution of transport
services and the bitrate of
each one.
When the T2-MI mode is
on (option 902513 only for
RCS100 and RCS400), this
feature shows the bitrates
corresponding to the T2-
MI packets.
Mosaic with the
screenshots of all the
services of the channel
that are refreshed
continually.
Right-click on a capture, to
see a submenu explained
below.
