RCS User Manual
66
5.- RF Analysis
This feature allows a comprehensive analysis of the RF input.
This feature is not available when the IP input is selected (option 902518).
The user can select the channel he wants to analyze by clicking on the drop down list placed at the
top left corner of the screen.
If the ASI input is selected, we will not have access to this feature.
The RF Analysis window has several sheets, explained bellow:
5.1.- Measurements

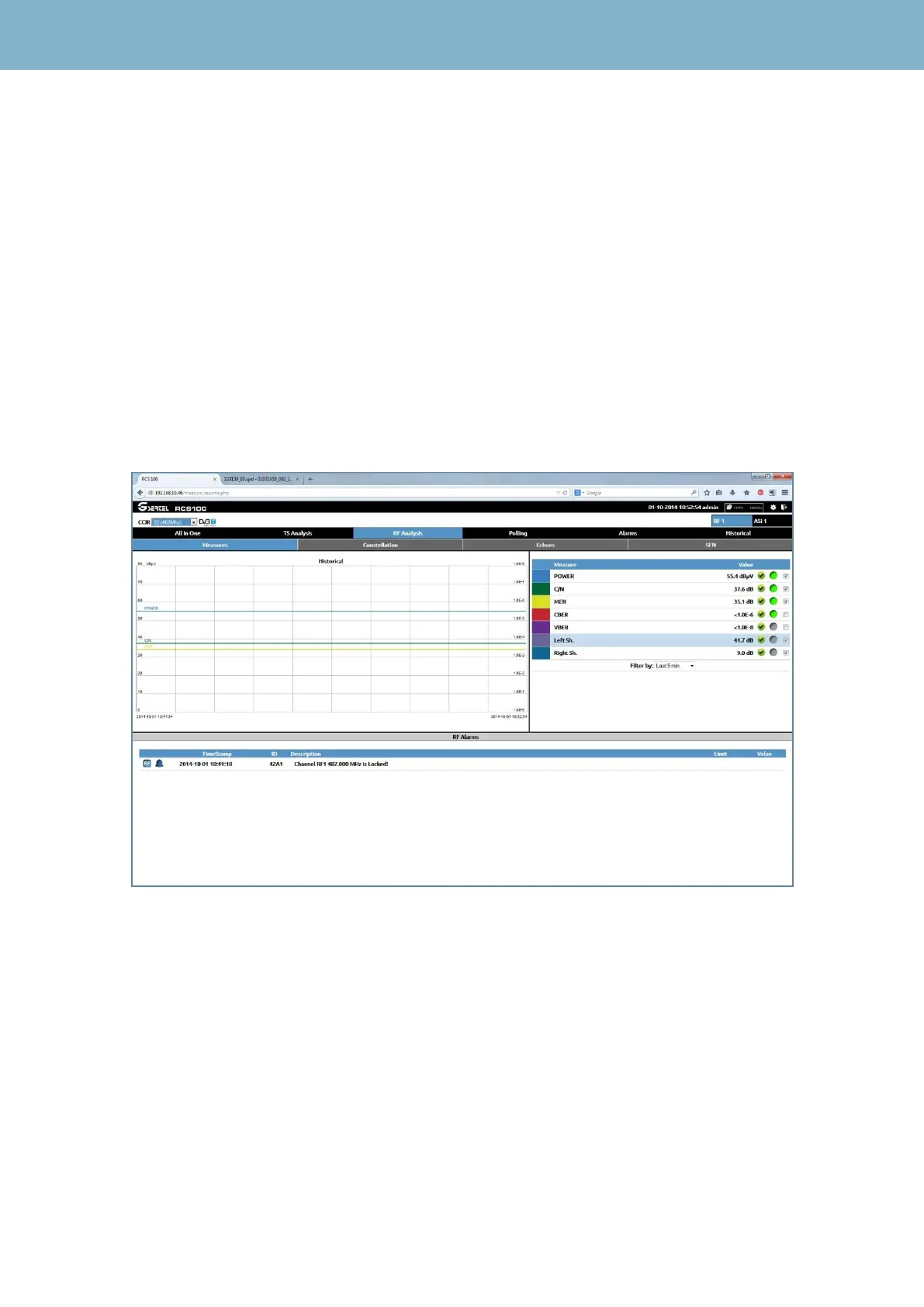

In this window you can see a graph with the evolution of the measurements in a time interval
selected by the user.
The measurements shown are: Power, C/N, MER, CBER, VBER, Left shoulder, Right shoulder and
Frequency offset (opt. 902529).
The colors of the bars are related to the alarms thresholds.
Circles colors match the color of the worst alarm generated during the period of time that has been
measured.
To check the configuration of the alarms, see section 1.5.1.- Alarms Profiles.
