G
F
DC
E
B
A
© Guldmann GB/US-09/2016 • #550376_3
12
GENERAL INFORMATION
Technical specifications
GH3 and GH3+
Weight and materials
SWL : 200 kg (440 lbs), 250 kg (550 lbs)
Own weight : 9,6 kg (21.1 lbs)
with horizontal motor : 10,5 kg (23.1 lbs)
with scale module
and horizontal motor : 11,1 kg (24.5 lbs)
SWL : 300 kg (660 lbs), 350 kg (770 lbs)
375 kg (825 lbs)
Own weight : 14,2 kg (31 lbs)
with horizontal motor : 15,9 kg (35 lbs)
with scale module
and horizontal motor : 17,3 kg (38 lbs)
Covers : Impact-resistant UL 94 V-0 flame
retardant recyclable plastic

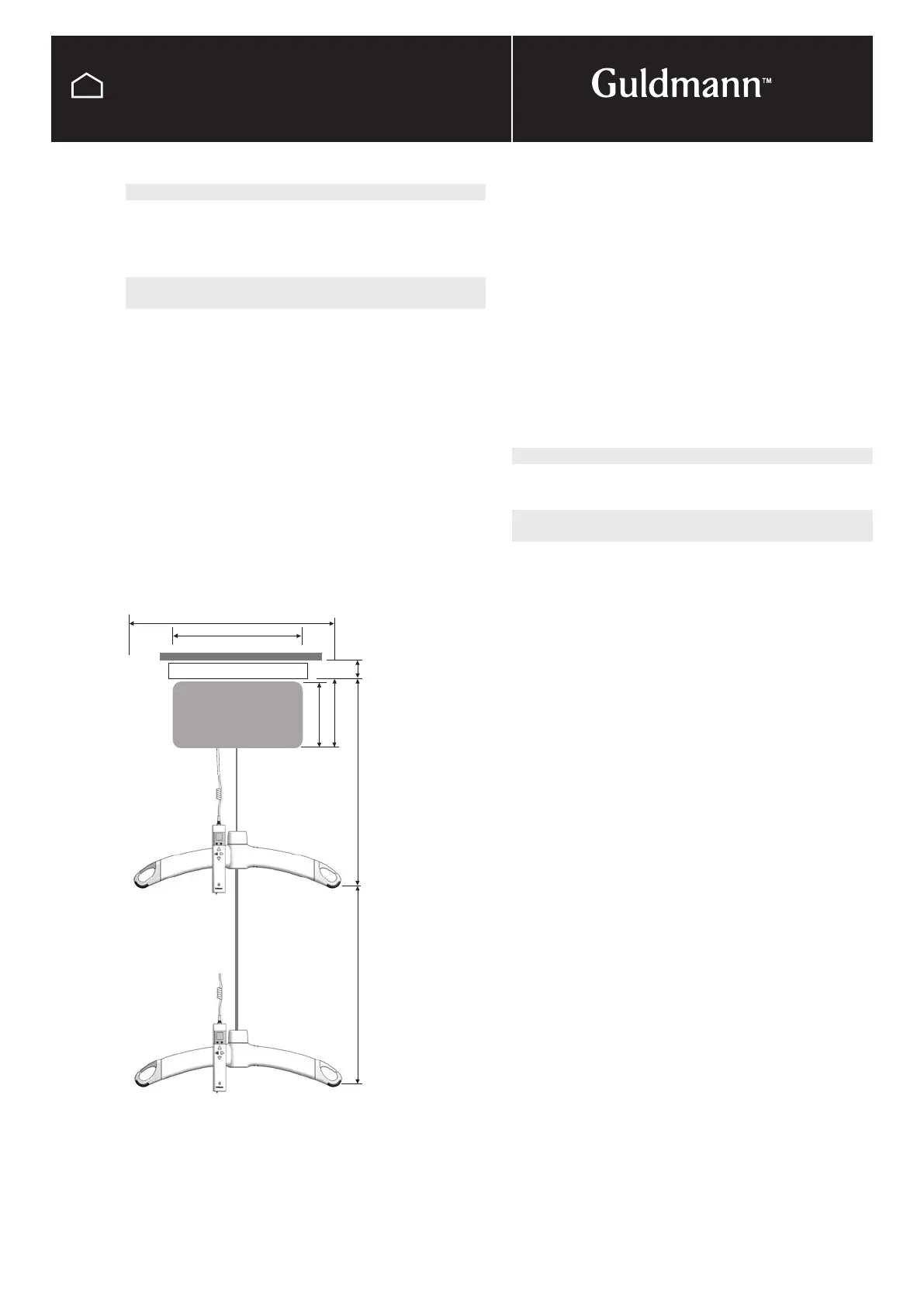

Dimensions
A : 580 mm (22
3
/4”)
B : 345 mm (13
3
/4”)
C : 156 mm (6
1
/4”)
D : 184 mm (7
1
/4”)
E, min : 83,5 mm (3
1
/4”)
F, min : 445 mm (17
1
/2”)
G : 2.500 mm (98”)
Depth of hoist : 205 mm (8
1
/4”)
Functions
Operation : Hand control / IR
Sound level : 52 dB (A)
Horizontal speed : 300 mm/sec. (11
3
/4”/sec.)
(Horizontal drive motor)
Safety
Emergency stop : Yes
Emergency lowering
device : Yes, mechanical and electrical
Control of lifting strap : Yes
Cut-off angle : 45° along the rail
10° across the rail
Electronics
On/off : Automatic when used. Soft start/stop.
Overload protection.
SWL : 200 kg (440 inch), 250 kg (550 lbs)
Battery : 1 x 24 V NiMH, 2.8 Ah
Max charge time : 2 hours
SWL : 300 kg (660 lbs), 350 kg (770 lbs),
375 kg (825 lbs)
Battery : 2 x 24 V NiMH, 2.8 Ah
Max charge time : 4 hours
Battery protection : At battery voltage below 22 V the
indicator light turns orange. The hoist
stops if the voltage falls below 20 V
Power supply : 33 V AC, 2.5 A
Supply voltage,
transformer : 100-115/230V AC, 50-60 Hz,
0.5 A(T)/1.0 A(T)
Protection classification (IP) according to IEC 60529
Lifting module : IP 20
Hand control : IP 44
Remote control : IP 20
Transformer : IP 20
Labelling
The product is manufactured in compliance with the Council
Directive 93/42/EEC of June 14th 1993, including amendments, as
medical device class 1.
Classification
Pursuant to ISO 9999
Patents : PA 2008 00888
PA 2008 00894
PA 2008 00895
