Guldmann GH - Replacing the Lifting Strap

© Guldmann GB/US-09/2016 • #550376_3
75
SERVICE AND REPAIR

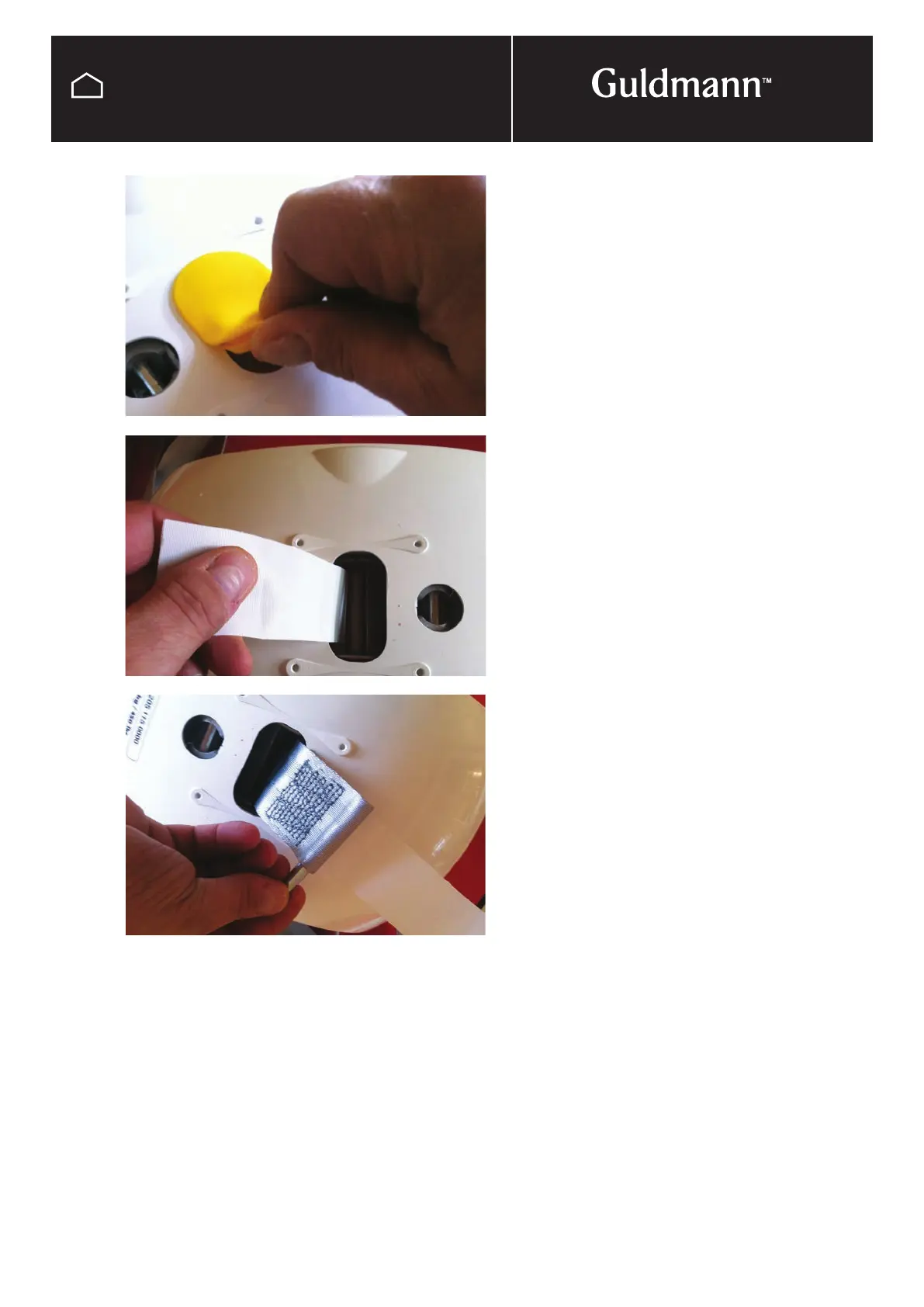

After removing the hoist from the traveling trolley you can
then remove the large oval yellow rubber grommet, located
in the center of the top cover.
Completely lower the strap to reveal the white tag attached
to lifting strap.
Pull on the white tag to reveal the grey lifting strap. Remove
pin located in the strap fold.
GH1
Replacing the lifting strap
