SERVICE AND REPAIR

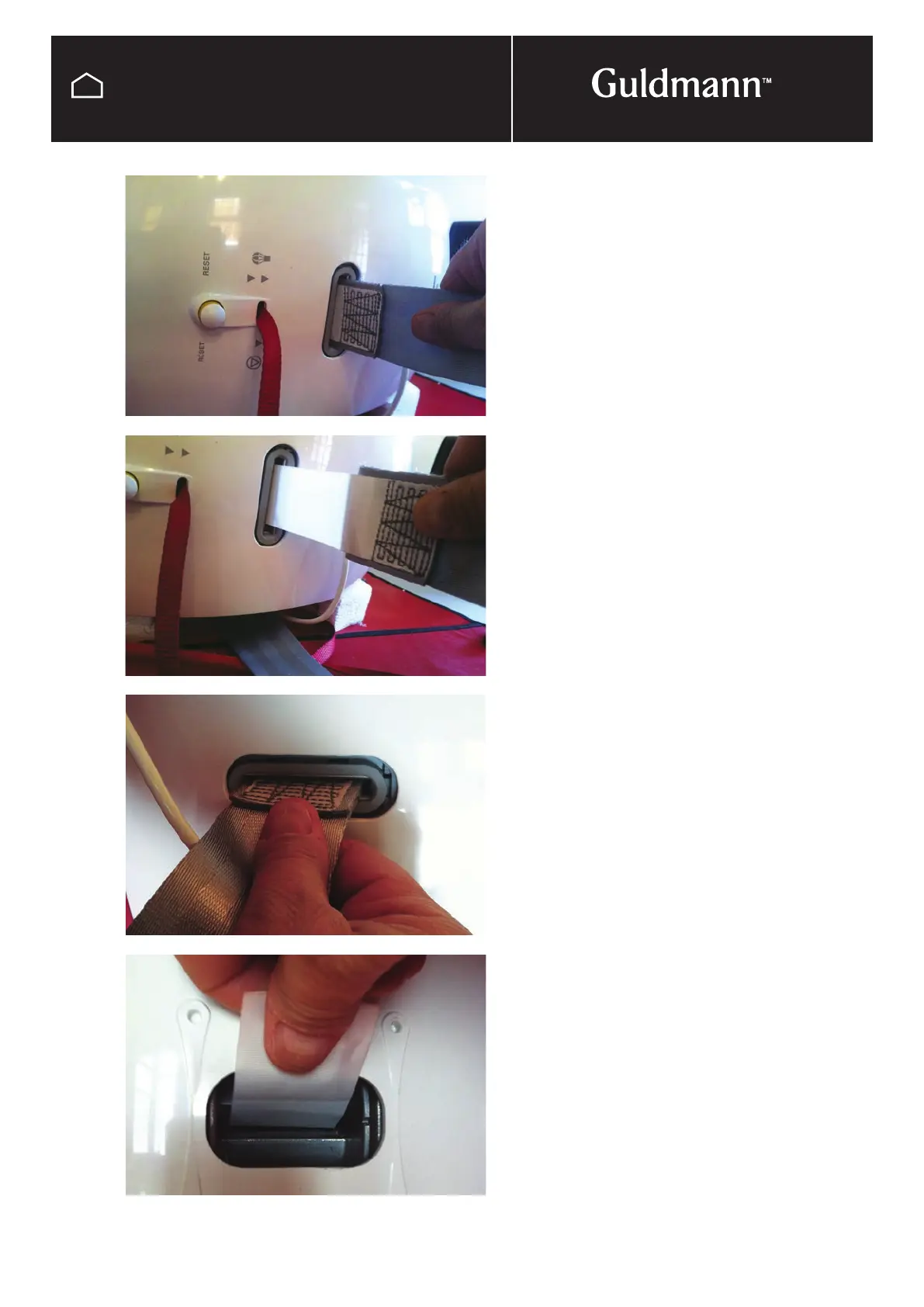

Pull out strap from bottom of hoist.
Take the white tag attached to the new lifting strap and
guide it through the strap wheel, this can only be done if
the slot on the strap wheel is inline top and bottom.
NOTE: It is important to mount the lifting strap correctly,
Place the strap with the fold turned away from the L.E.D
going in from bottom of hoist.
Pull out white tag from top of hoist to reveal grey lifting
strap, replace pin in fold and pull strap from bottom of
hoist to locate correct position of strap in wheel.
GH1
Replacing the lifting strap
