SERVICE AND REPAIR
GH1
Replacing belt drive
To replace the belt drive, pull emergency cord to turn off
hoist, take covers off and disconnect battery.
Note: it is important to always use a antistatic mat and
wrist band when working inside the hoist.

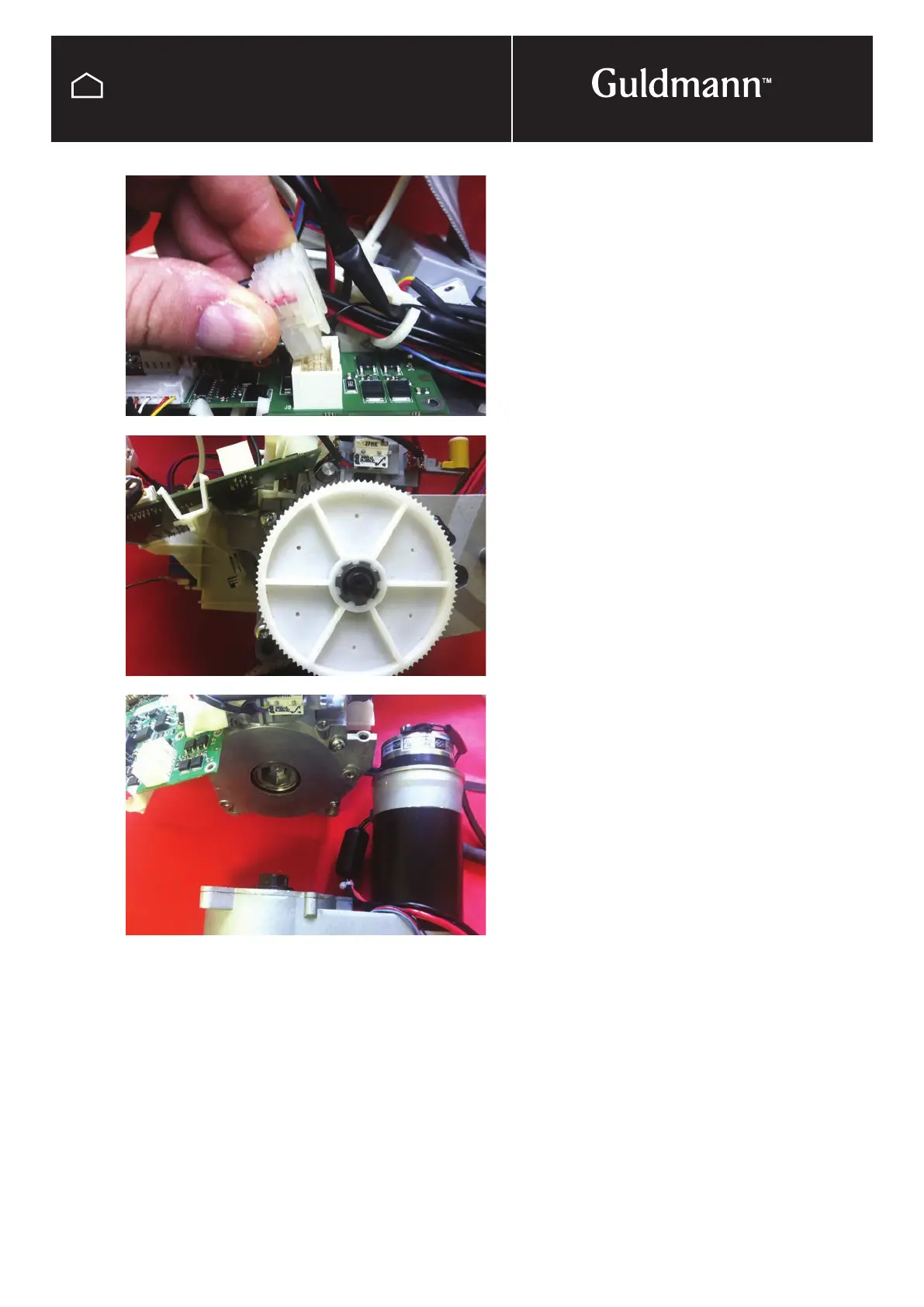

Unplug all wires from motor to PCB and remove them from
cable stay.
Locate the three fixing points and remove screws
Disconnect belt drive from strap winding assembly.
