Guldmann GH - Replacement or Adjustment of Hand Control

© Guldmann GB/US-09/2016 • #550376_3
29
SERVICE AND REPAIR
GH3
Replacement or adjustment of hand control

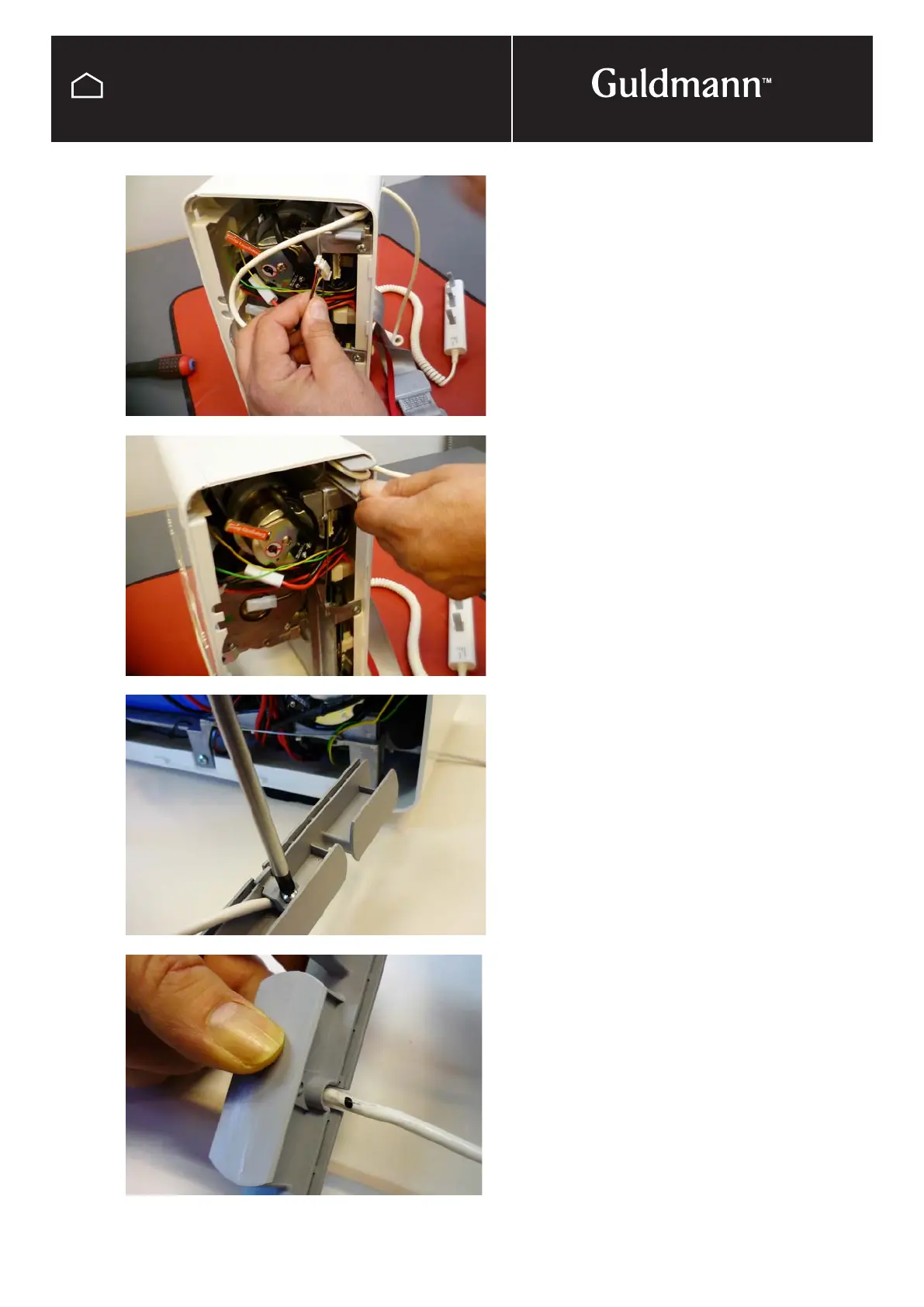

Removing hand control
Unplug the hand control and pull out the wire reservoir
from the hoist.
Unwind the hand control cable. Take out the screw from
the cable clamp. Remove cable from reservoir and replace
with new hand control.
Making sure to mark the cable length so that it can be
transferred to the replacement hand control.
